4. Place the assembly in a safe place away from direct sources of heat and light.
5. Pull the locking levers at each side of the transfer belt up and towards the front of
the machine.

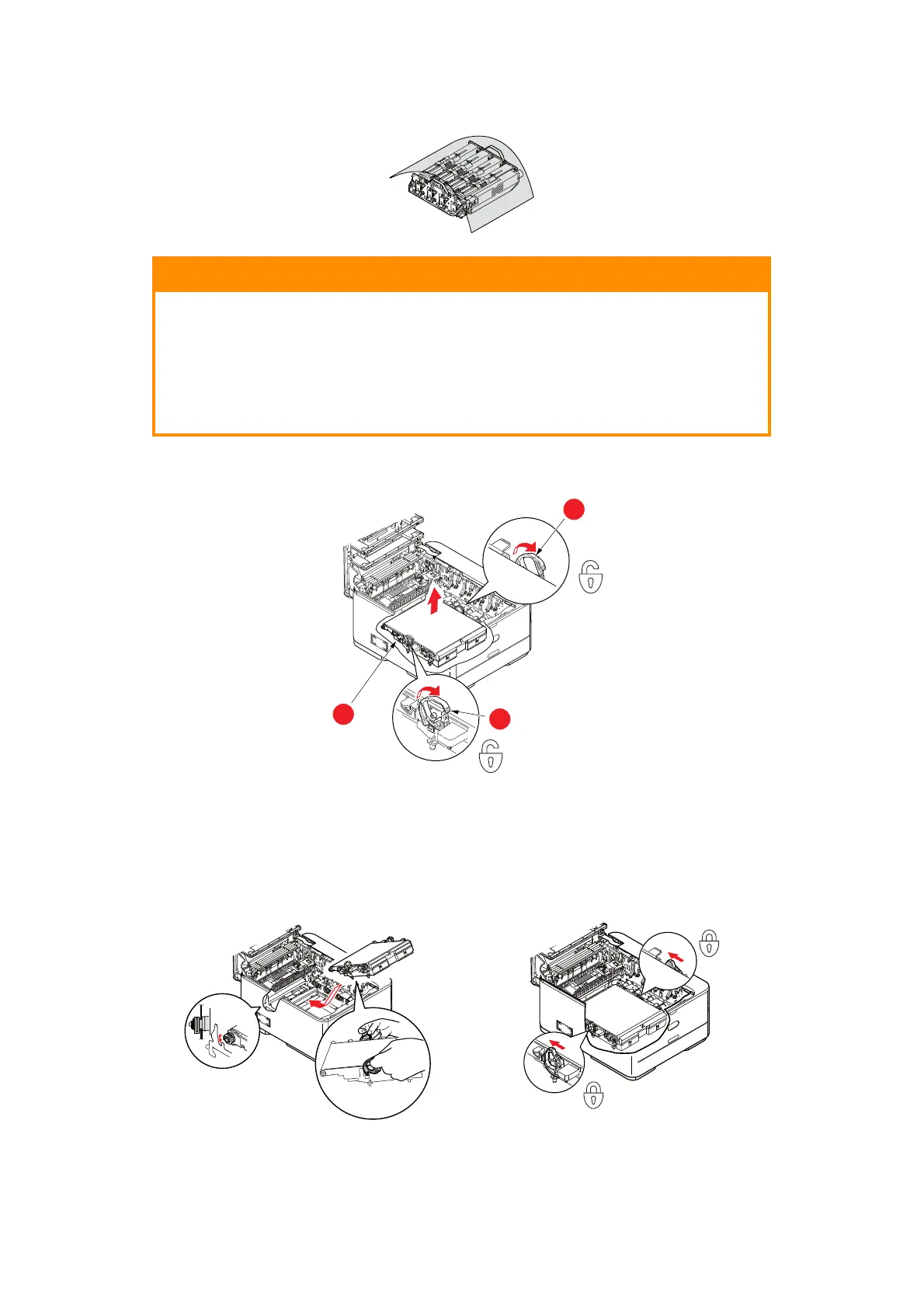

6. Using the locking levers (a), lift the belt (b) upwards and withdraw from the
machine.
7. Lower the new belt unit into place, with the drive gear towards the rear of the
printer. Locate the drive gear into the gear inside the printer by the rear right corner
of the unit, and lower the belt unit flat inside the printer.
8. Push the locking levers towards the rear of the machine. This will secure the belt
unit in place.
CAUTION!
The green image drum surface at the base of each cartridge is very
delicate and light sensitive. Do not touch it and do not expose it to
normal room light for more than 5 minutes. If the drum unit needs
to be out of the printer for longer than this, please wrap the
cartridge inside a black plastic bag to keep it away from light.
Never expose the drum to direct sunlight or very bright room
lighting.
