4 Equipment Overview
UNO-T

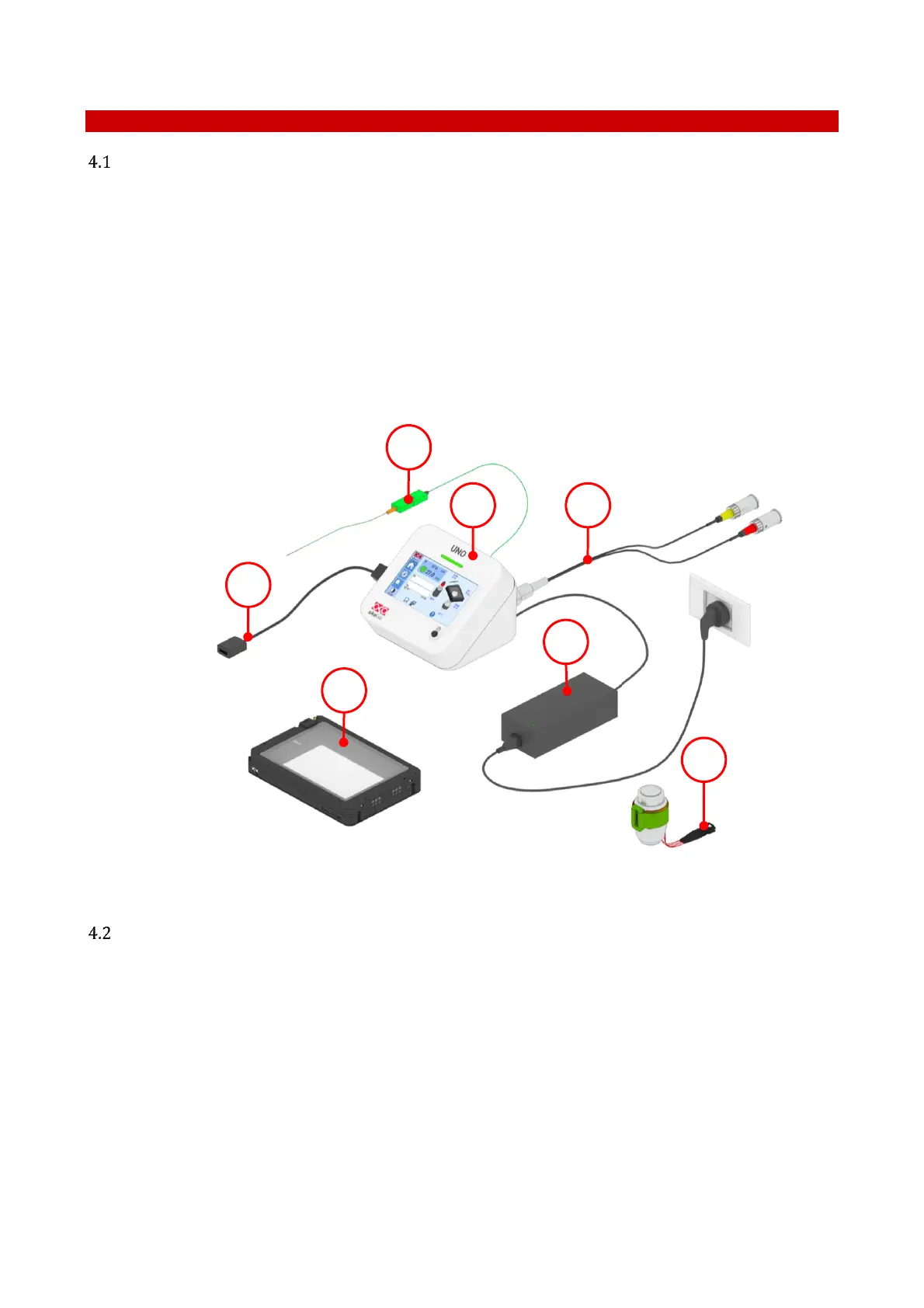

Figure 1 illustrates the equipment overview for UNO-T configuration:
1. UNO-CONTROLLER (x1), temperature controller
2. Y-CABLE-1 (x1). To connect chamber’s base and lid to the temperature controller.
3. 24V-DC Power Adapter (x1).
4. OBJ-COLLAR (optional)
5. Okolab H301 incubating chamber (required, to be ordered separately).
6. MINI-USB-OTG cable (x1). To connect a USB pen to the temperature controller for data download.
7. Temperature Sensor (T Sensor) and extension (x1).
1
4
3
5
2
6
7
Figure 1. UNO-T Equipment Overview.
UNO-T-H-PREMIXED
Figure 2 illustrates the equipment overview for UNO-T-H-PREMIXED configuration:
1. UNO-CONTROLLER (x1), temperature controller
2. Y-CABLE-2 (x1). To connect the Humidifier and the Heated tube to the temperature controller.
3. Y-CABLE-1 (x1). To connect chamber’s base and lid to the temperature controller.
4. 24V-DC Power Adapter (x1).
5. MINI-USB-OTG cable (x1). To connect a USB pen to the temperature controller for data download.
6. Temperature Sensor (T Sensor) and extension (x1).
7. TUBE-A (x1). Transparent rigid tube 6mm O.D.. Use TUBE-A to connect the premixed gas supply to the gas
input of the Gf-REGULATOR.
