3-2. Connecting the Cables
You can connect up the cables required for printing to the printer.

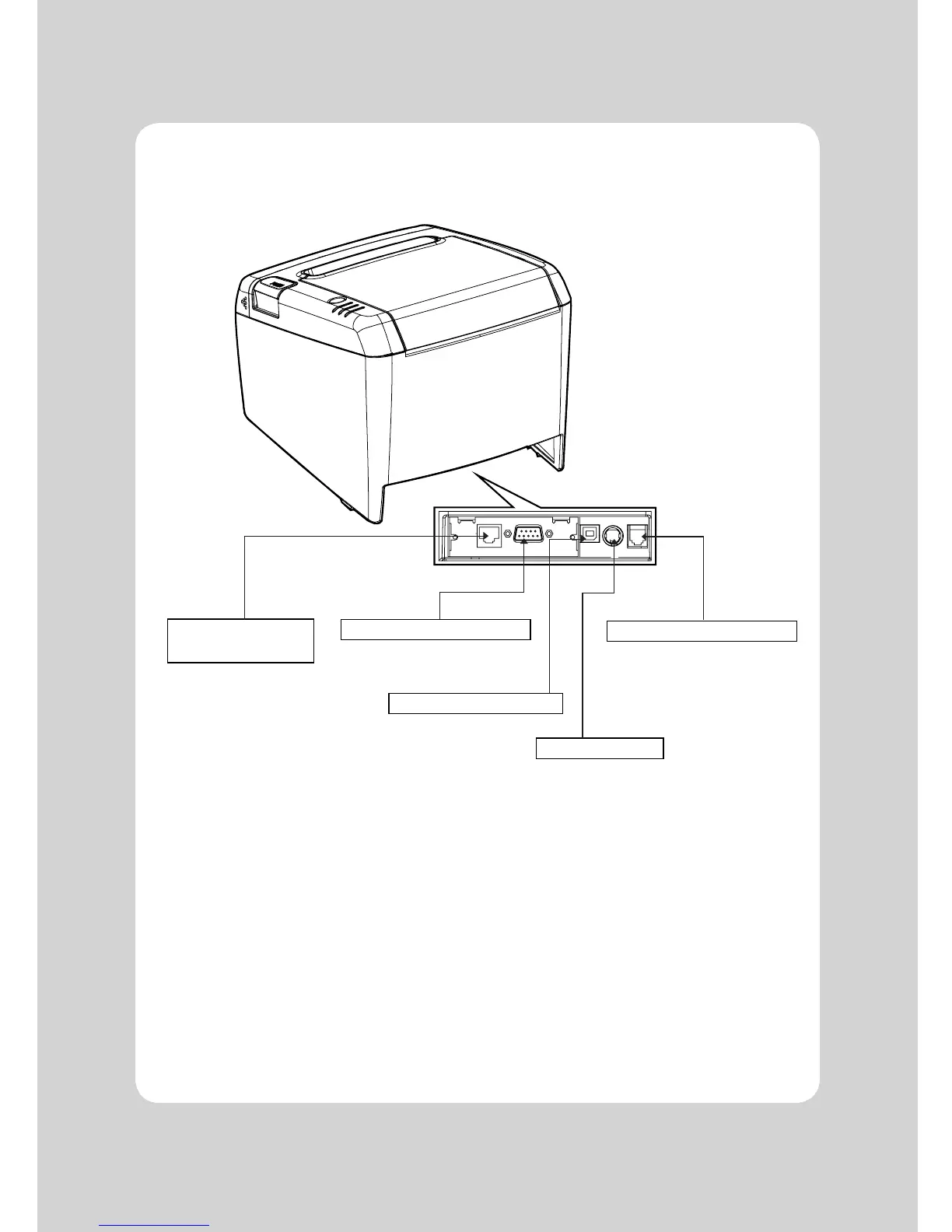

They all connect to the connector panel on the back of the printer, which is shown below :
Before connecting any of the cables, make sure that both the printer and the computer are turned off.
For connection to a
host computer.
For connection to a
host computer.
For connection to a
host computer.
Connects to peripheral units
such as cash drawers, etc.
Do not connect this to
a telephone.
INTERFACE CONNECTOR
(RJ45 MODULAR SERIAL)
INTERFACE CONNECTOR(SERIAL)
INTERFACE CONNECTOR(USB)
PERIPHERAL DRIVE CONNECTOR
POWER CONNECTOR
For connection of the
AC adapter.
Never unplug the AC
adapter while the
printer is on.
