Oldfield Treco 63 - Step 4: Gable and Rail Installation

15

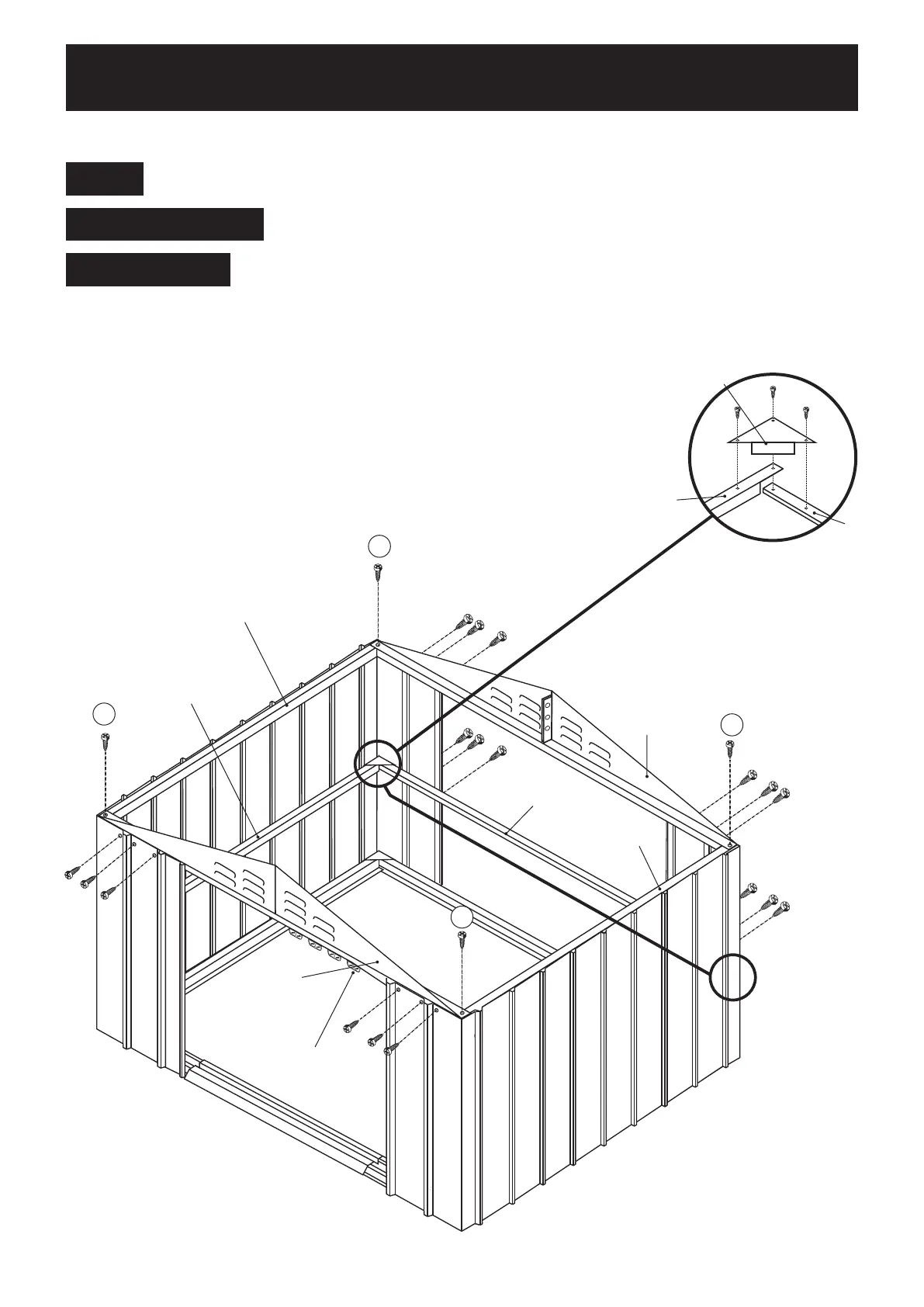

INSTALLING ROOF GABLES, FRONT & BACK MID-WALL RAILS & DOOR JAMBS
Corner Gussets
Gables
Back Mid-Wall Rail
1. Fix with 'X12's the
front and back gables to the corner
panels 'F'. Fix with 'X12's through the top rail 'H' and
gable for each corner.
2. Fix back mid-wall rail 'GA' to each back corner panel 'F'.
3.
Fix 2 x 'X20' corner gussets (brackets) to each back side
mid-wall rail 'HA' with back mid-wall rail 'GA'.
GA
X20
GA
H
HA
Front
Gable
Back
Gable
Note: 'X20'
corner brackets
are only fixed to
back base rail
and back mid-
wall frames.
HA
H
Door Glide
3
2
1
3
2
1
3
2
1
3
2
1
3
2
1
3
2
1
STEP 4
4
4
4
4
