Oldfield Treco 63 - Step 1: Pre-Assembly; Gables, Roof Beams, and Base Rail Assembly

X6
X9
I
Door Glide (x4)
X9
X6
Inside
of Shed
Outside
of Shed
INSIDE
OF SHED
X9
X6
I
X12
X13A
X26
X13B
O
N
I
X6 + X9
Door
Glide

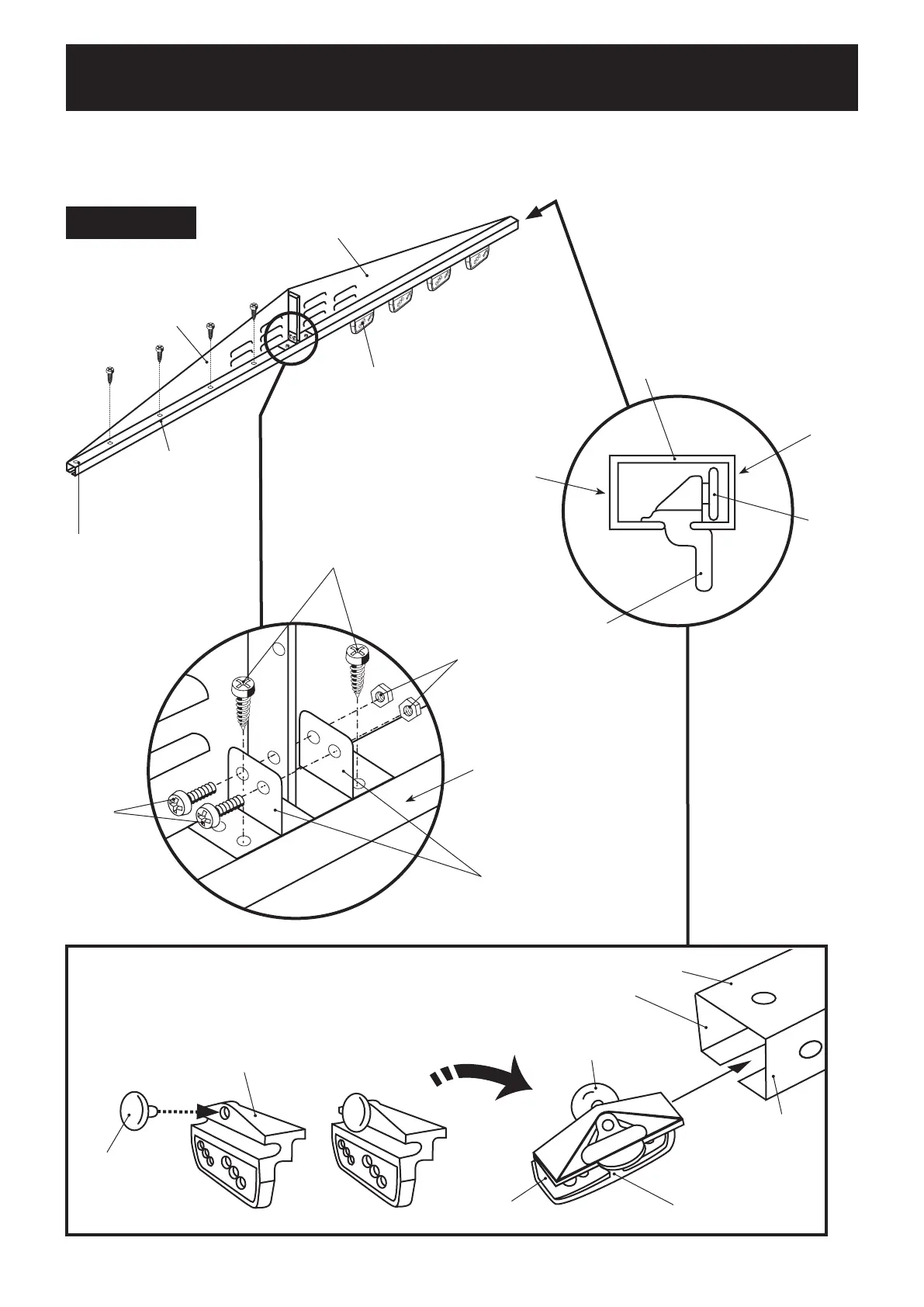

1. Insert 'X9' into 'X6' as shown and repeat 4
times to cr
eate 4 x 'Door Glide'.
2.
Insert 4 x 'Door Glide' into part 'I' as shown.
Front Gable
PRE-ASSEMBLE FRONT AND BACK GABLES, ROOF BEAMS AND FRONT
BASE RAIL - BEFORE ERECTING SHED.
STEP 1
8
Note: Do not fix
'X12' to end holes
Outside of shed
'I' has holes for
wall panel
'I' has no holes
facing inside of shed
