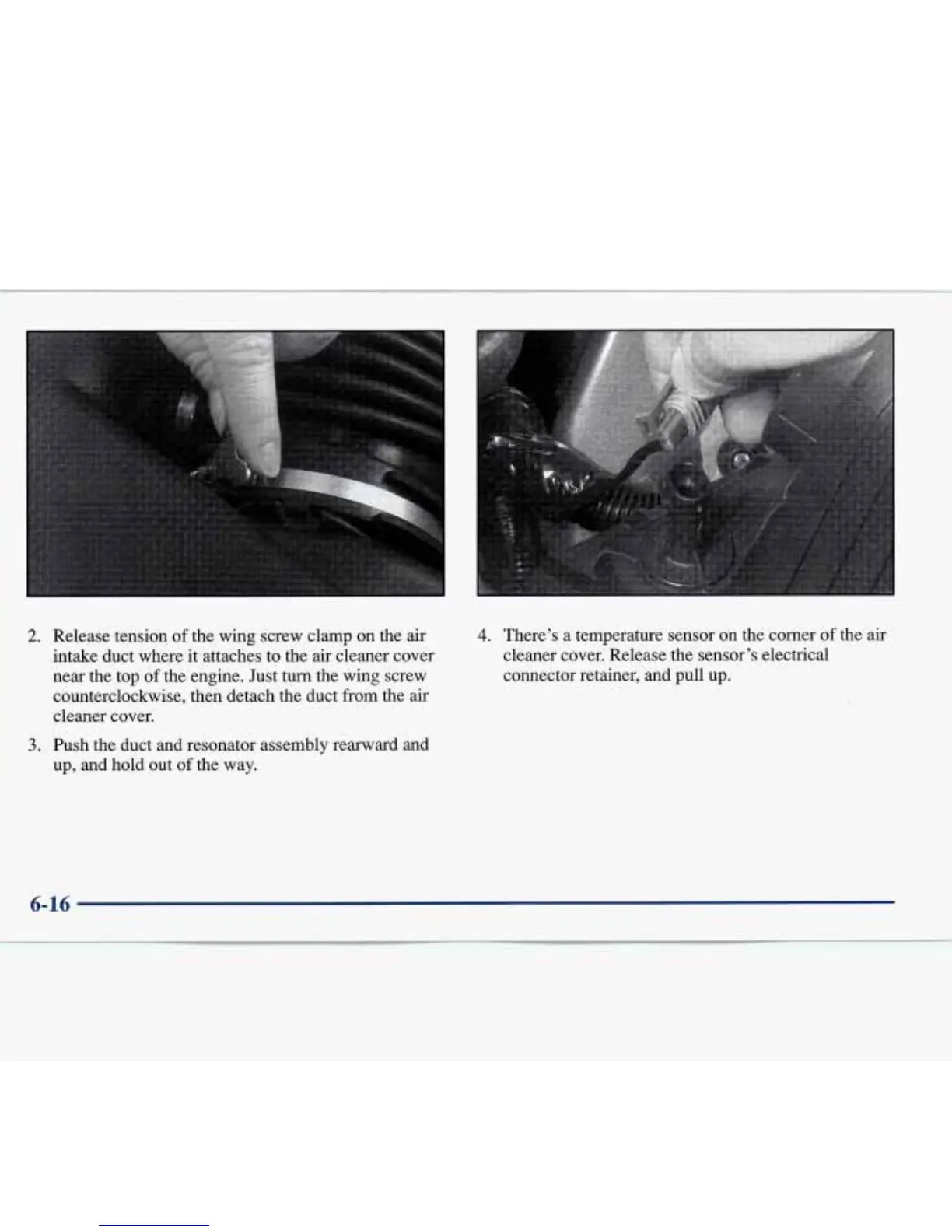

2.
Release tension of the wing screw clamp on the air
intake duct where it attaches to the
air
cleaner cover
near the top
of
the engine. Just turn the
wing
screw
counterclockwise, then detach the duct from the air
cleaner cover.
3.
Push the duct and resonator assembly rearward and
up, and hold out
of
the way.
4.
There’s a temperature sensor on the corner
of
the
air
cleaner cover. Release the sensor’s electrical
connector retainer, and pull up.
6-16
