Installation Instructions
Mounting Holes

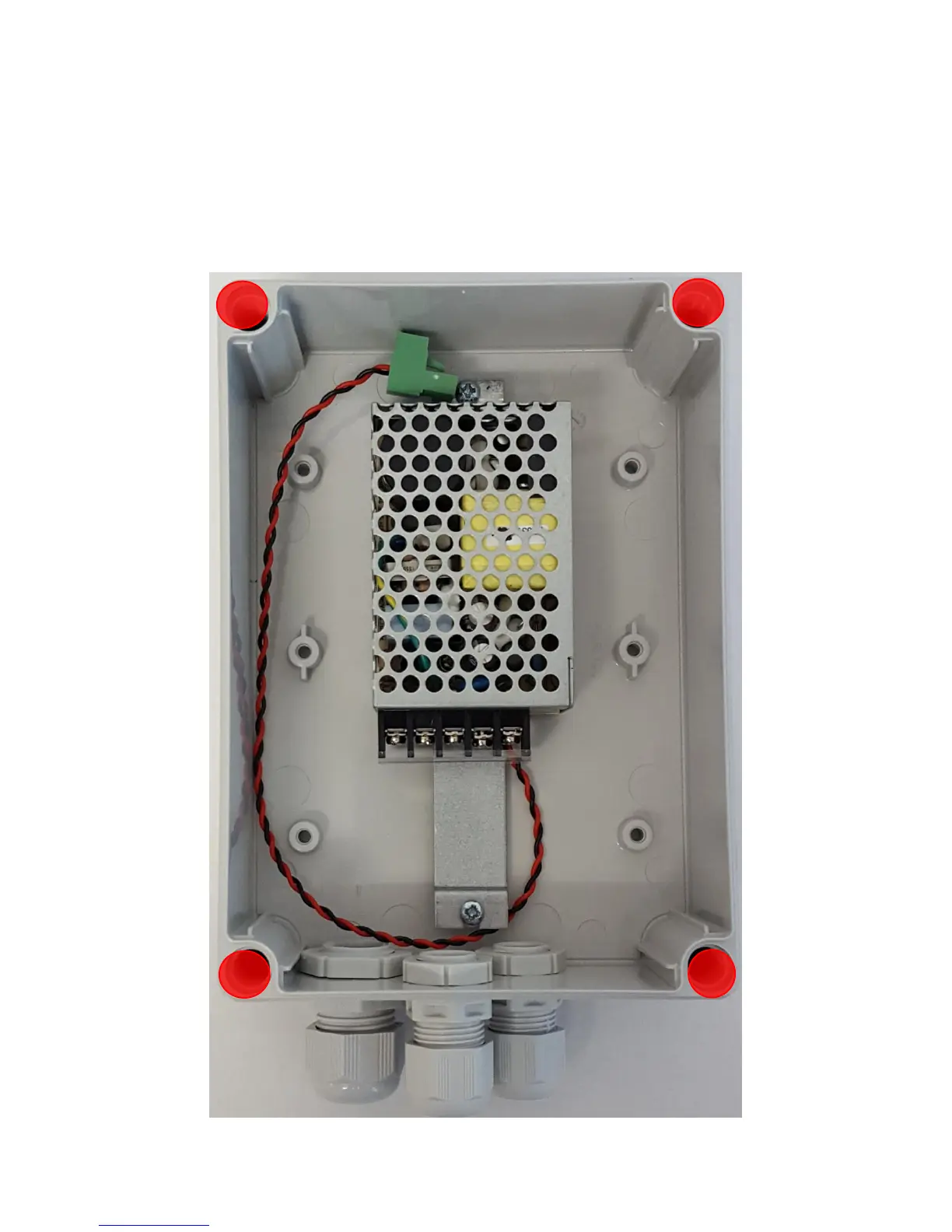

There are 4 mounting holes in the base of the unit (indicated with the Red Circles).
These are located behind the front panel screws
The distance between mounting holes is 110mm wide X 160mm high.
