Ole C2020 - Power Input; Output Connections; Probes

Page 5 of 11

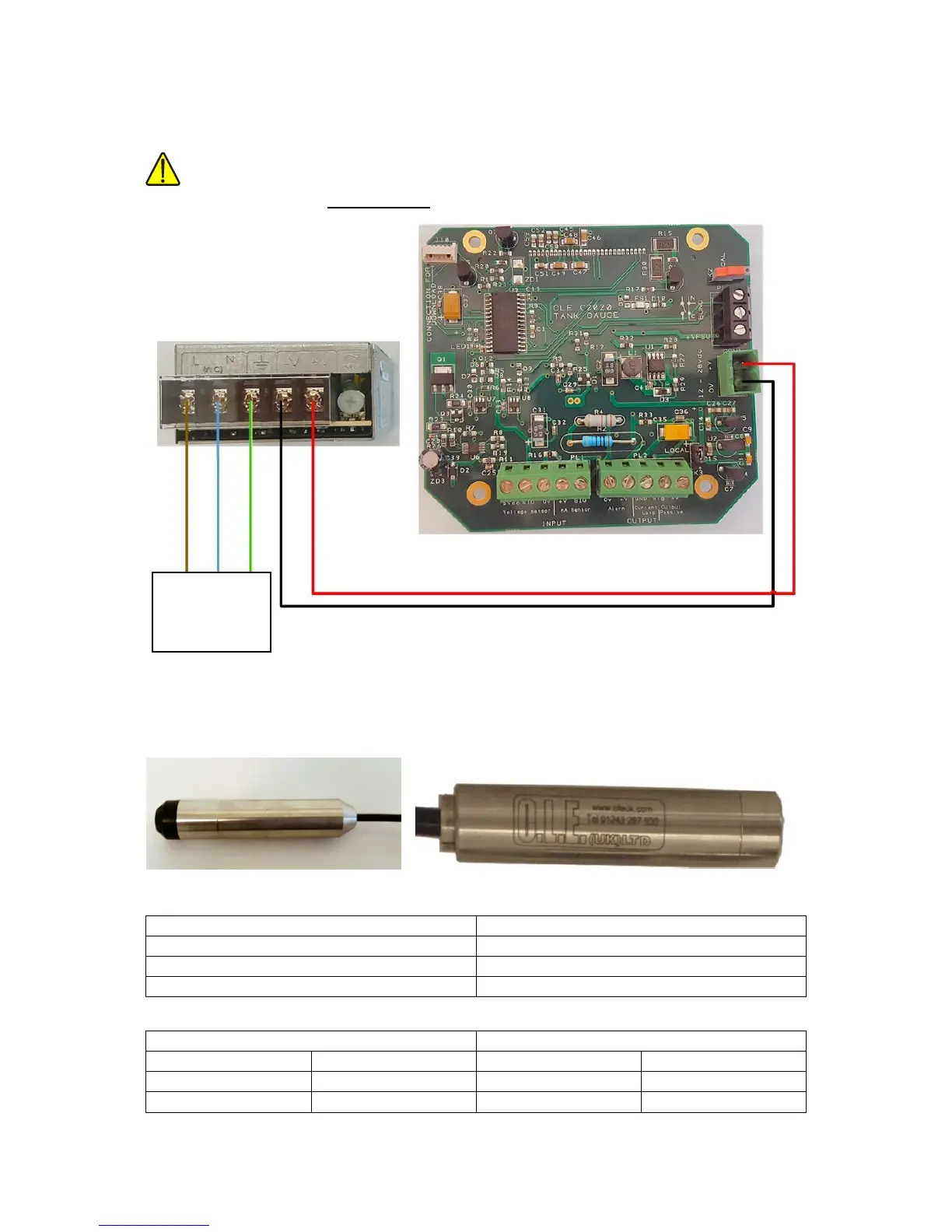

Power Input / Output Connections
WARNING
Before applying the power, DOUBLE CHECK all the connections to the inputs and outputs.
Probes
New Probes Legacy Probes
New Probes
Legacy Probes
C23 = 3.0m Sensor with 10m of cable
C22 = 2.5m Sensor
C25 = 5.0m Sensor with 10m of cable
C27 = 10.0m Sensor with 10m of cable
New Probes – Wire Colours
Legacy Probes – Wire Colours
Brown
+V
Red
+V
Green
Signal
Yellow
Signal
White
0V
Black
0V
100 – 240v AC
Maximum
Current - 0.7A
