Ole C2020 - Gauge Configuration

Page 6 of 11

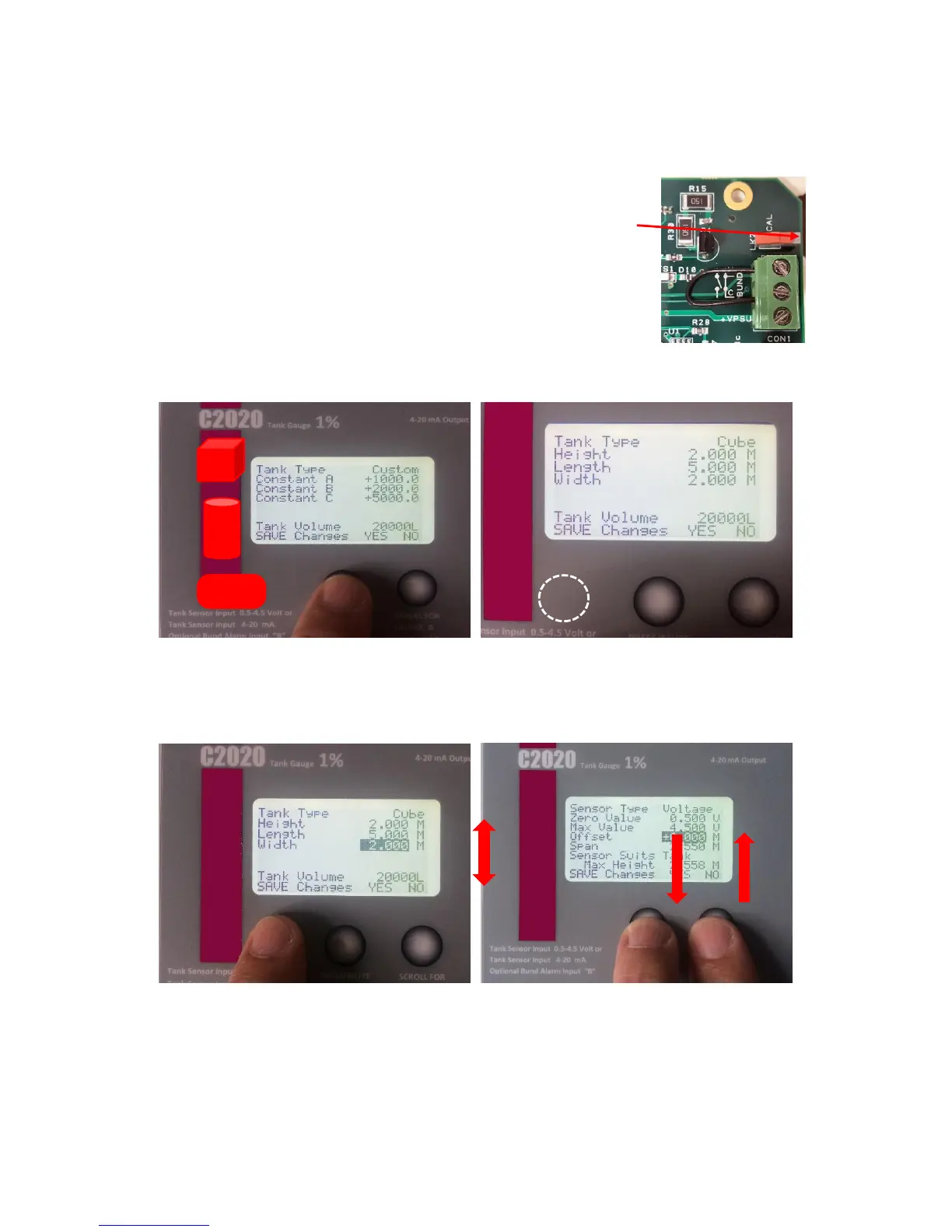

Gauge Configuration.
To Calibrate the Gauge, Open the front cover 4 screws, Connect the Tank Probe, and Power the unit.
Toggle the Calibration switch, located top right of the C2020 PCB, marked
Cal (LK2)
1. First screen to show is a “Cube” Tank.
The middle Button scrolls through the
Tank Type Options.
2. Use the “Hidden” Button to scroll
through
the settings.
3. Choose the feature you require, then set the values by using the “Hidden” Button to
select the value to change, then use the other two buttons to Decrease (LEFT) or Increase
(RIGHT) the value.
HIDDEN BUTTON
