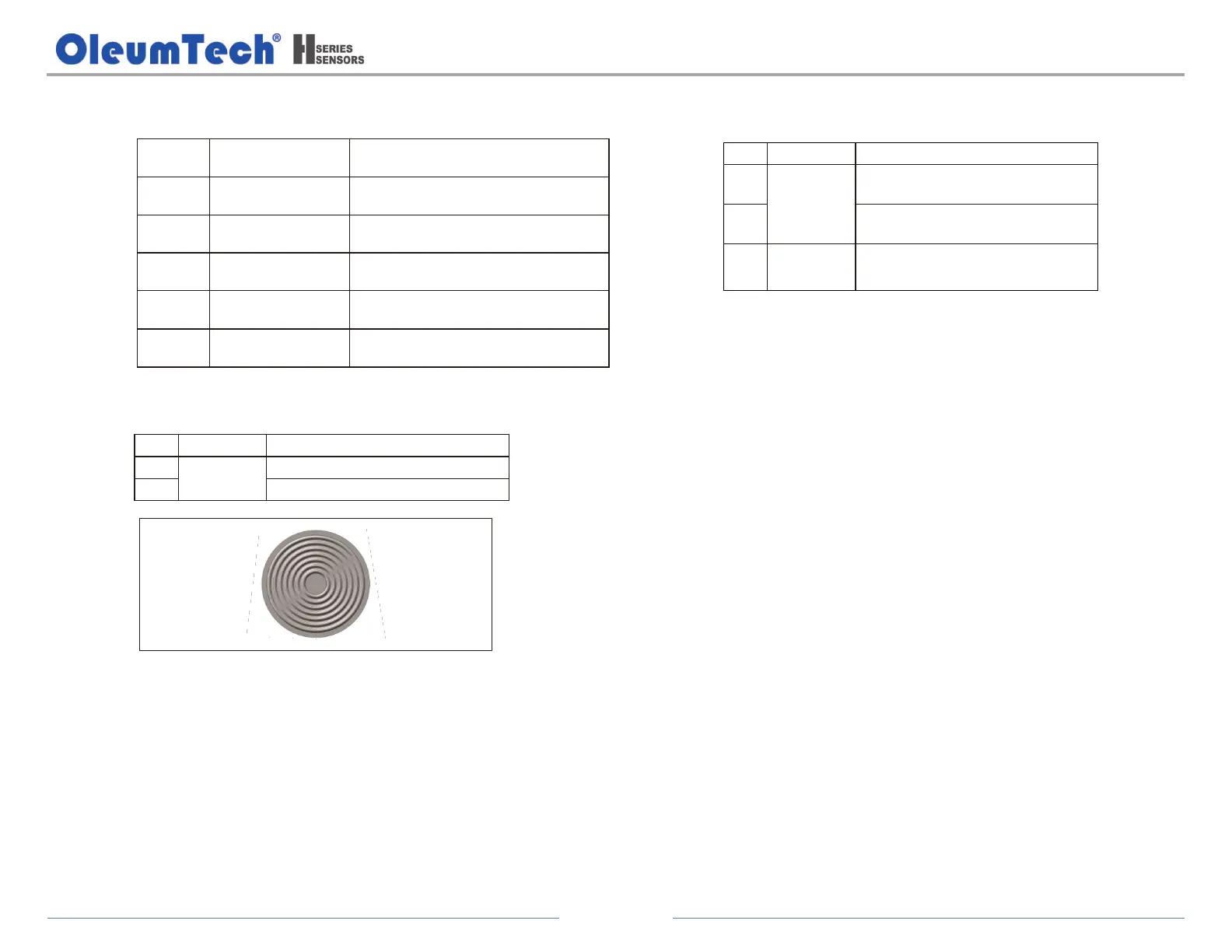

DIFFERENTIAL PRESSURE TRANSMITTER - USER GUIDE
b. Sensor Selection Table
Code
Nominal
Value
Description
HDPT0005
5 PSI (138 inH2O)
Range -5 to 5 PSI (-138 to 138 inH2O),
smallest calibratable span 0.05 PSI
HDPT0030
30 PSI (830 inH2O)
Range -30 to 30 PSI (-830 to 830 inH2O),
smallest calibratable span 0.3 PSI
HDPT0150
150 PSI (4152 inH2O)
Range -150 to 150 PSI (-4152 to 4152
inH2O),
HDPT0400
400 PSI (11072 inH2O)
Range -400 to 400 PSI (-11072 to 11072
inH2O), smallest calibratable span 4 PSI
HDPT1500
1500 PSI (41520 inH2O)
Range -435 to 1500 PSI (-12041 to 41520
inH2O), smallest calibratable span 15 PSI
c. Diaphragm
d. Sensor Filling Fluid and Sensor Seal
e. Housing Type
Aluminum-alloy terminal, 2 cable entry 1/2” NPT (F), 1 plug included
Code
Items
Description
H
Diaphragm
material
Hastelloy C
S
316L SS
Code
Items
Description
D
Fluid filling
Inert Oil Filling: -45 to 160 °C
(-49 to 320 °F)
S
Silicone Oil Filling: -45 to 205 °C
(-49 to 401 °F)
P
Sensor seal
FKM -20 to 200 °C
(-4 to 392 °F)
