DIFFERENTIAL PRESSURE TRANSMITTER - USER GUIDE
8. LOCAL LCD DISPLAY INTERFACE - RS485
1. LCD Function
The LCD-enabled transmitter provides a 3-button (1, 2, 3) local display
interface that allows the users to fully configure the device settings and
parameters.
The internal buttons are designed for use in non-hazardous locations,
whereas the external buttons are for use in hazardous locations.
The 3-button interface is located on both the LCD Module (internal) and on
top of the enclosure (external) accessible by pivoting the metal plate
cover.

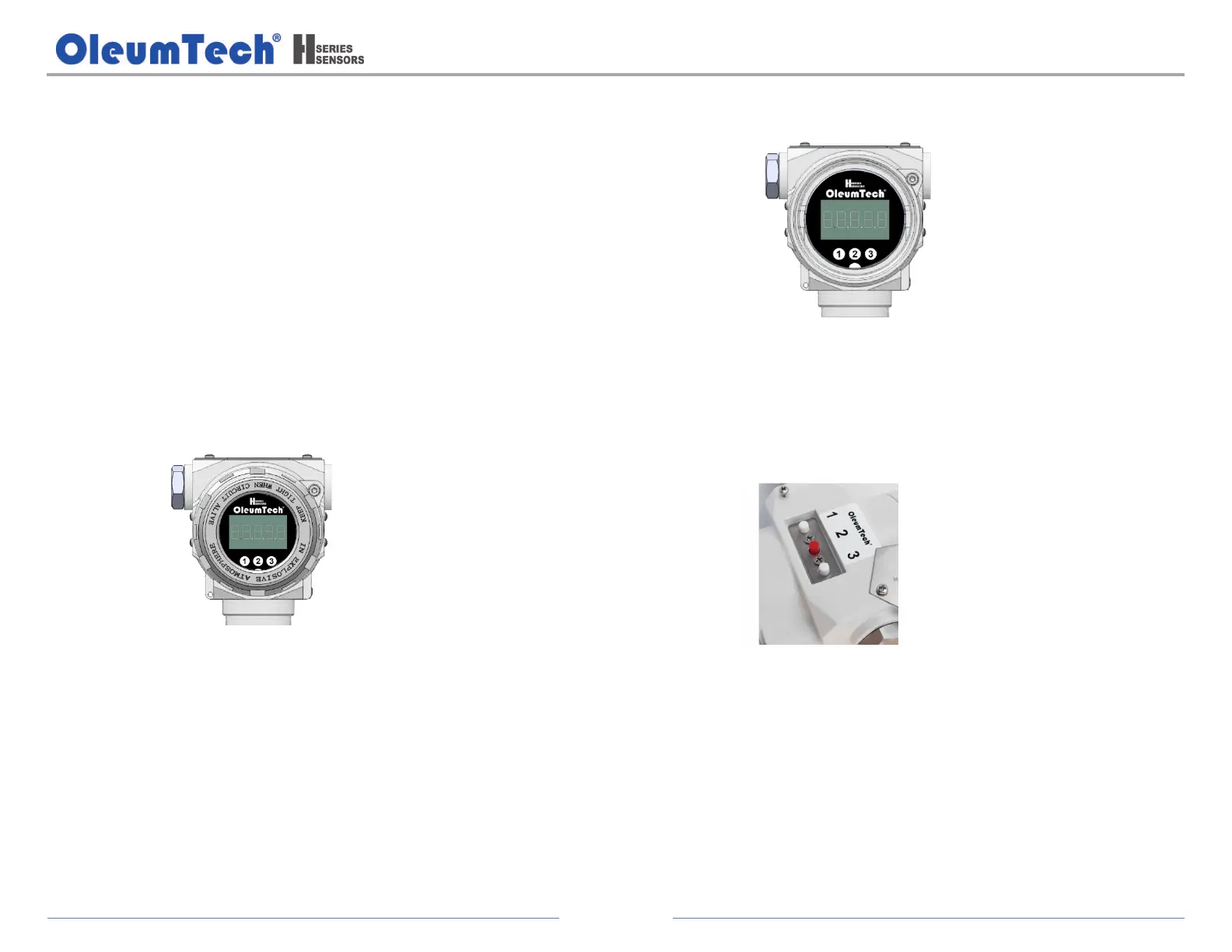

a. Local LCD Display Interface:
The backlit local LCD display is always on for providing instant
process data and configuration accessibility.
b. Operation in Non-Hazardous Locations:
The internal buttons located on the LCD Module can be used in
safe areas.
c. Operation in Hazardous Locations:
The external buttons are located on top of the enclosure
accessible underneath the metal plate cover.
