DIFFERENTIAL PRESSURE TRANSMITTER - USER GUIDE

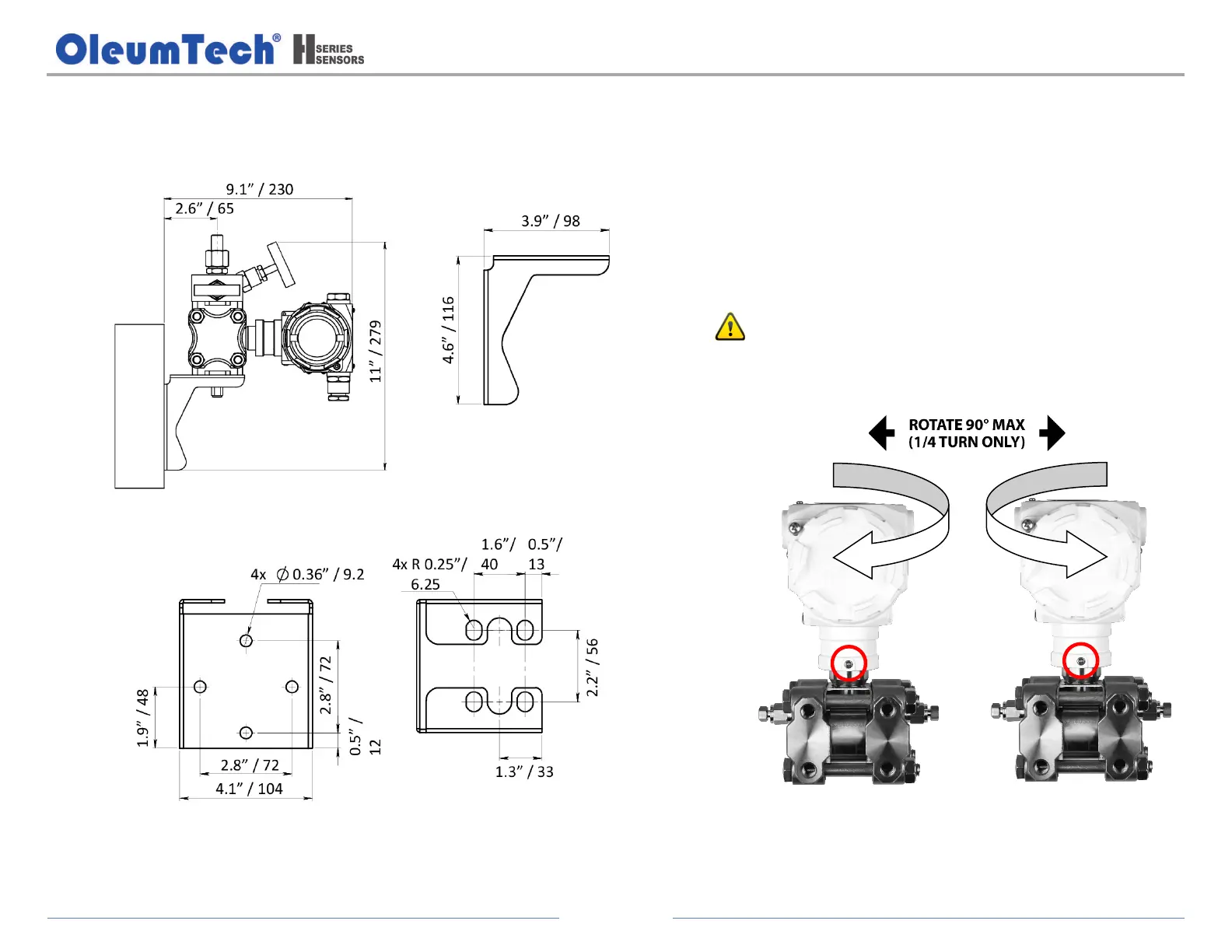

b. Wall or 2” Pipe Mounting Kit (inches / mm).
Part number: SX1000-MK10
c. Housing Rotation
To improve field wiring access or provide better viewing of the LCD
display, the housing and sensor can be slightly rotated from each
other.
1. Use a 3 mm hex wrench to loosen the set screw to rotate the
housing.
2. Do not rotate the housing by more than 90° max (1/4 turn
only) to the left or right from its original position.
3. Over-rotating can damage the transmitter. A loose housing to
sensor connection may cause water ingress issues.
4. Must tighten the set screw after making the adjustment.
