OleumTech H Series - Wiring Configurations; b. 1-5 V Wiring; c. 4-20 mA Wiring

Page 25
DIFFERENTIAL PRESSURE TRANSMITTER - USER GUIDE

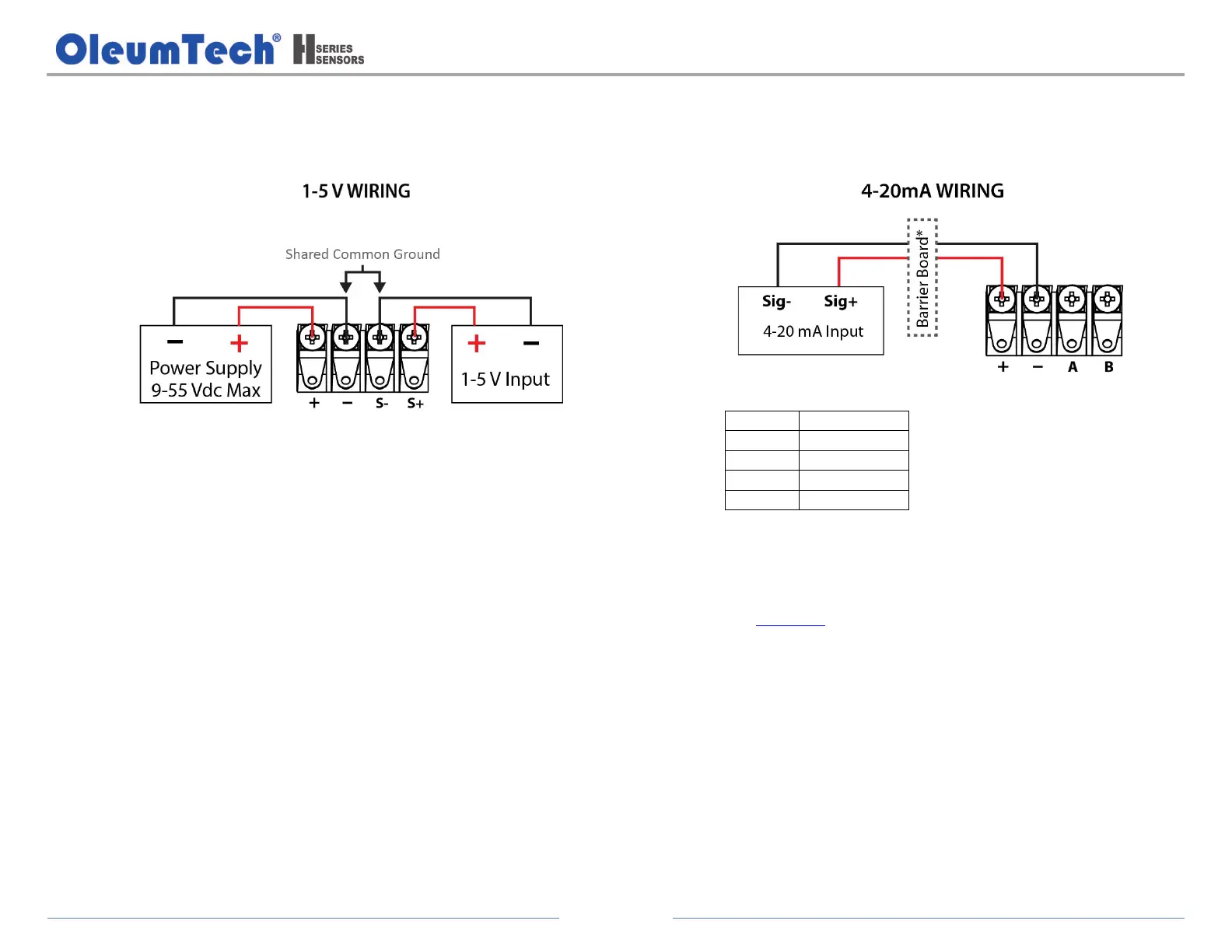

b. 1-5 V Wiring
c. 4-20 mA Wiring
*Barriers Boards are only required with Intrinsically Safe models
and not required for standard Explosion Proof models.
*Click here to view third-party barrier board reference for use
with this device (Only required with IS model option).
Terminal
2-Wire
+
Signal+
-
Signal-
A
N/A
B
N/A
