DIFFERENTIAL PRESSURE TRANSMITTER - USER GUIDE
3. Operating Instructions

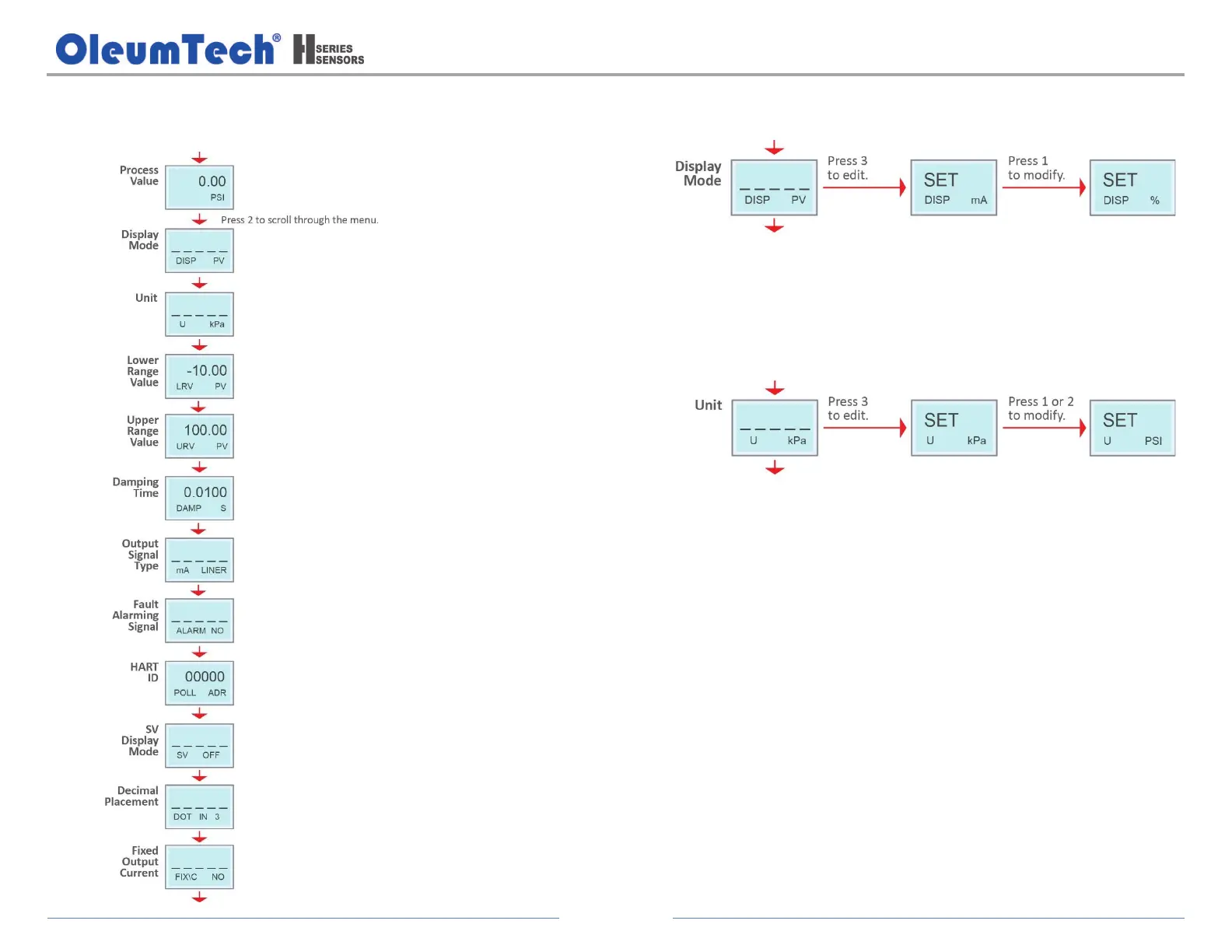

Use button 2 to scroll through the menu system
a. Configure the Display Mode.
Options:
% = Percentage, PV = Pressure Value (Default), mA = Current
b. Configure the Unit.
Options:
PSI (Default), kPa, MPa, bar, mmHg,
mmH2O, mH2O, inH2O, ftH2O,
inHg, mHg, TORR, Mbar, g/cm2,
kg/cm2, Pa, ATM, osi, mm, m
Options in the Advanced Menu System:
°C, °F (Default), K, m/s, kPa
