OLIMEX AgonLight2 - eZ80 Programming Connector

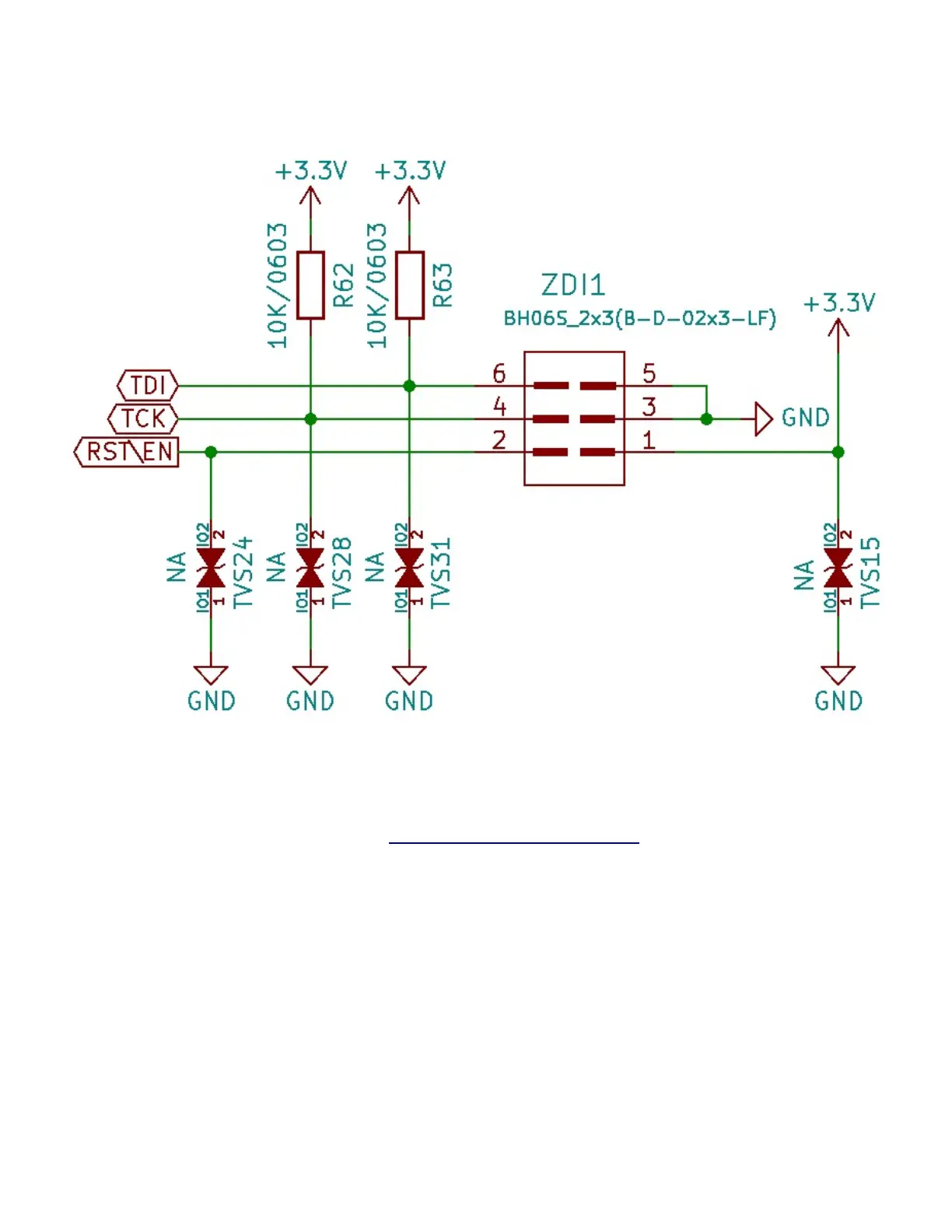

eZ80 programming connector
This connector is used for initial programming of eZ80 microcontroller. AgonLight2 comes with pre-
programmed firmware so you do not need to use this connector nor programmer for it.
If you want to develop your own firmware Jeroen Venema wrote flash utility which allows you to flash new
firmware without need of external programmer.
19
