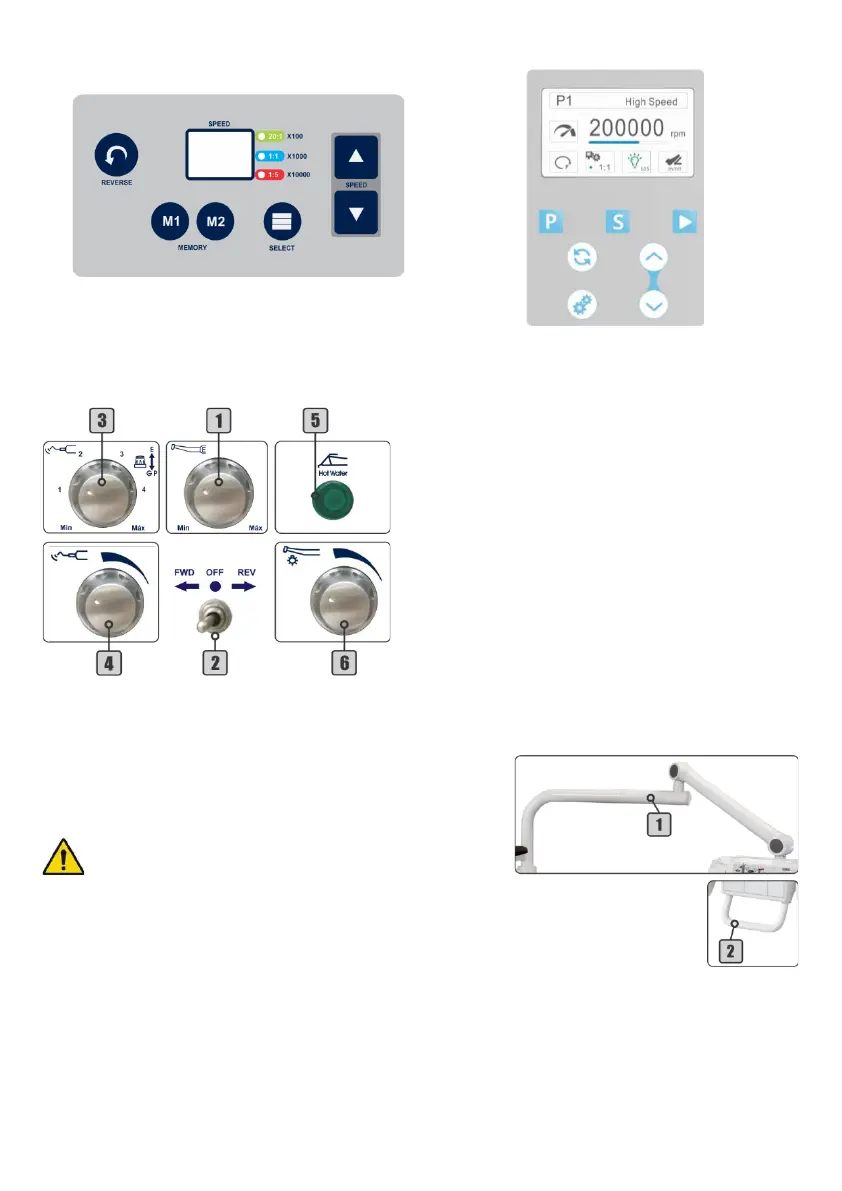

Instruments Control Panel (3):
Note: these controls are provided below the instrument to which they refer.
5.4.3 – Flex Arm
Features 2 articulations and pneumatic lock that are disabled
by touching the capacitive handle (2), allowing the working table
movement.
Do not move the table upright without disabling the
pneumatic brake. This may damage the flex arm locking
system.
Brushless Electrical Micromotor (Optional)
Description of controls in item 6.8.4
Description of controls in item 6.8.3
Brushless - Side Panel (Optional)
1 - Speed Adjustment for Electrical Micromotor
2 - Electrical Micromotor’s Rotation Direction Control
3 - Scaler Intensity Control and Function Selector -
General-Perio/Endo
4 - Scaler Water Control
5 – On/Off Indicator Led of Thermo Comfort System
6 - Optical Fiber Water Control
To Next Page
