5.4.2 - Logic Cross Flex Working Table

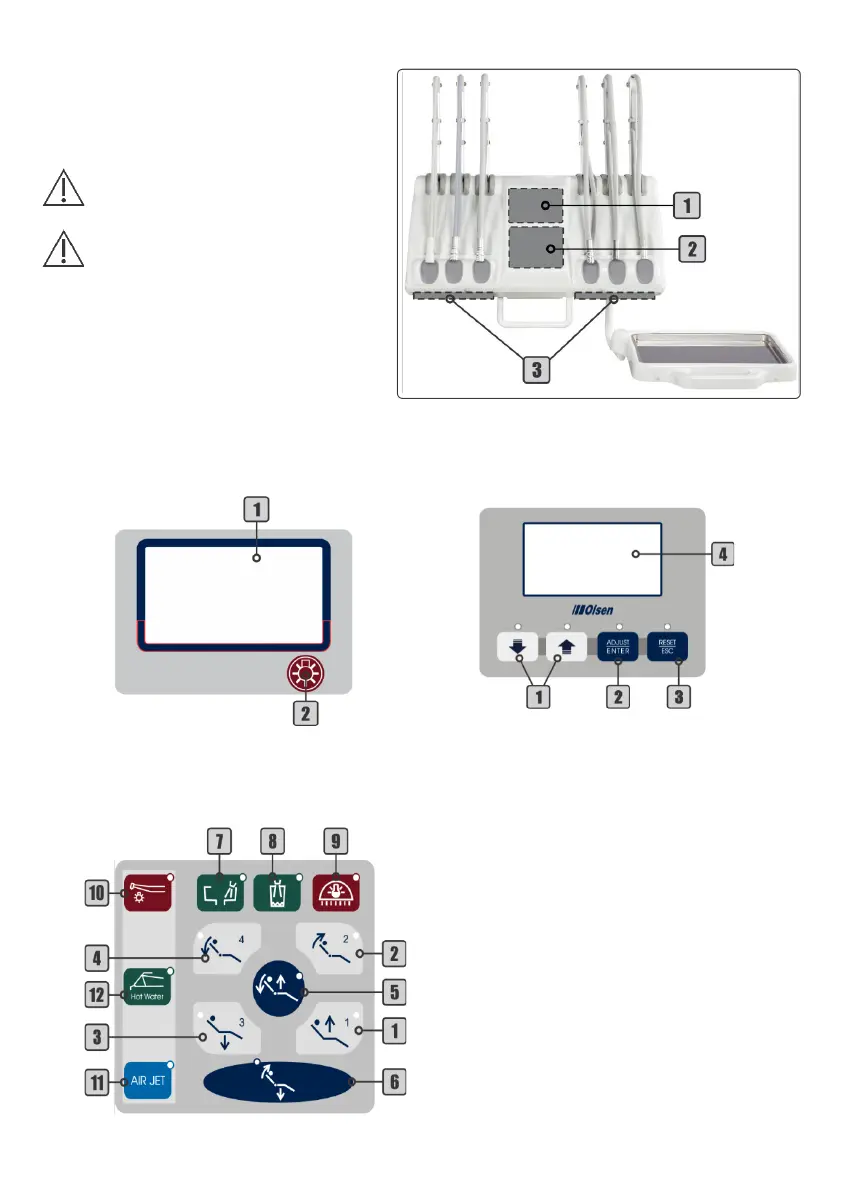

1 - Top Panel Cross
2 - Command Panel
3 - Instruments Control Panel
The layout of the controls and panels
may vary according to customer order
and available handpieces.
Some functions indicated on control
panel may not be available according to
the equipment configuration.
Top Panel Cross Flex (1) Models:
Command Panel (2):
X-Ray Viewer
1 - X-Ray Viewer
2 - On/Off X-Ray Viewer
1 - Adjustments
2 - Adjust/Enter
3 - Reset/Esc
4 - Multifunctional Display
ChronoLub System and Multifunctional Display (Optional)
1 - Seat Up/Position 1
2 - Backrest Up/Position 2
3 - Seat Down/Position 3
4 - Backrest Down/Spit Position
5 - Work Position
6 - Zero Position
7 - Spittoon Bowl Flush
8 - Cup Filler
9 - On/Off Operating Light
10 - On/Off Optical Fiber Light
11 - On/Off Air Jet System
12 - On/Off Thermo Comfort System
