9

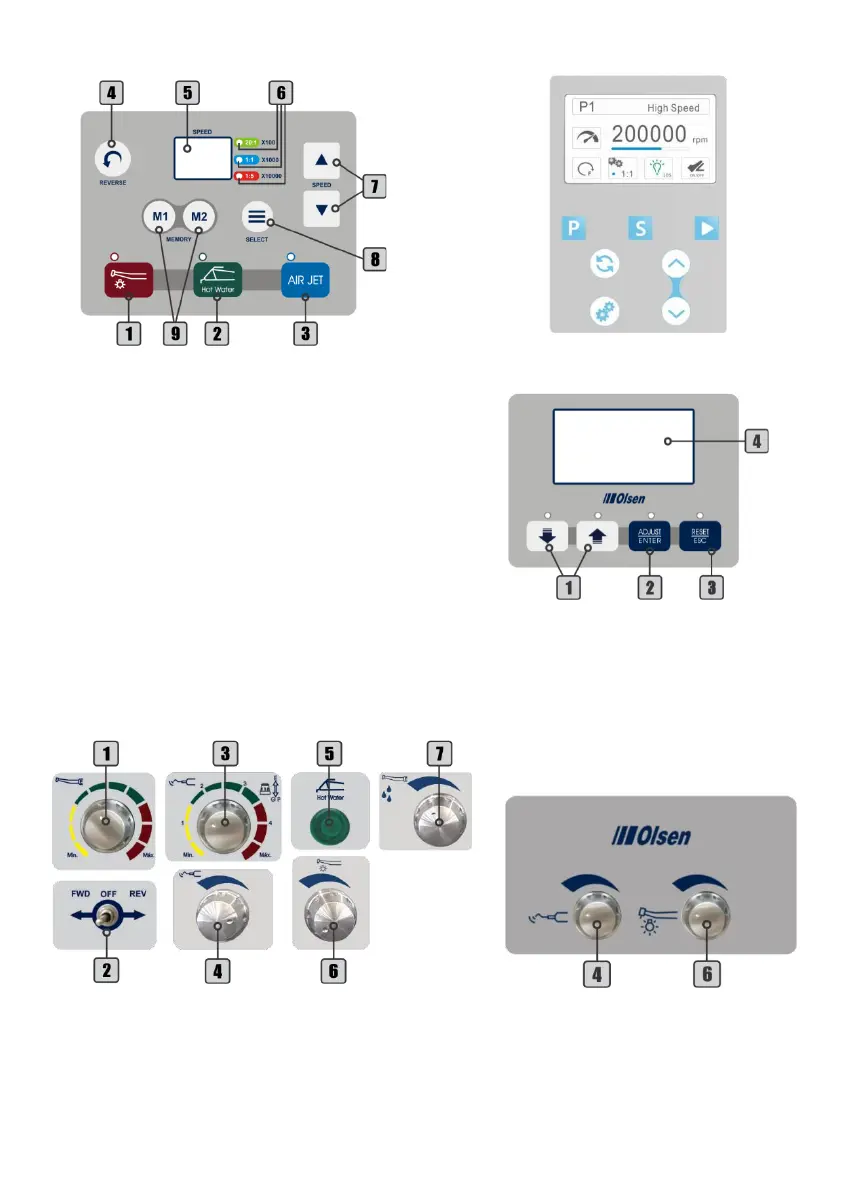

Instruments Control Panel (2):
The switches and knobs presented below can be presented on the instrument panel according to the
instruments available at the dental table.
1 - On/Off Optical Fiber Light
2 - On/Off Thermo Comfort System
3 - On/Off Air Jet System
4 - Reverse
5 - Display
6 - Transmission Indicators
7 - Adjustments
8 - Select
9 - Memory
Brushless Electrical Micromotor (Optional)
Description of controls in item 6.8.3
Brushless - Side Panel (Optional)
1- Adjustments
2 - Adjust/Enter
3 - Reset/Esc
4 - Multifunctional Display
ChronoLub System and
Multifunctional Display (Optional)
Version with ChronoLub System (Optional)
System
1 - Electrical Micromotor Speed Control
2 - Electrical Micromotor Direction Control
3 - Scaler Power Control and Function Selector - General-Perio/Endo
4 - Scaler Water Control
5 - LED On/Off Thermo Comfort System
6 - Optical Fiber Water Control
7 - Brushless Micromotor Water Control
