Transducers with Automatic Probe Recognition and Single Element Transducers
PROBE MHZ CABLE CONN TIP DIA RANGE (steel)* TEMP RANGE** WAND HOLDER (w/wand)
D790 Potted Straight .434” 0.040”-20” -5° – 932°F F152 F152A
D790-SM 5.0 LCMD-316-5B
†
Straight (11.0 mm) (1-500 mm) (-20° – 500°C) F152 F152A
D790-RL LCLD-316-5G
†
Rt. Angle – –
D790-SL LCLD-316-5H Straight
D791 5.0 Potted Rt. Angle .434” 0.040”-20” -5° – 932°F F153
(11.0 mm) (1-500 mm) (-20° – 500°C) – –
D791-RM 5.0 LCMD-316-5C Rt. Angle .434” 0.040”-20” -5° – 752°F – –
(11.0 mm) (1-500 mm) (-20° – 400°C) – –
D792 10 Potted Straight .283” 0.020”-1” 32° – 122°F F150 F150A
D793 Potted Rt. Angle (7.2 mm) (0.5-25 mm) (0° – 50°C) F151
D794 5.0 Potted Straight .283” 0.030”-2” 32° – 122°F F150 F150A
D795 Potted Rt. Angle (7.2 mm) (0.75-50 mm) (0° – 50°C) F151 –
D797 2.0 Potted Rt. Angle .900” 0.150”-25.00” -5° – 752°F – –
D797-SM LCMD-316-5D Straight (22.9 mm) (3.8-635 mm) (-20° – 400°C) – –
D7226 7.5 Potted Rt. Angle .350” 0.028”-4” -5° – 300°F – –
D798-LF (8.9 mm) (0.71-100 mm) (-20° – 150°C) – –
D798 7.5 Potted Rt. Angle .283” 0.028”-4” -5° – 300°F – –
D798-SM LCMD-316-5J Straight (7.2 mm) (0.71-100 mm) (-20° – 150°C) – –
D799 5.0 Potted Rt. Angle .434” 0.040”-20” -5° – 300°F – –
(11.0 mm) (1-500 mm) (-20° – 150°C) – –
MTD705 5.0 LCLPD-78-5 Rt. Angle .200” 0.040”-0.75” 32° – 122°F – –
(5.1 mm) (1.0-19 mm) (0° – 50°C) – –
V260-SM LCM-74-4 Straight 0.080” 0.020” –0.400” 32° – 122°F Sonopen
®
V260-RM LCM-74-4 Rt. Angle (2.0 mm) (0.5-10 mm) (0° – 50°C)
V260-45 LCM-74-x 45° Angle
D7906-SM
††
5.0 LCMD-316-5L Straight .434” 0.040”-2.0” 32° – 122°F F152 F152A
(11.0 mm) (1-50 mm) (0° – 50°C)
D7908
††
7.5 Potted Rt. Angle .283” 0.028”-1.5” – –
(7.2 mm) (0.71-37 mm)
M2017 20 LCM-74-4 Rt. Angle 0.25” Steel 0.020”-0.500” 32° – 122°F – 2127
(6.35 mm) (0.5-12.0 mm) (0° – 50° C)
Oxide 0.010”-0.050”
(0.25-1.25 mm)
M2091 20 LCM-74-4 Rt. Angle 0.25” Steel 0.020”-0.500” 32° – 122°F – 2127
(6.35 mm) (0.5-12.0 mm) (0° – 50° C)
Oxide 0.006”-0.050”
(0.15-1.25 mm)
E110-SB LCB-74-4 and Straight 1.25” 0.080”-5.00” 32° – 176°F – –
1/2XA/E110 (28.5 mm) (2.0-125 mm) (0° – 80°C)
* Dependent on material, transducer type, surface condition, and temperature † Stainless steel cable available; consult us for part numbers
** Maximum temperature is with intermittent contact only †† Transducers used for Thru-Coat technology

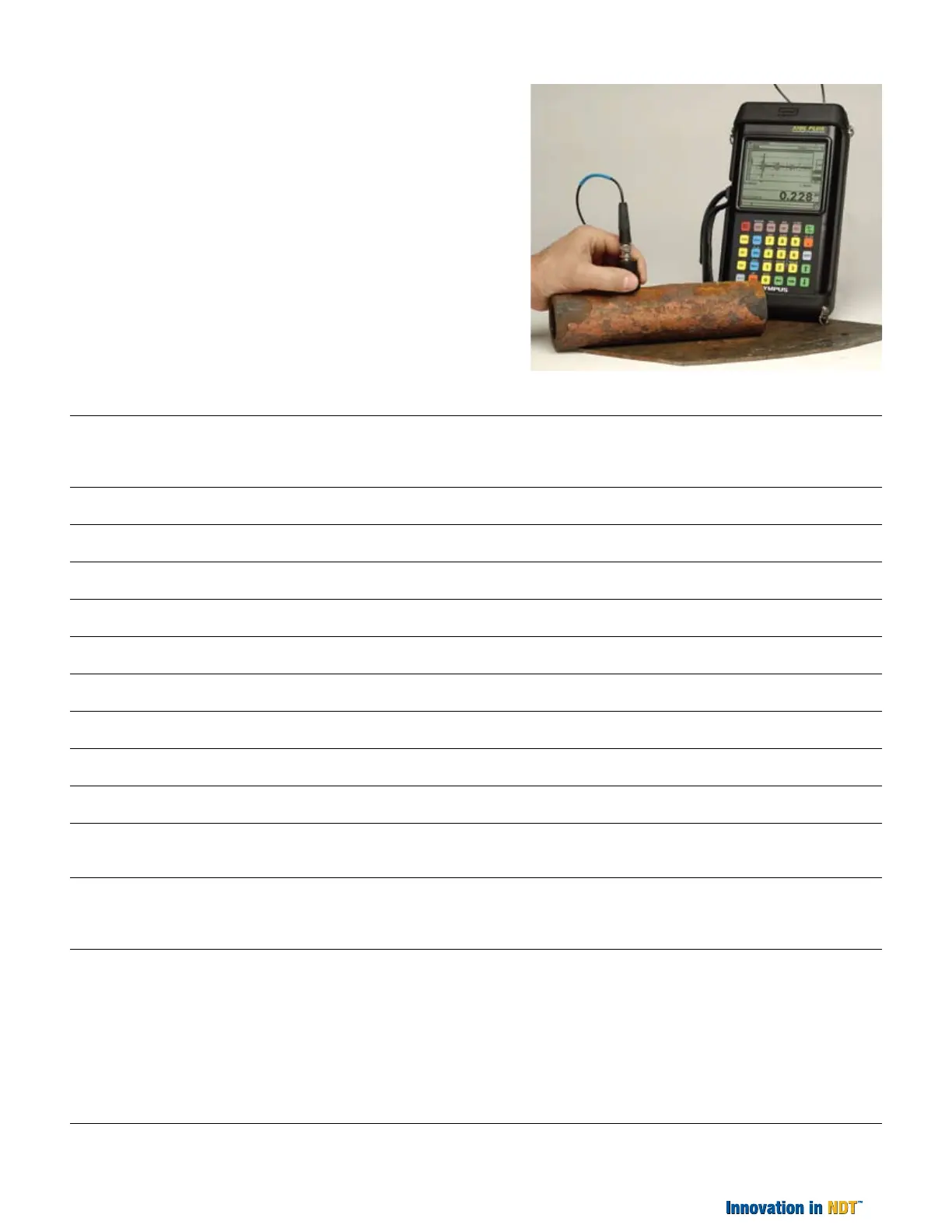

Transducers
The 37DL PLUS can be used with a vast selection of dual element and
single element transducers. Its full line of D790 series dual element
transducers feature Automatic Probe Recognition to provide maximum
gage performance for each transducer. The 37DL PLUS also has the ability
to use the E110-SB EMAT transducer for no-couplant steel thickness
measurements through oxide-scaled surfaces. The M2017 and M2091
transducers are ideally suited for measuring internal oxide/scale build-up
on boiler tubes. The 37DL PLUS is also compatible with the Panametrics-
NDT complete line of Microscan single element direct contact, delay line,
and immersion transducers ranging in frequency from 2 to 30 MHz. As
a result, the gage can be used for non-corrosion applications involving
materials such as plastic, fiberglass, composites, rubber, castings, rubber
and glass. Application Auto-Recall automatically recalls 16 default and 10
custom Microscan transducer setups from the gage’s memory.
