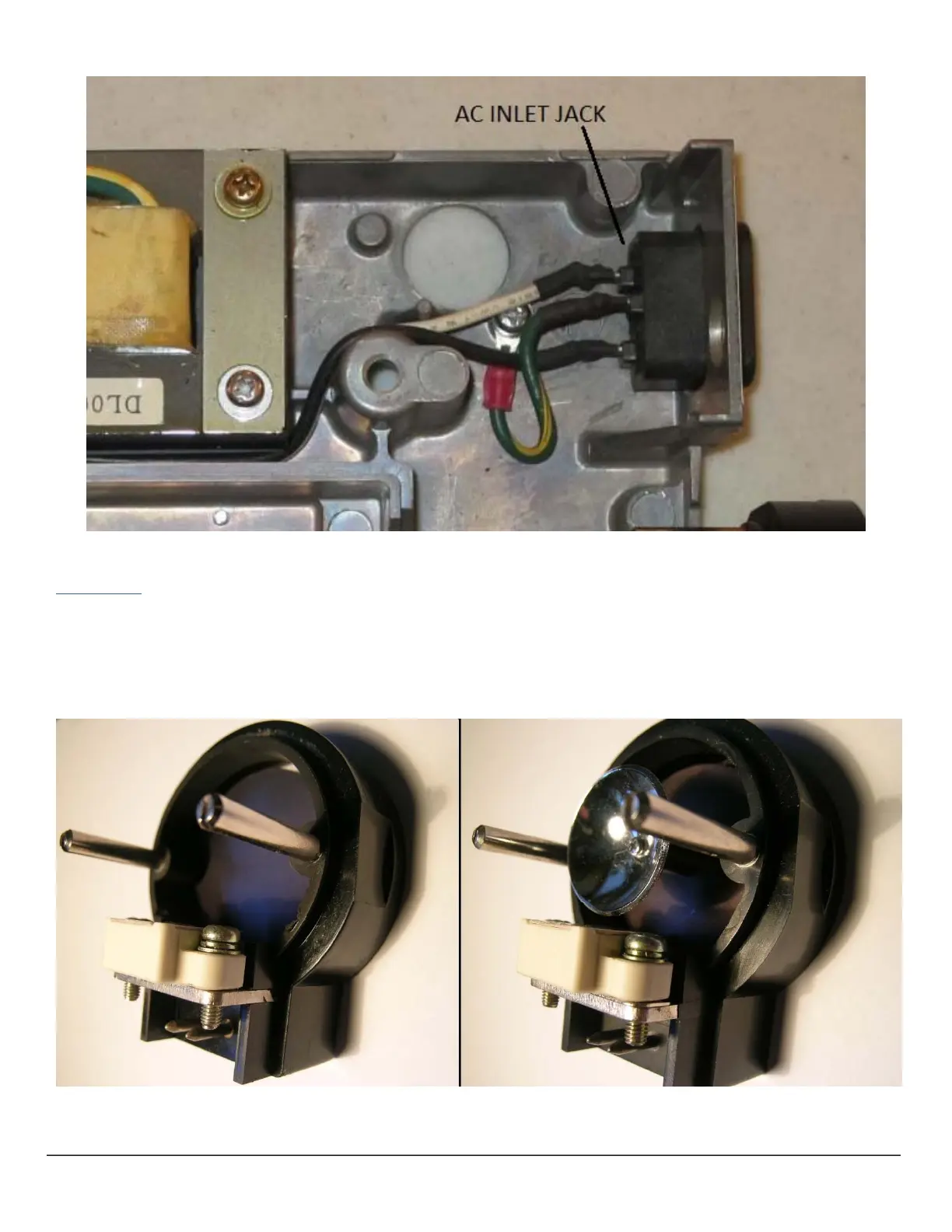

Figure16‐ACInletJackMountedtoBHT/BHTUElectricalBase(100/115VVersion)
LampHouse
ThereweretwostylesoflamphouseusedontheBHT/BHTUmicroscopes(seeFigure17).TheoriginalLS20‐Hversion
suppliedbyOlympus(aspartnumber5‐LB402)did nothaveametalreflectorbehindthebulb.Laterinthelifeofthe
BHT/BHTU,Olympusupgradedthelamphouseto
theLS20H‐M2(partnumber5‐S119),whichincorporatedareflector
behindthelampinordertoprovidemoreusablelight.SincetheLS20H‐M2lamphouseisdirectlyinterchangeablewith
theearlierLS20‐Hpart,itshouldbeusedwheneverpossible.

Figure17–OriginalLampHouse(left)and
NewerLampHousewithReflector(right)
