LampDimmerWaveforms(continued)



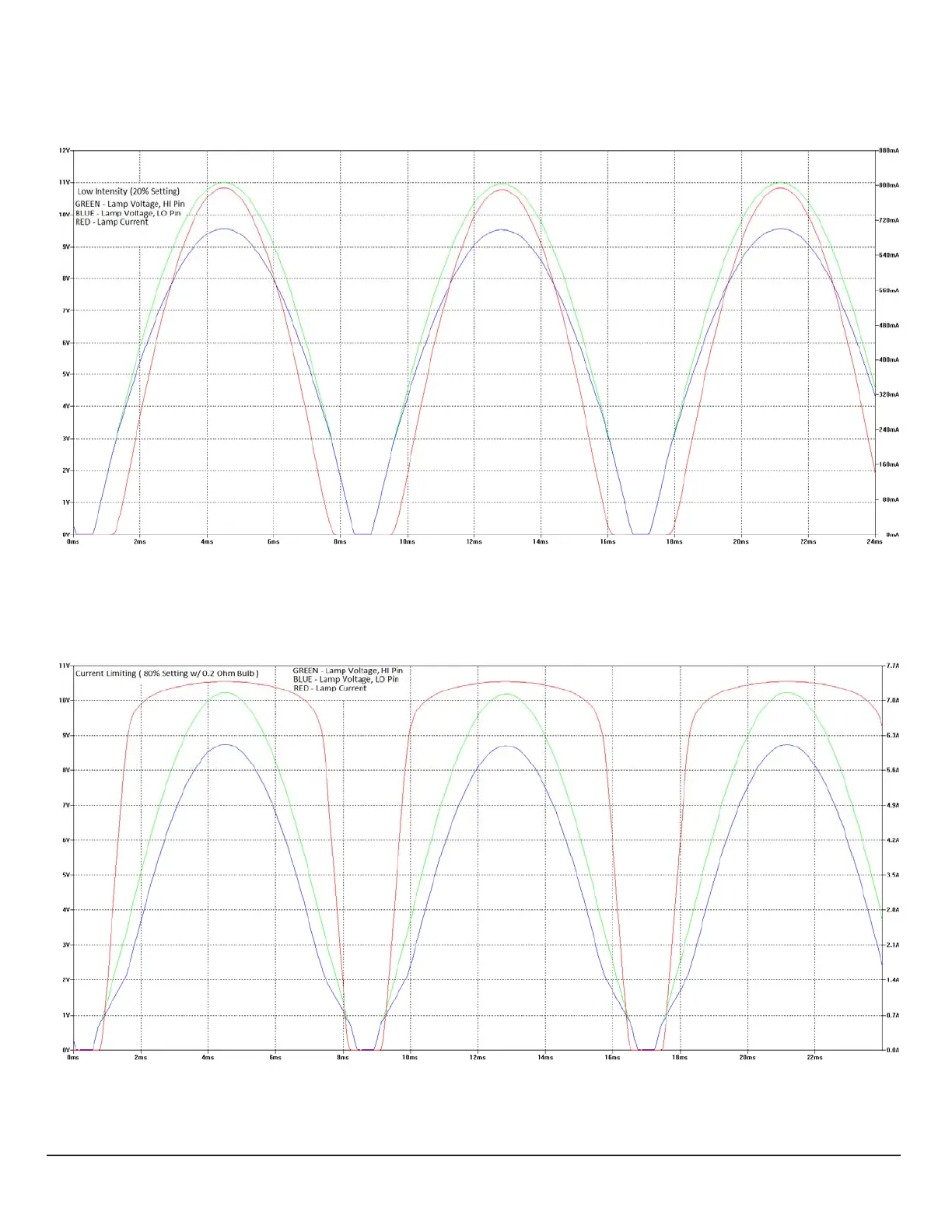

Figure23–LampWaveformsatLowIntensity(20%SettingofIntensityControl)



Figure24‐LampWaveformsduringCurrentLimiting(80%SettingofIntensityControl,LampResistance0.2Ω)
