LEDBar‐GraphDisplayWaveforms(continued)



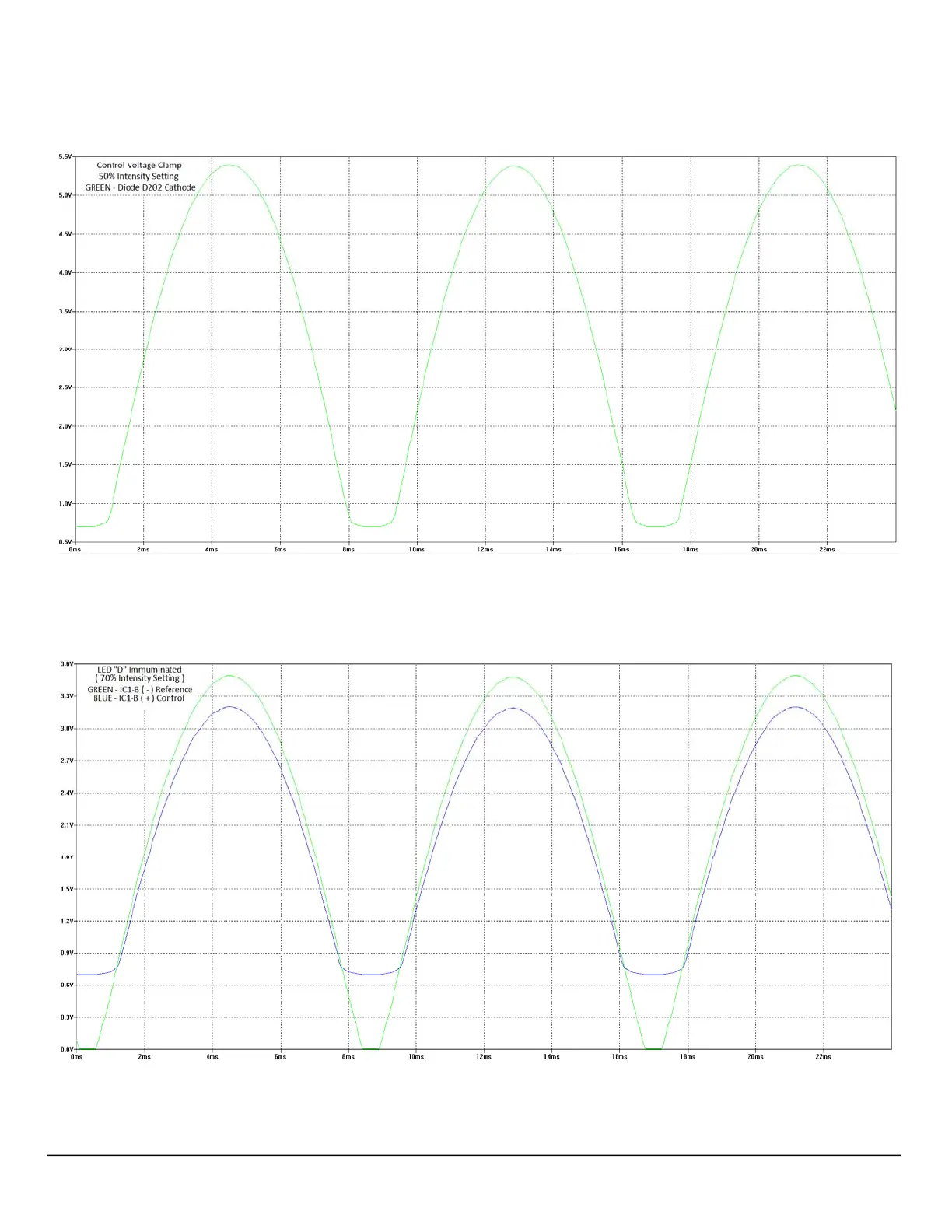

Figure27–ClampedControlSignaltoComparatorsatMediumLampIntensity(50%SettingofIntensityControl)



Figure28‐ComparatorIC1‐BInputswith6VLEDIlluminated(70%SettingofIntensityControl)

