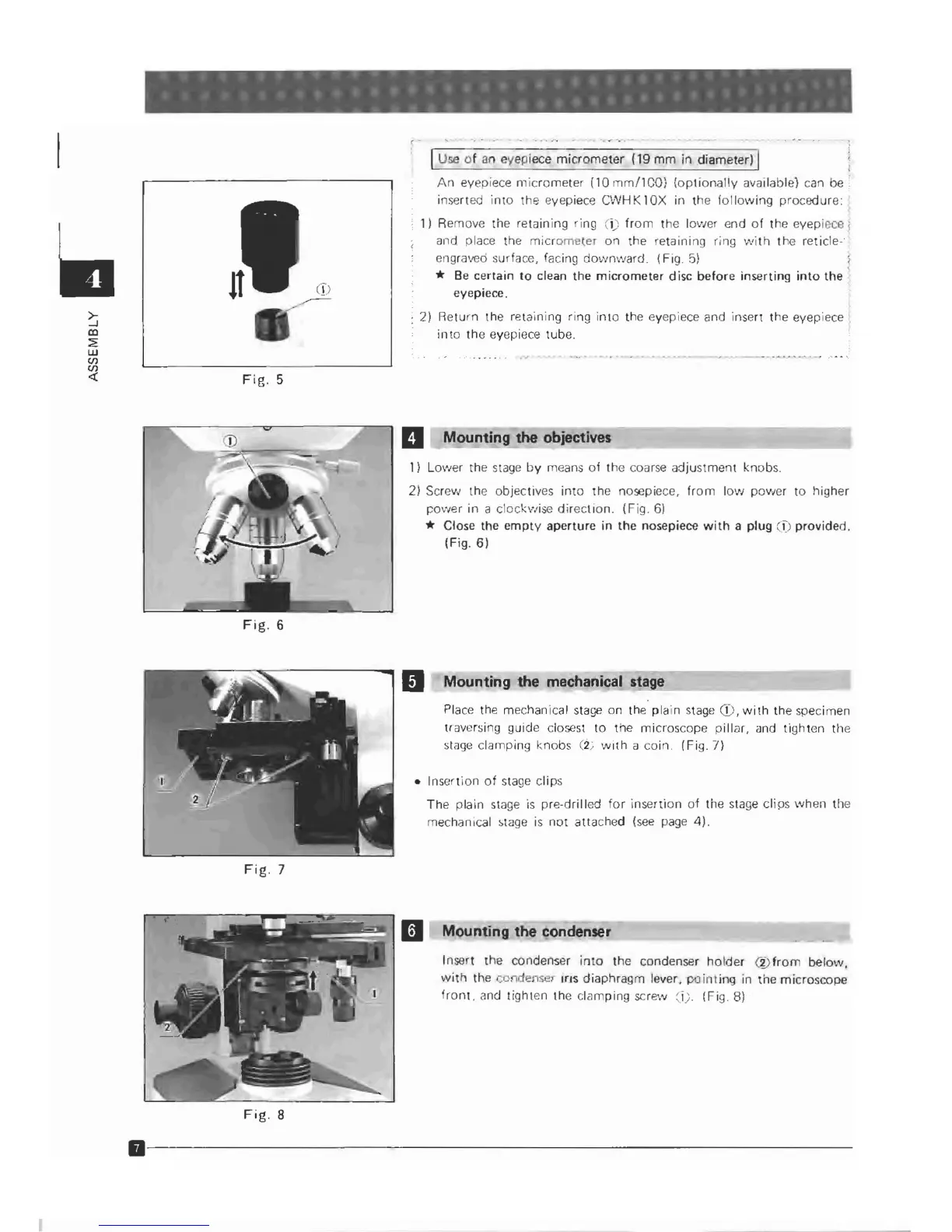

Olympus CHS - Page 10

{ -
IU5e of an eyepiece micrometer (19 mm in diameter) I
An eyepiece micrometer (10 ITlm/lCO) (optionally available) can be
inserted
into the eyepiece CWHK10X in the following procedure:
1) Remove the retaining ring (I) from the 10\o"ler end of the eyepiece i
and place the micrometer on the retaining ring with the reticle-·
engraved surface, facing
downward. (Fig. 5) ?
* Be certain to clean the micrometer disc before inserting into the
eyepiece.
2) Return the retaining ring inlO the eyepiece and insert the eyepiece'
into the eyepiece tube.
_ ._.A~""'_~ ," __ '.
Fig. 5
II Mounting the objectives
l} Lower the stage by means of the coarse adjustment knobs.
2} Screw the objectives into the nosepiece, from low power to higher
power in a clockwise direction. (Fig. 6)
* Close the empty aperture in the nosepiece with a plug (I) provided.
(Fig.
6)
Fig. 6
II Mounting the mechanical s ... ta..,9 .... e _
Place the mechanical stage on the plain stage 0), with the specimen
traversing guide closest to the microscope pillar, and tighten the
stage clamping knobs (2; with a coin (Fig.7}
• Insertion of stage clips
The plain stage is pre-drilled for insertion of the stage clips when the
mechanical slClge is not attached (see page 4).
Fig. 7
II Mounting the condenser
Insert the condenser into the condenser holder (2Jfrom below,
with the condenser iris diaphragm lever, pointing in the microscope
front. and tighten the clamping sere'.'v (i). (Fig.8)
Fig. 8
