DISASSEMBLING/ASSEMBLING PROCEDURE

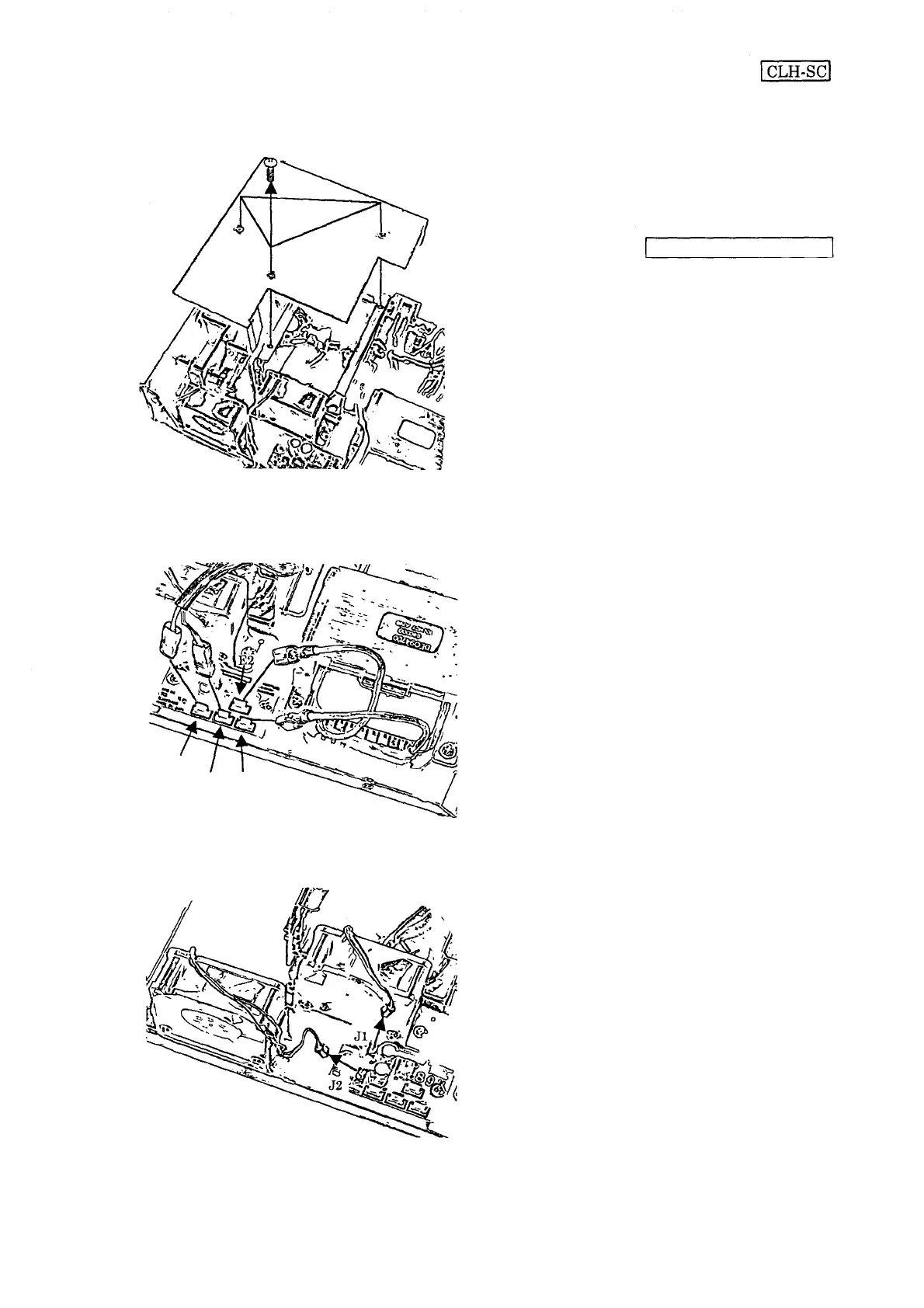

2. Upper heat shielding plate
(1) Remove the three screws which secure the
upper heat shielding plate to the main
body.
(2) Remove the upper heat shielding plate
from the main body.
E1
E3
3. UPCH10U
(1) Remove the terminal of Socket harness
from the UPCH10U board.
(2) Remove the lead terminal of the
transformer from the UPCH10U board.
(3) Remove the connector of the fan U from the
UPCH10U board.
5-3
Phillips screwdriver No. 2
E4
To Next Page
