DISASSEMBLING/ASSEMBLING PROCEDURE

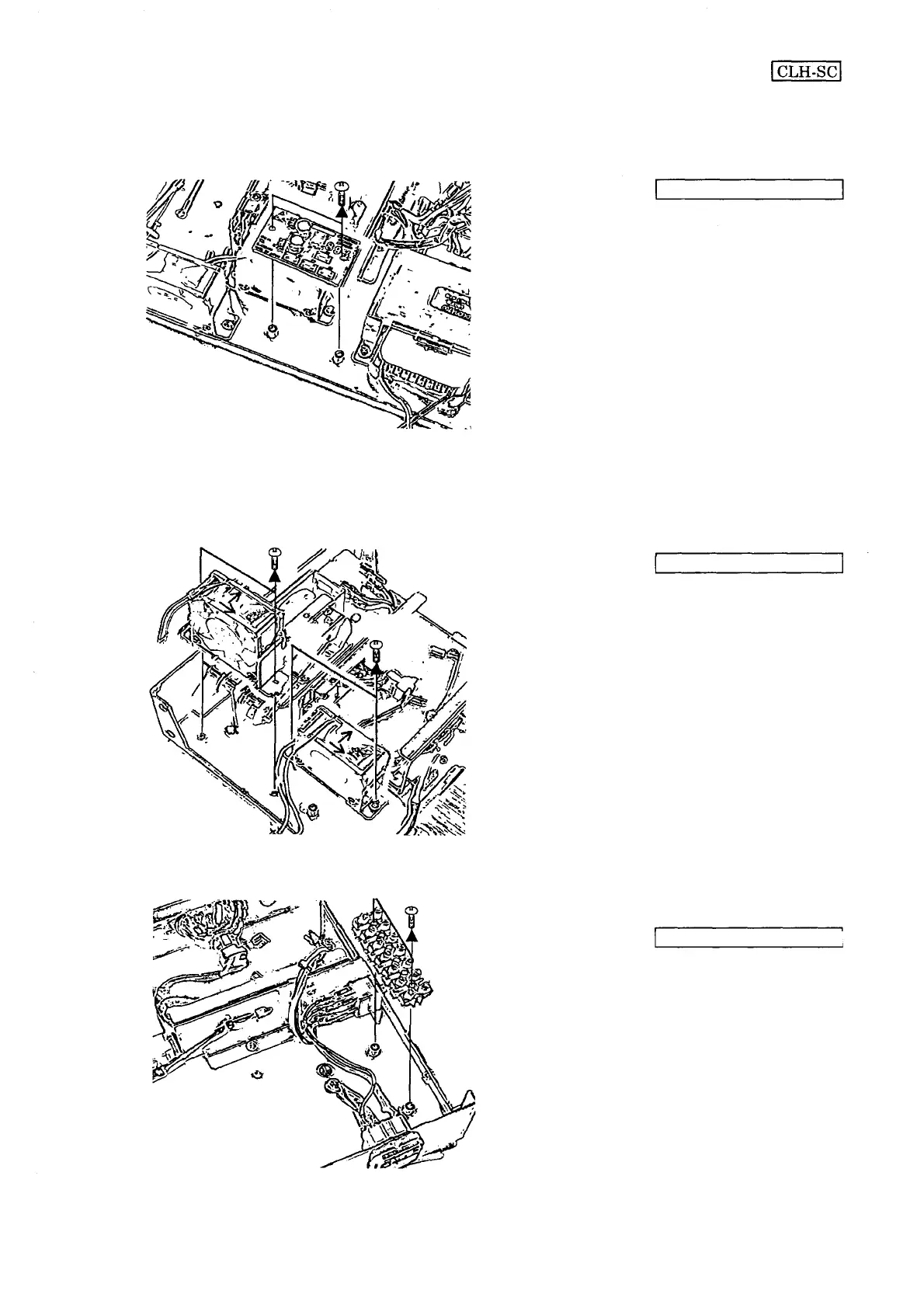

(4) Remove the two screws which secure the
UPCH10U to the chassis.
Phillips screwdriver No. 2
(5) Remove the UPCH10U from the chassis.
4. Fan
(1) Remove the two screws which secure the
fan to the chassis.
Phillips screwdriver No. 2
(2) Remove the fan from the chassis.
5. Terminal block
(1) Remove the two screws which secure the
terminal block to the chassis.
(2) Remove the terminal block from the
chassis.
5-4
Phillips screwdriver No. 2
