Olympus E-1 Basic Manual

4
En
Getting Started
Hot shoe
LIGHT (Control
panel illumination)
button
ISO button
Control panel
(Exposure compensation)
button
Mode dial
Power switch
Mode dial lock
Sub dial
WB
(White
balance) button
(Record
mode) button
Shutter button
(Flash mode)
button
White balance sensor
Self-timer/Remote
control lamp,
AF illuminator
Remote control
receiver
(One-touch WB)
button
Preview button
Lens release
button
Lens lock pin
Mirror
Lens attachment
mark
Tripod socket
Battery
compartment
lock
Battery
compartment
cover
Mount
(Attach the lens after removing the body cap
from the camera to prevent dust and dirt from
entering the camera body.)

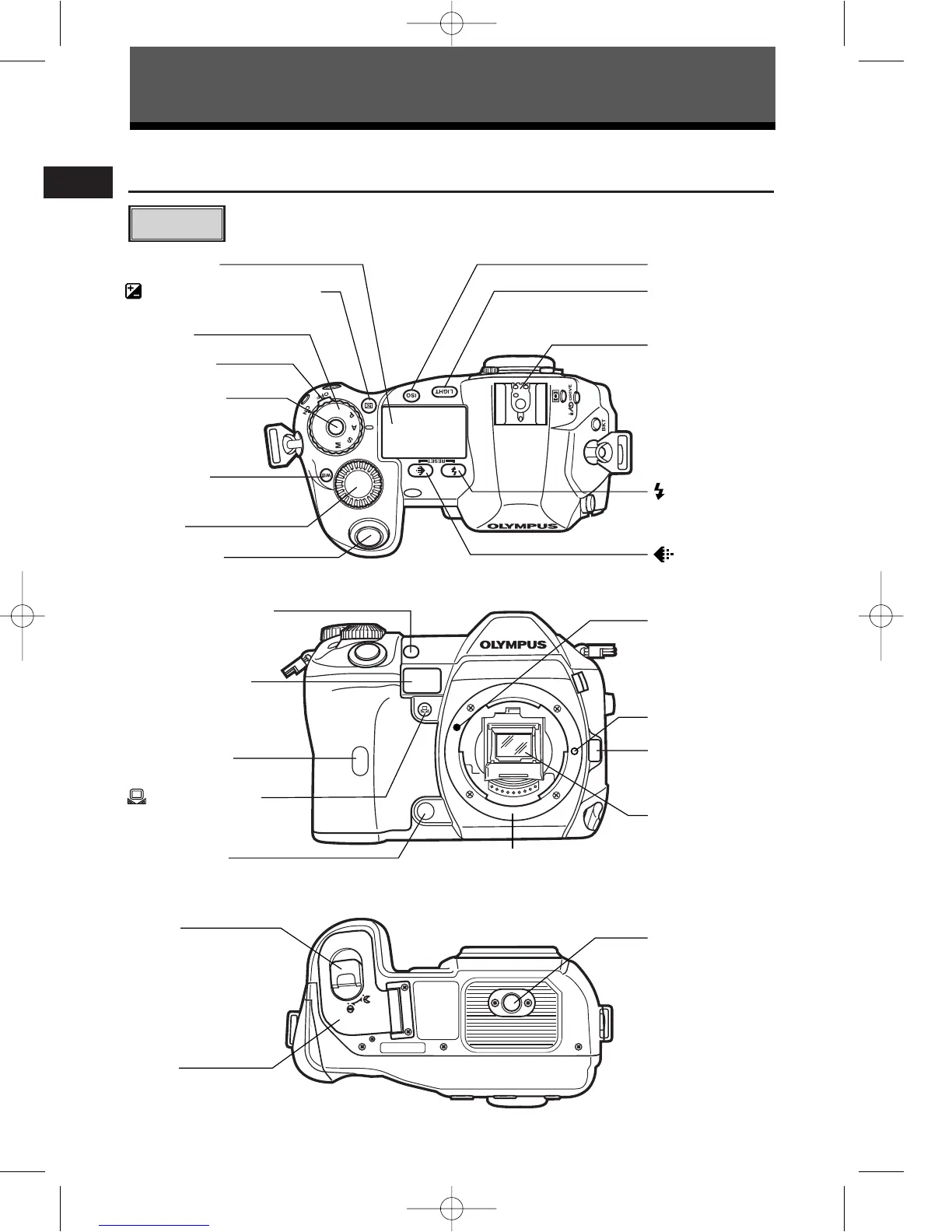

Names of parts
Camera
1 E-1 Ba-EN P1 03.7.8 5:55 PM Page 4

Olympus E-1 Specifications

General

Max Resolution	2560 x 1920
Image Ratio w:h	4:3
Sensor Type	CCD
Lens Mount	Four Thirds
Focal Length Multiplier	2x
White Balance Presets	6
Digital Zoom	No
Image Stabilization	No
RAW Format	Yes
Shutter Priority	Yes
Aperture Priority	Yes
Manual Exposure Mode	Yes
Built-in Flash	No
Flash X Sync Speed	1/180 sec
Viewfinder Type	Optical (pentaprism)
LCD Screen Size	1.8"
Screen Dots	134, 000
Shutter Speed	60 - 1/4000 sec
Continuous Shooting	3 fps
Storage Type	CompactFlash (Type I or II), Microdrive
USB	USB 1.1
Dimensions	141 x 104 x 81 mm (5.55 x 4.09 x 3.19 in)
Camera Type	SLR
Effective Pixels	5.0 MP
Sensor Size	17.3 x 13.0 mm
Metering Modes	Center-weighted, Spot
Exposure Compensation	±3 EV (1/3 EV steps)
External Flash	Yes
Drive Mode	Single, Continuous, Self-timer
Self-timer	Yes (12 sec, 2 sec)
Battery	Lithium-Ion
Weight	660 g (1.46 lb)
ISO Range	100-800 (expandable to 1600, 3200)
