Thank you for purchasing this Olympus product.
To ensure your safety, please read this instruction manual carefully before use.
In addition, please keep the manual handy for future reference.
Be sure to read the instruction manuals for the fl ash and the wireless commander
as well.
If you use the product outside the country or region of purchase, you may violate
local regulations. Olympus accepts no liability in this case.
Checking the Contents of the Package
z Wireless radiowave receiver: FR-WR
z Pouch
z Instructions (This manual)
z Warranty card

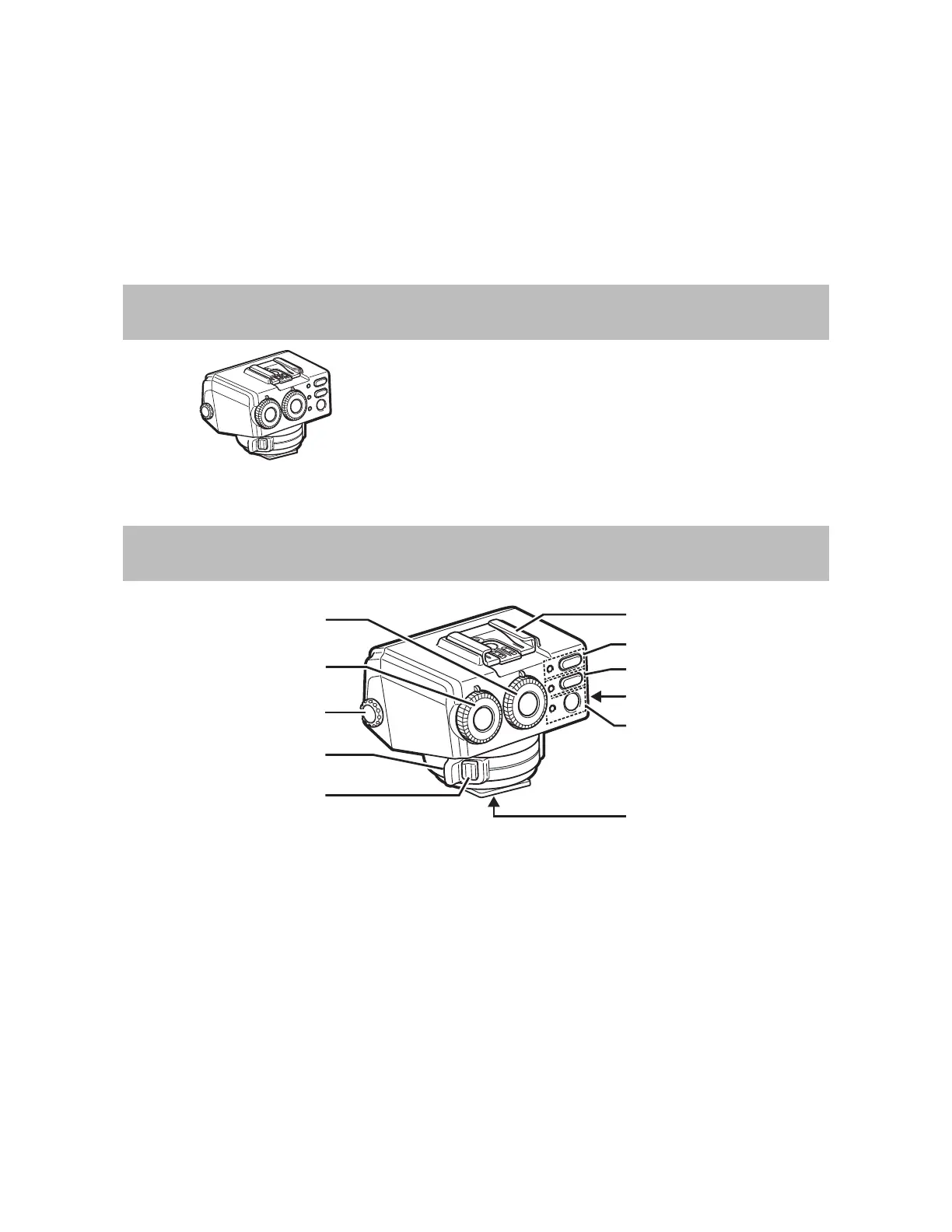

Names of Parts
1
2
3
4
5
6
0
7
8
9
a
1 Group dial (A/B/C) ........................ P. 19
2 Channel dial (1-15) ....................... P. 19
3 External fl ash terminal*
4 Latch ............................................. P. 16
5 Latch release button ..................... P. 16
6 Hot shoe ....................................... P. 17
7 X-RCV lamp/button ....................... P. 19
8 BEEP lamp/button......................... P. 20
9 Battery compartment cover ........... P. 15
0 ON/OFF lamp/button .................... P. 17
a Tripod socket
* Use the external fl ash terminal when you connect a commercial fl ash via a sync cord. Always
attach the cap when you are not using the external fl ash terminal.
