Olympus InstaClear User Manual

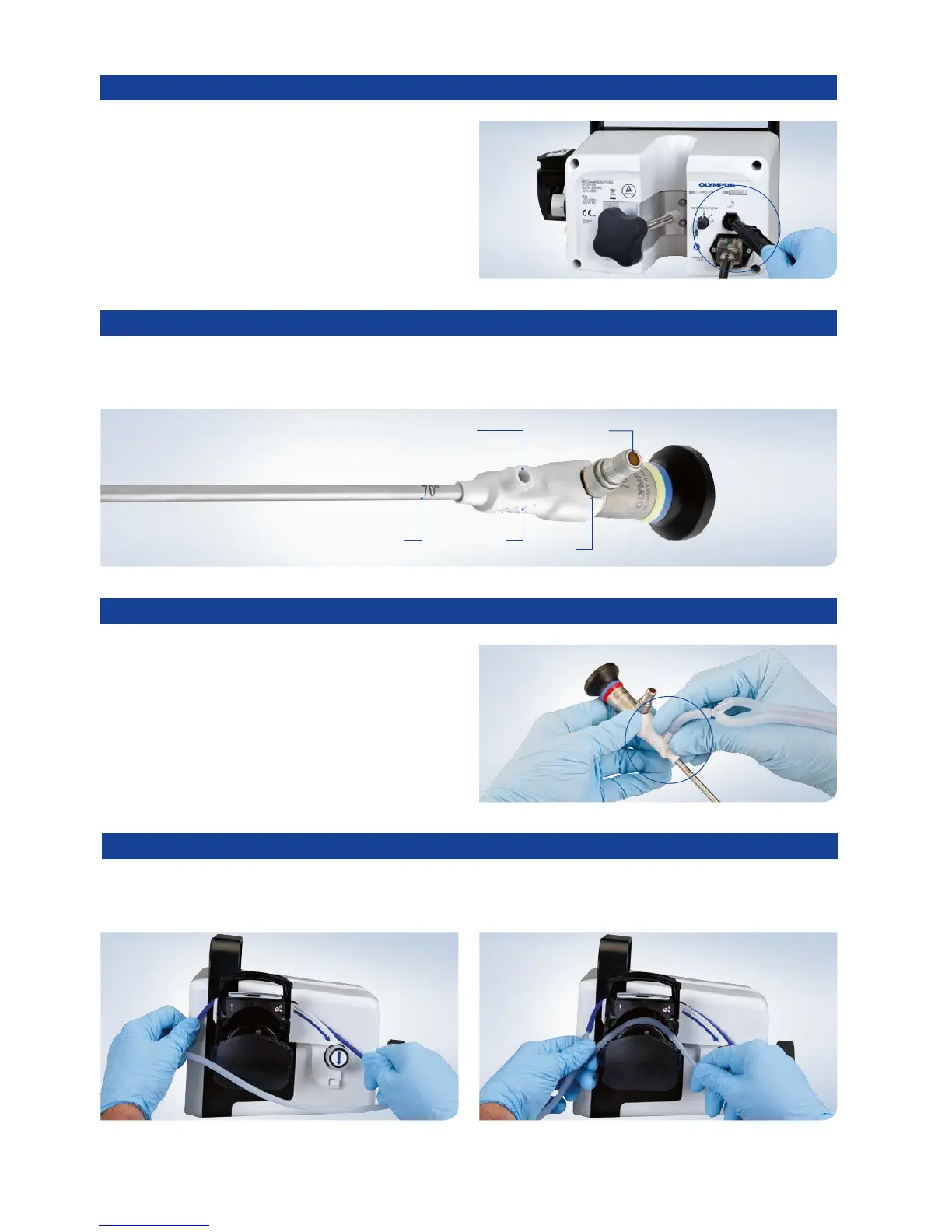

7 | Attach Irrigation
With the pump lever open, position the blue portion of the tube set across the tube guide. Thread the clear portion of the
tube set through the pump and close the pump lever. Remove the IV-spike cover and insert the IV spike into the IV bag.
4 | Connect Foot Pedal
5 | Assemble Endoscope in Sheath
Align the foot-pedal plug and foot-pedal socket (on the rear
of the console) and insert the plug fully into the socket.
Grasp the sheath by the hub and slide it over the end of the scope, hub end first, until it stops at the distal end (a slight gap
is appropriate between the sheath hub and the light post).
Thread the Luer lock connector of the tube set onto the Luer
lock port of the sheath.
6 | Attach Sheath to Tube Set
Gap
Tip-Angle Label
Hub
Luer Lock Light Post
15458
15447
15449
15452 15453
