Olympus LS-5 User Manual

9
Getting Started
1
1
2
4
5
6
7
8
9
0
!
#
@
(
)
-
=
q
[
i
r
u
t
y
$
%
^
&
*
e
w
]
o
p
3

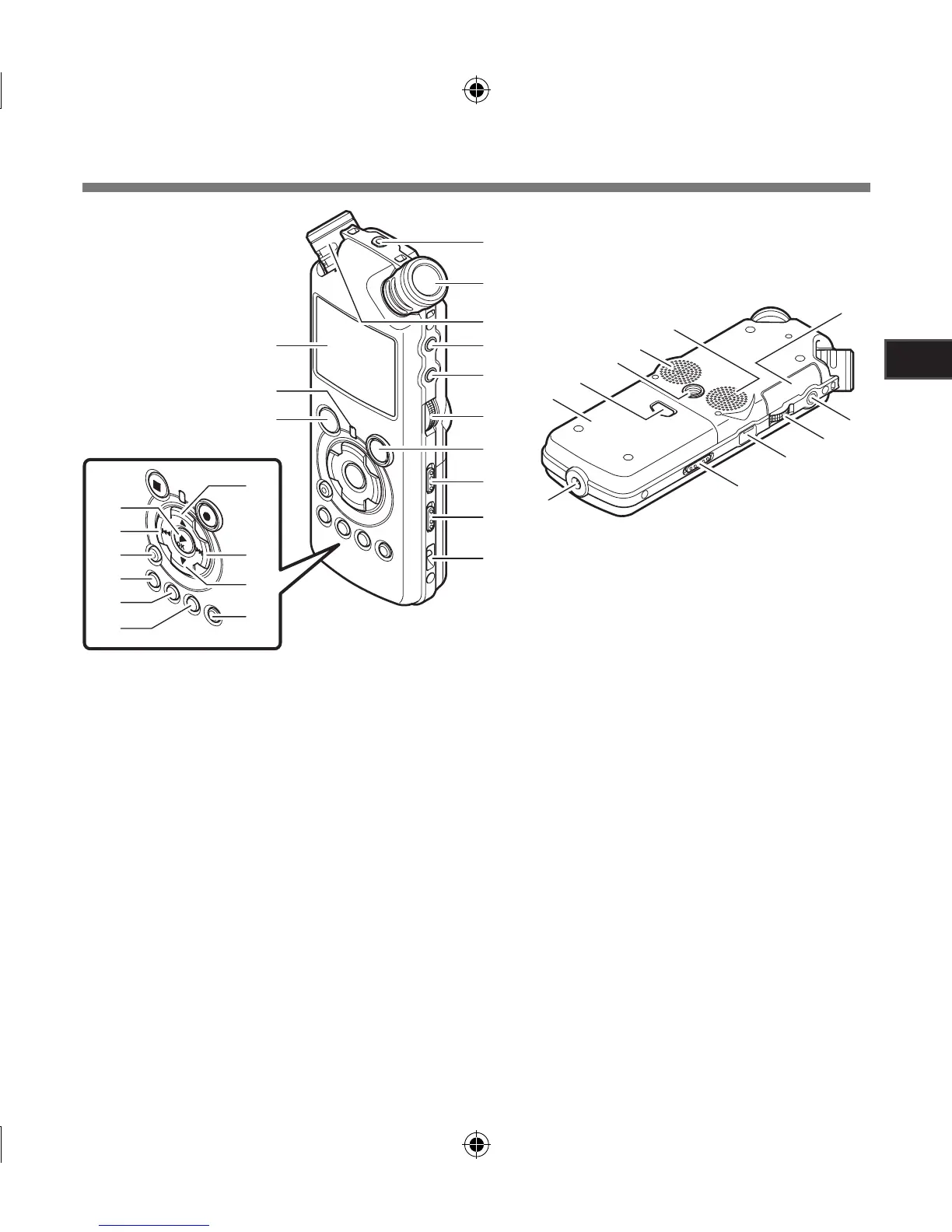

Identification of Parts
1 REMOTE jack
Connect the receiver for the exclusive remote control
set RS30W (optional). This enables operation of the
main unit’s record and stop functions through the
remote control.
2 Built-in stereo microphone (R)
3 Built-in stereo microphone (L)
4 LINE IN jack
5 MIC jack
6 REC LEVEL dial
7 REC s button
Recording indicator light (LED)
8 MIC SENSE HIGH/LOW switch
9 LOW CUT ON/OFF switch
0 Strap hole
! Display (LCD panel)
@ PEAK indicator light (LED)
# STOP 4 button
$ 2 button
% 9 button
^ 3 button
& LIST button
* MENU button
( A-B REPEAT button
) Fn button
- ERASE button
= 0 button
q `/ OK button
w Card cover
e EAR jack
r VOLUME dial
t USB terminal
y POWER / HOLD switch
u Power jack
i Battery cover
o Battery cover release button
p Tripod socket
[ Built-in stereo speaker (R)
] Built-in stereo speaker (L)

Olympus LS-5 Specifications

General

Frequency range	20 - 20000 Hz
Built-in microphone	Yes
Maximum recording time	69 h
Audio formats supported	MP3, WAV, WMA
Compatible memory cards	SD, SDHC
FM recording	-
Internal memory	2048 MB
Display size (HxV)	30.1 x 35.4 mm
Interface	USB
Headphone out	1
Battery type	AA
Dimensions (WxDxH)	48 x 22.4 x 131.5 mm
Compatible operating systems	Microsoft Windows 2000/XP/Vista Mac OS 10.2/10.3/10.4/10.5
Battery life (max)	23 h
Number of batteries supported	2

Weight and Dimensions

Weight	165 g
