Olympus OSF-3 User Manual

Chapter 3 Cleaning, Disinfection and Sterilization Procedures
31
OSF-3 ENDOSCOPE REPROCESSING MANUAL
Figure 3.15
Flushing Detergent Solution Into Air/Water Channels
Using the All-channel Irrigator (CW-3) and the 30 cm
3
(30 ml) syringe, irrigate
the air and water channels according to the procedure described below.
The models such as the Channel Plug (MH-944) and the
Injection Tube (MH-946) cannot be used. Using such models
may result in instrument damage.
1. Attach the All-channel Irrigator’s Channel cap to the Instrument Channel
Port (see Figure 3.16).
2. Attach the All-channel Irrigator’s Lock cover to the Air/Water and Suction
Cylinders (see Figure 3.16).

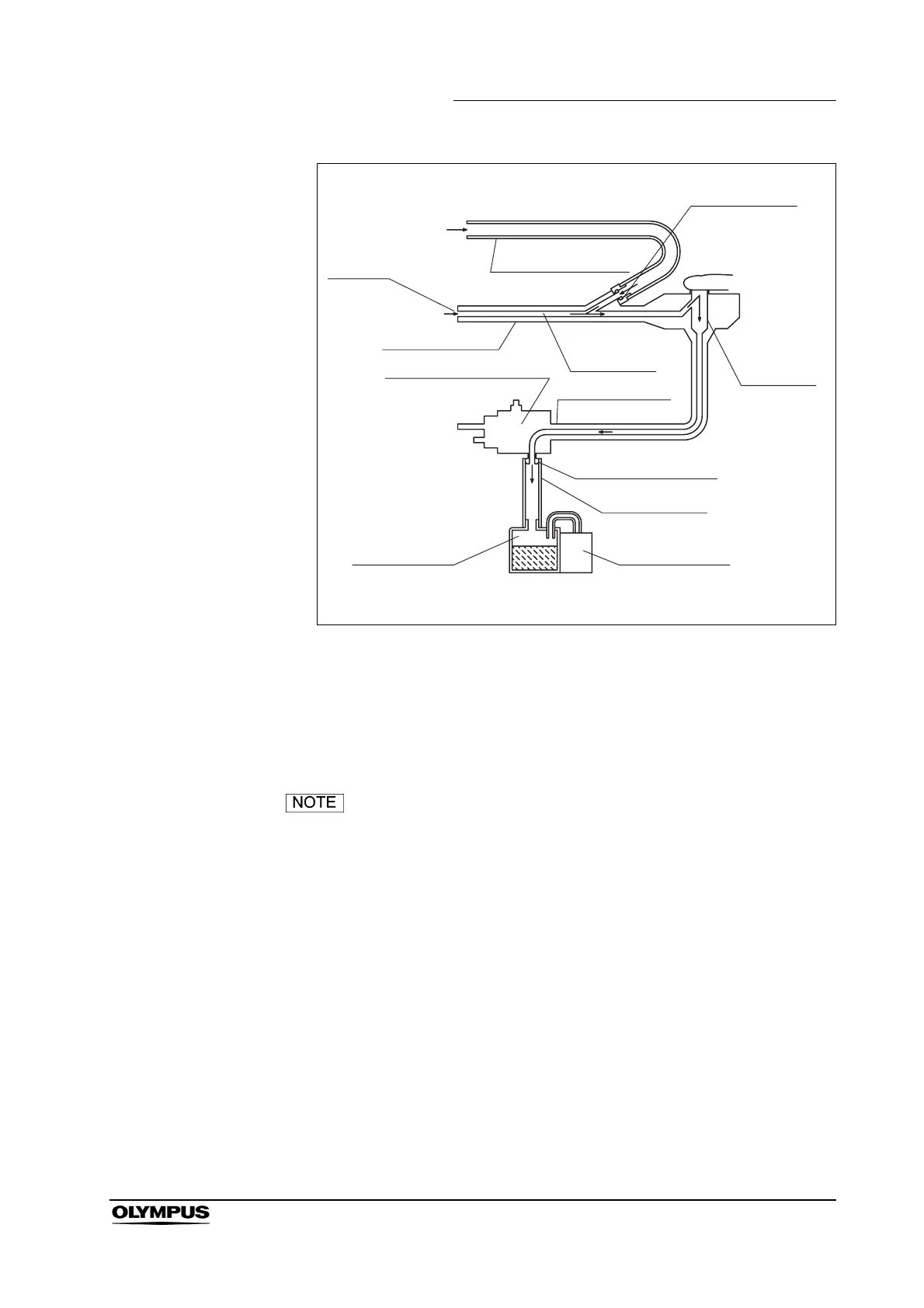

The Suction System
Instrument
Channel Port
Channel Cleaning
Adaptor
Suction
Cylinder
Suction
Port
Instrument
Channel
Insertion Tube
Endoscope Connector
Universal Cord
Suction Connector
Suction Tube
Suction PumpSuction Tank
(MB-19)
Endoscope
