SZ2-ILA
8
ASSEMBLY

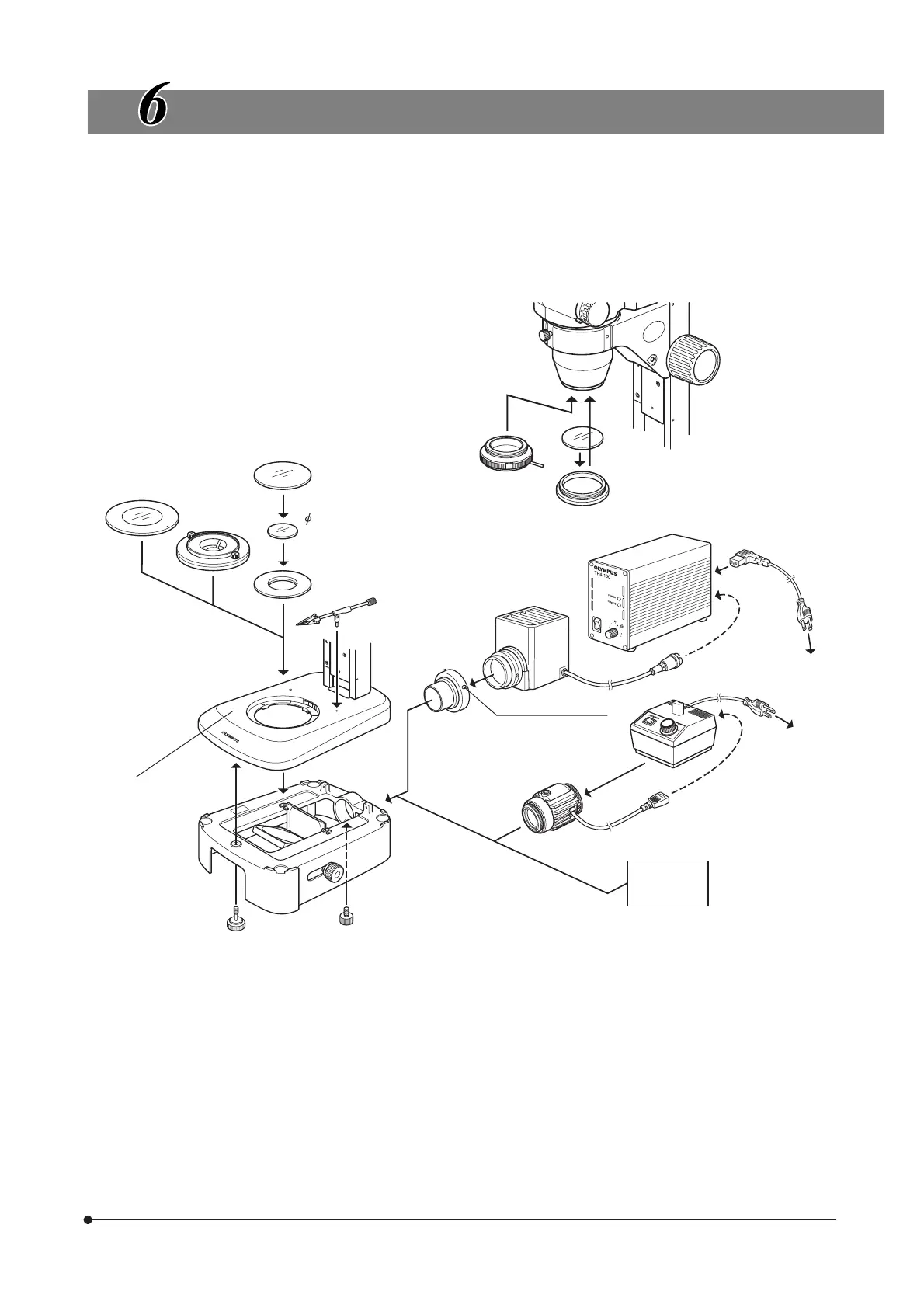

The modules shown in the following figure are merely the typical examples. For other applicable modules that are not
given below, please consult your Olympus representative or the latest catalogues.
The detailed assembly procedure is given only for how to mount the halogen bulb.
# When assembling the microscope, make sure that all parts are free of dust and dirt, and avoid scratching any parts
or touching glass surfaces.
Stage Glass
SP-C
45 mm
frameless filter
Filter holder
Simplified
Polarization
System
SZ-POL-2
(Polarizer)
Darkfield
Adapter
SZ-ADD
Jewel
Observation
Clip
SZH-CLJ
Standard Stand
SZ2-ST
Place the SZ2-ST
on the SZ2-ILA,
pull the SZ2-ST
toward the front
until it is
stopped, and
tighten the
clamping knob.
Transmitted Illumination
Attachment
SZ2-ILA
Clamping screw
(For use only with
the SZ2-LHAD)
Clamping knob
(Clamping using a
coin)
SZ2 series
microscope
body
Simplified
Polarization
System
SZ-POL-2
(Analyzer)
Dust Protection Filter
SZ-FIL
Power Supply
TH4
To pow er
outlet
100 W Halogen
Lamp Housing
U-LH100L-3
Lamp
Housing
Adapter
SZ2-LHAD
Clamping screw
(Clamping using the
Allen wrench
provided with the
microscope body)
Epi-Illuminator
LSGA
Light guide
illumination
system
To pow e r
outlet
# For the connections of the cables and power cord, refer to the instruction manuals for the TH4 and LSGA.
For the assembly of the light guide illumination system, refer to its instruction manual.
