11
7-2 Simplified Polarization System SZ-POL-2
Cross-Nicol Adjustment and Observation
1. Drop the polarizer below the stage glass so that the index dot ( · ) can be viewed horizontally.
2. Turn on the transmitted light source, look through the eyepieces and rotate the analyzer so that the field of view is darkest
(cross-Nicol condition).
3. Place a polarized observation specimen and observe it by rotating it or the stage glass.
Operating Precautions
# Polarized light observation is possible without problem with any auxiliary objective, except for the 2X auxiliary objec-
tive with which the peripheral part of image may be cut off.
# It is not possible to mount a filter holder, etc., in the same position as the polarizer.

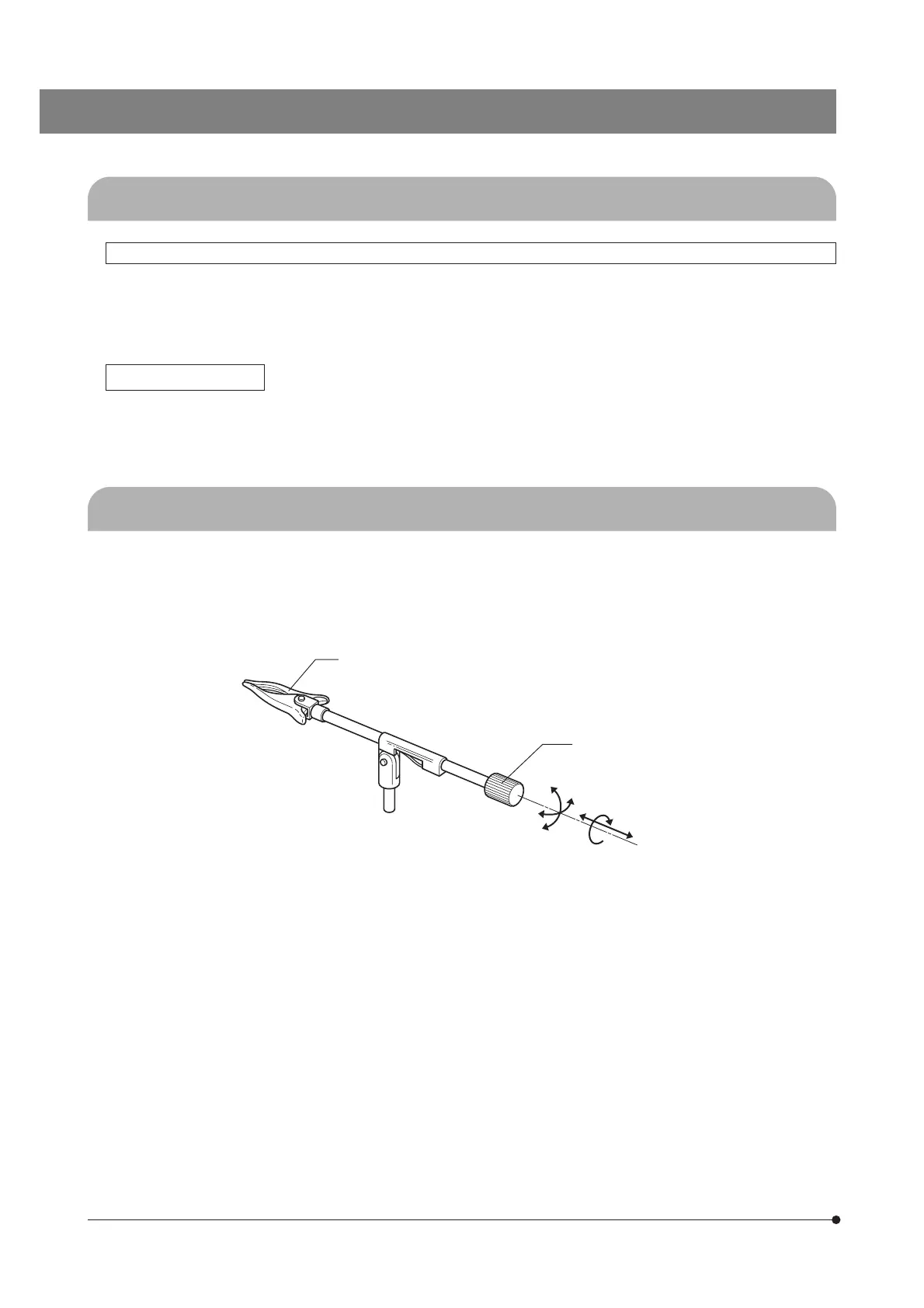

7-3 Jewel Observation Clip SZH-CLJ
The SZH-CLJ makes it possible to hold a jewel or small article beneath the objective by pinching it between the clips. The
specimen can be moved in any orientation by holding the knob and turning the clip or moving it to the front, rear, up, down,
left and right.
Clip
Knob
Left-right
Up-down
Front-rear
Rotation
To Next Page
