2.2 Nomenclature
TB-0545PC/IC/FC, TB-0535PC/IC/FC, TB-0520IC, TB-0510IC
INSTRUCTION MANUAL
Ch.2

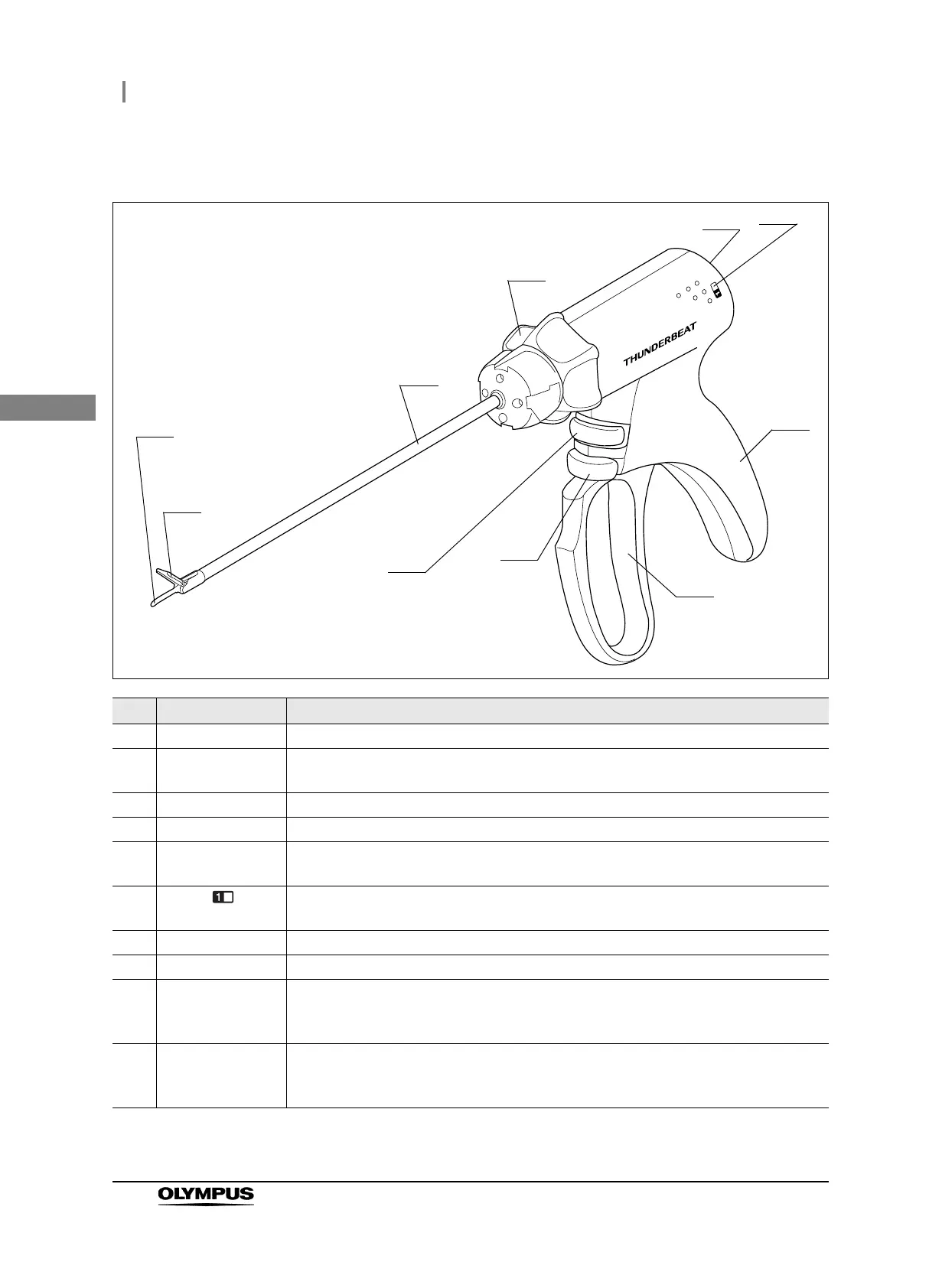

THUNDERBEAT instrument (Front-actuated grip)
No. Nomenclature Description
1 Probe tip During output, ultrasonic vibration or bipolar output is activated.
2 Grasping section
(jaw)
During output, bipolar output is activated.
3 Shaft Is inserted into the abdominal cavity.
4 Rotation knob Rotates the shaft.
5 Transducer
connection
Is connected to the transducer.
6Symbol for
THUNDERBEAT
Indicates that this is a THUNDERBEAT instrument.
7 Grip handle During using, it is held or operated.
8 Control handle By opening or closing the control handle, grasping section is opened or closed.
9 Handswitch: Blue
(SEAL)
Press the SEAL button to deliver the high-frequency (RF bipolar) energy for coagulation
of tissue or sealing of vessels. The button can be activated by depressing the front or
the side.
10 Handswitch: Purple
(SEAL & CUT)
Press the SEAL & CUT button to deliver combined ultrasonic and high-frequency (RF
bipolar) energy for simultaneous sealing and cutting tissue. The button can be activated
by depressing the front or the side.
To Next Page
