3.5 Connection to ultrasonic generator
27
TB-0545PC/IC/FC, TB-0535PC/IC/FC, TB-0520IC, TB-0510IC
INSTRUCTION MANUAL
Ch.3
CAUTION
• Do not attempt to clean the contacts inside the transducer plug with a sharp object
such as the tips of tweezers. Also, when cleaning the contacts with a brush, do not
poke or rub the contacts with the metal tip on the bristles of the brush. Otherwise,
deformation or damage of the contact will cause conduction failure, making energy
delivery impossible.
• Be sure to fully insert the transducer plug securely. Otherwise, the unsecure
connection may result in unexpected disconnection of the transducer plug,
resulting in no output which could lead to potential bleeding.
 Connecting the THUNDERBEAT to the ultrasonic generator
 Disconnecting the THUNDERBEAT
Hold the ultrasonic generator with one hand and the transducer plug in the other hand, pull out
the transducer plug.
1 Confirm that the symbol 1 for THUNDERBEAT on the transducer plug and transducer
socket are identical.

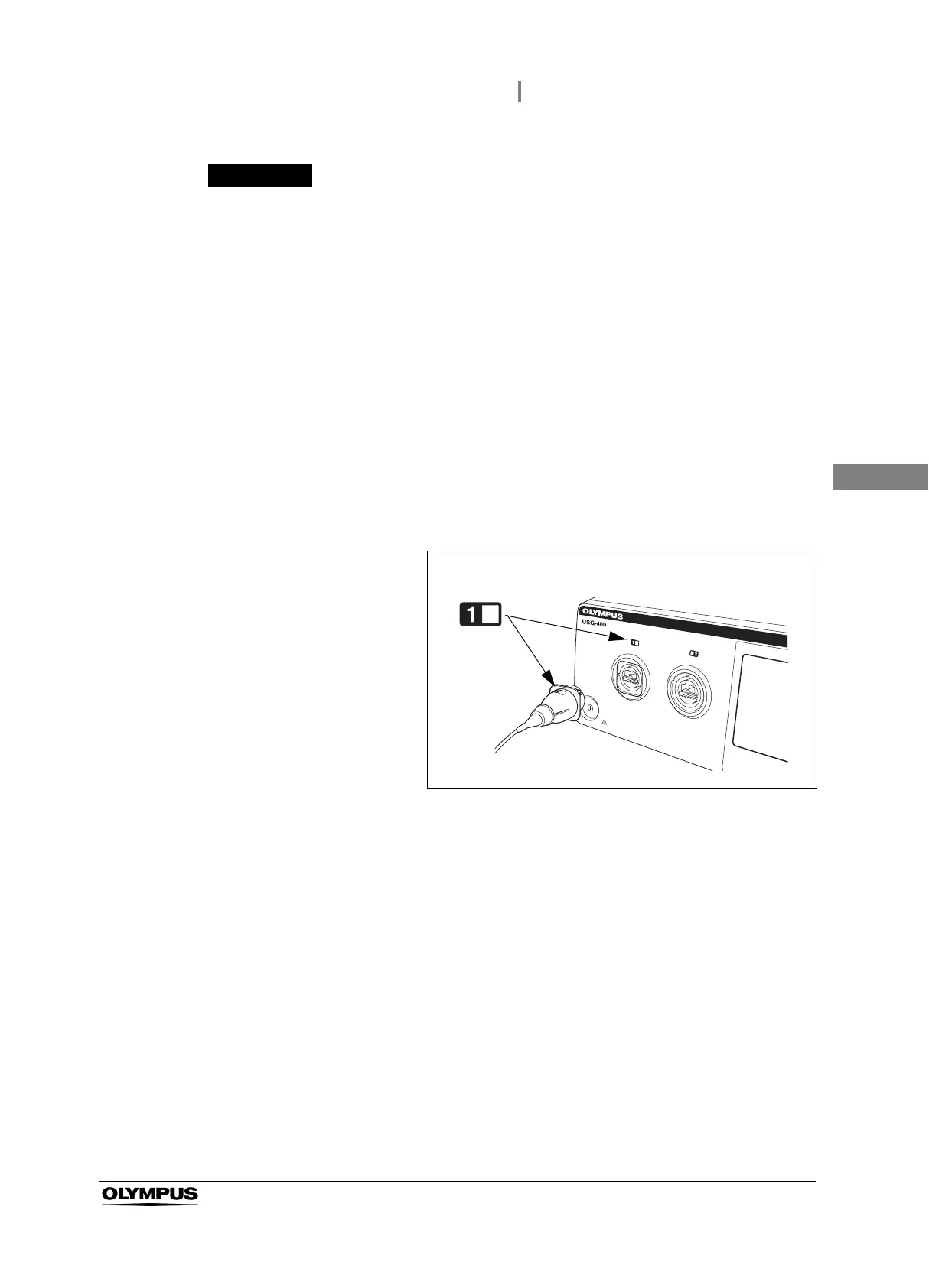

Figure 3.8
2 Fully insert the transducer plug into the transducer socket of the ultrasonic generator
until it is fully seated.
The symbols are identical.
