Omega Engineering FMA-1600A Series User Manual



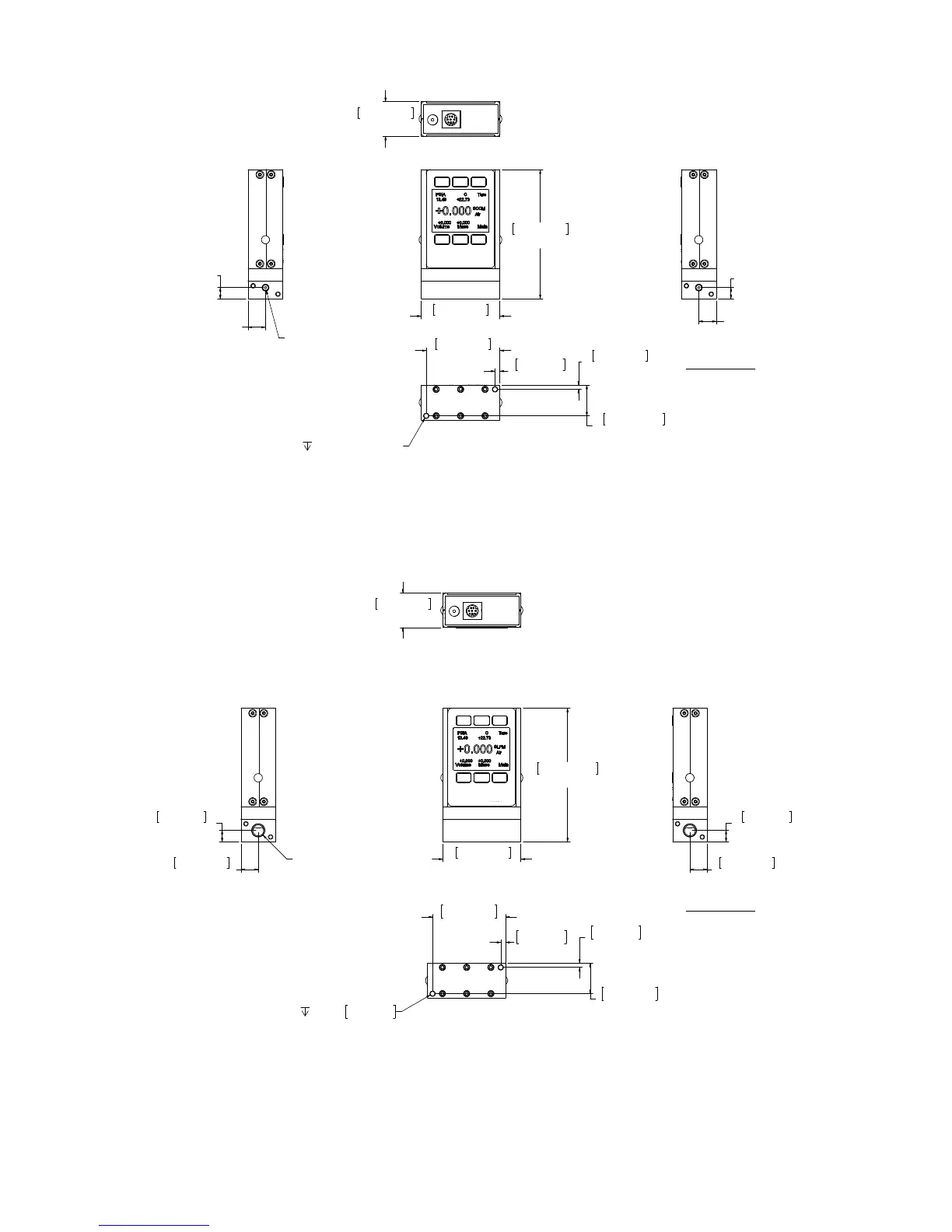

2.375in
60.33mm
3.897in
98.98mm
DATE
M-0.5SCCM-D-MSPEC
REV.
1
1/4/2016
[8.53mm]
.336in
.525in
[13.34mm]
1.050in
26.67mm
.925in
3.175mm
23.495mm
2.225in
56.52mm
.125in
.150in
3.81mm
2X 8-32 UNC .175in[4.45mm]
.525in
[13.34mm]
.336in
[8.53mm]
Both Sides
M5X0.8 (10-32 UNF)
1
M-20SLPM-D-MSPEC
1/4/2016
DATE
REV.
.525in
13.34mm
.350in
8.89mm
13.34mm
.525in
.350in
8.89mm
Both Sides
1/8 NPT
4.067in
103.30mm
2.375in
60.33mm
1.050in
26.67mm
23.50mm
.925in
.150in
3.81mm
2.225in
56.52mm
.125in
3.18mm
2X 8-32 UNC .350in 8.89mm
FMA-1600A
0 – 0.5 sccm
0 – 1 sccm
0 – 2 sccm
0 – 5 sccm
0 – 10 sccm
0 – 20 sccm
0 – 50 sccm
FMA-1600A
0 – 100 sccm
0 – 200 sccm
0 – 500 sccm
0 – 1 slpm
0 – 2 slpm
0 – 5 slpm
0 – 10 slpm
0 – 20 slpm
0.5 sccm to 50 sccm approximate shipping weight: 0.8 lb
100 sccm to 20 slpm approximate shipping weight: 1.0 lb

Omega Engineering FMA-1600A Series Specifications

General

Brand	Omega Engineering
Model	FMA-1600A Series
Category	Measuring Instruments
Language	English
