Omega CN8EPt User Manual

PLATINUM
TM
Series Controllers User’s Guide
M5451 Omega Engineering | www.omega.com
10
Wiring Instructions
Ethernet Communications Status
LEDs if EIP Option Installed
USB Connector (on side,
shown with cable stub)
8-Pin Power / Base Outputs Connector
10-Pin Input Connector
Ethernet Connector if EIP Option Installed
3. Wiring Instructions
3.1 Back Panel Connections

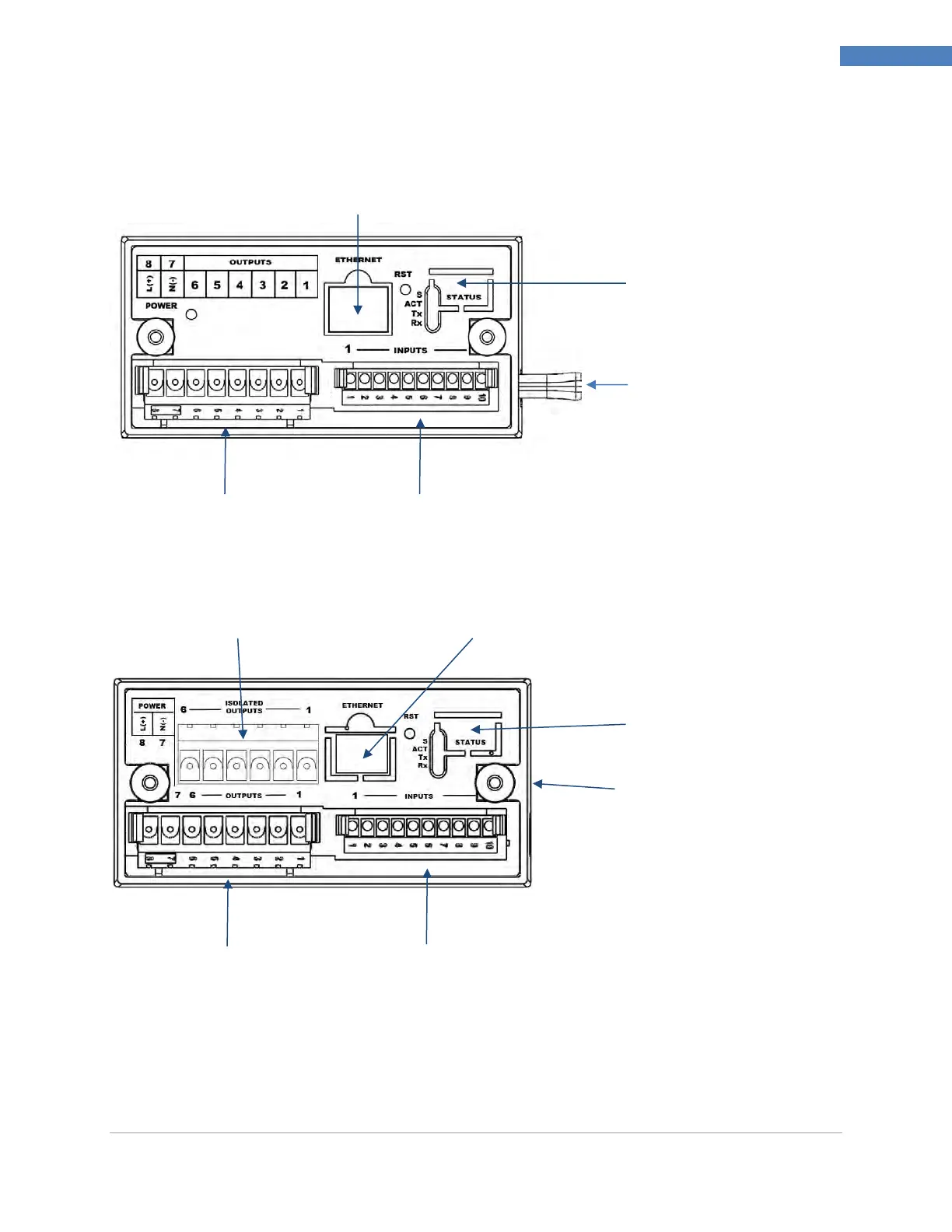

Figure 1 – CN8Pt, CN8DPt and CN8EPt Models: Back Panel Connections
(No Isolated Output Expansion Board Installed)
Figure 2 – CN8Pt, CN8DPt and CN8EPt Models: Back Panel Connections
(With Isolated Output Expansion Board)
10-Pin Input Connector
8-Pin Power / Base Outputs Connector
USB Connector (on
side, not visible here)
Ethernet Communications Status
LEDs if EIP Option Installed
Ethernet Connector if EIP Option Installed
Optional Isolated Output Expansion
Connector

Omega CN8EPt Specifications

General

Display	Dual 4-digit LED
Input Type	Thermocouple, RTD, Process
Output	Relay, SSR
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	0 to 50°C (32 to 122°F)
Protection	IP65 (Front Panel)
Control Mode	PID
