Brown/White :
This wire can be configured (Programmable feature
#
6), to honk the horn
in addition to the Brown wire operating the siren, or take over all of the
Siren’s functions SO THAT NO SIREN IS NECESSARY
Café/con lista Blanca:
Este cable se puede programar (función
#
6), a sonar el claxon en conjunto
al cable Café operar la Sirena, O TOMAR TODAS LA FUNCIONES DE LA
SIRENA PARAQUE NO HAGA FALTA INSTALAR SIRENA.

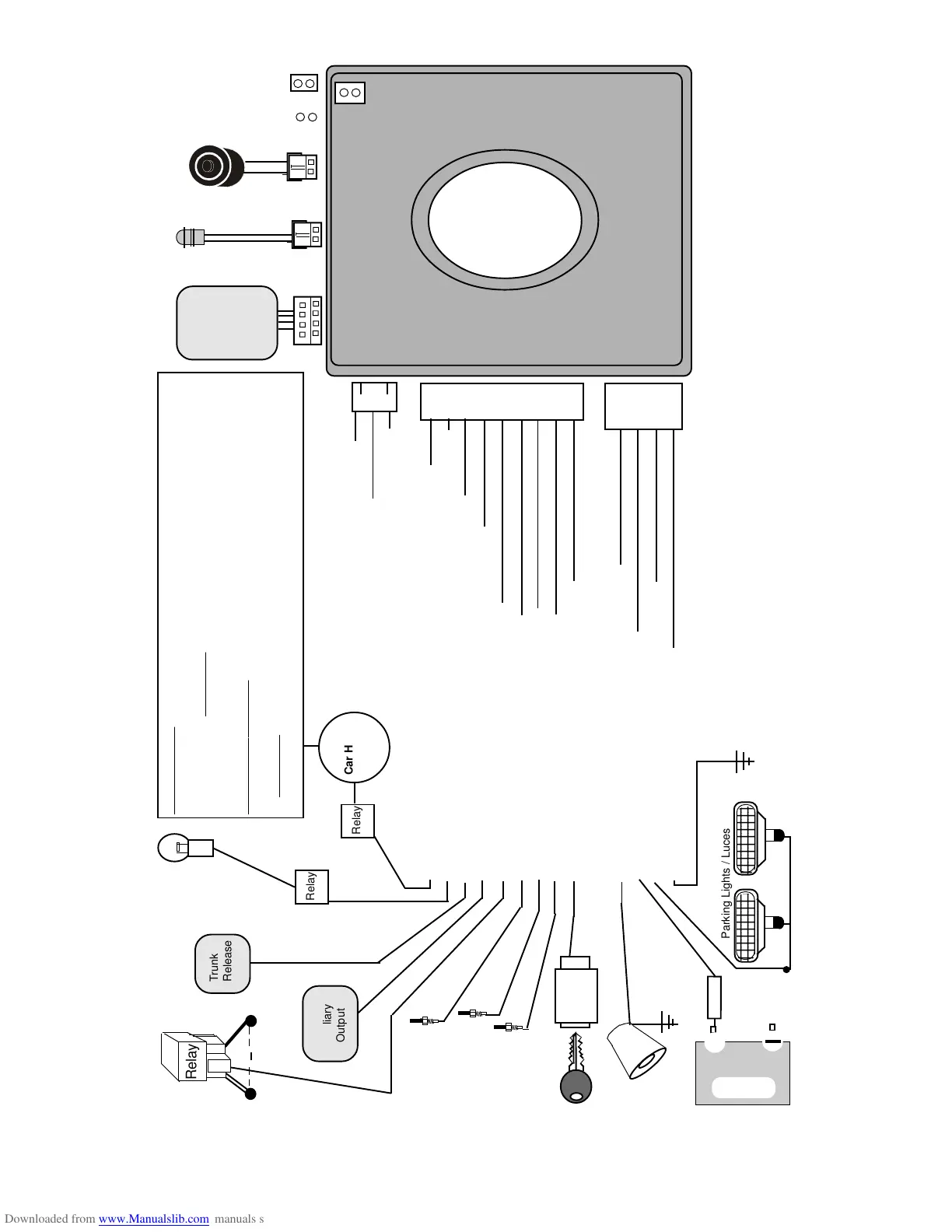

Brown/White - Café/Blanco = (-Horn Output, Salida claxon -)
Black/White - Negro/Blanco = (-Dome-Light , Salida luz de cabina-)
Grey - Gris = (-Auxiliary output, Segundo canal auxiliar-)
Pink - Rosado = (-3rd channel output, Tercer canal-)
Orange - Naranja = (-Starter Kill, Corte -)
Blue - Azul = (-Trigger Input, Disparo -)
Violet - Violeta = (+Door Input, Puerta +)
Green - Verde = (-Door Input, Puerta -)
Yellow - Amarillo = (+Accessory, Ignición +)
Brown - Café = (+Siren/Horn, +Sirena/Claxon)
Red - Rojo = (+12 Volts, +12 Voltios)
White - Blanco = (+Flashing Lights, +Luces)
Black - Negro = (-Ground, -Tierra)
Valet/Override Button
0.80
Sec
4.0
Sec
Door Lock Pulse Time Jumper
LED Status Indicator
Optional
Sensor
MUNDIAL-SSX
Green - Verde = (-Lock, -Cierre)
Red - Rojo = (+12 Volts)
Blue - Azul = (- Unlock, - Apertura)
Siren
Pin-Switch (-)
Pin-Switch (-)
Battery
Pin-Switch (+)
15 Amp
+
12345
12345
12345
12345
12345
12345
12345
12345
12345
12345
12345
12345
Parking Lights / Luces
12345
12345
12345
12345
12345
12345
12345
12345
12345
12345
12345
Relay
Trunk
Release
Relay
Relay
Car Horn /
Claxon
Dome-
Light
(-)
Auxiliary
Output
