Installation
4Installation
This section describes how to put the CIBANO 500 test system into operation. The CIBANO 500
operation is controlled by the Primary Test Manager software. Consequently, before operating
CIBANO 500, you must install Primary Test Manager and connect CIBANO 500 to a computer.
4.1 Connect CIBANO 500 to the computer
CIBANO 500 communicates with the computer through Ethernet interface. To connect CIBANO 500 to
the computer:
1. Connect the delivered Ethernet cable to the NETWORK socket on the CIBANO 500 side panel.
2. Connect the other end of the Ethernet cable to the Ethernet connector of your computer.
3. Check whether the safety dongels shipped with CIBANO 500 are plugged in and locked in the
SAFETY connectors on the side panel (see 3.2.2 "Side panel" on page 11).
4.2 Power up CIBANO 500
To power up CIBANO 500:
1. Connect the equipotential ground terminal of CIBANO 500 (see 3.2.2 "Side panel" on page 11) to
ground as close as possible to the operator.
2. Plug the power cable into the power socket on the CIBANO 500 side panel.
3. Plug the mains plug of the power cable into the power outlet.
4. Press the power switch on the CIBANO 500 side panel.
4.3 Install Primary Test Manager
For the minimum requirements your computer needs to run Primary Test Manager, see 2 "System
requirements" on page 8.
► To install Primary Test Manager, put the delivered Primary Test Manager DVD in the DVD drive of
your computer and follow the instructions on the screen.
4.4 Start Primary Test Manager and connect to
CIBANO 500
► To start Primary Test Manager, click Start on the task bar, and then click
OMICRON Primary Test Manager, or double-click the OMICRON Primary Test Manager icon
on the desktop.
► To connect to CIBANO 500, select the device from the list, and then click Connect.

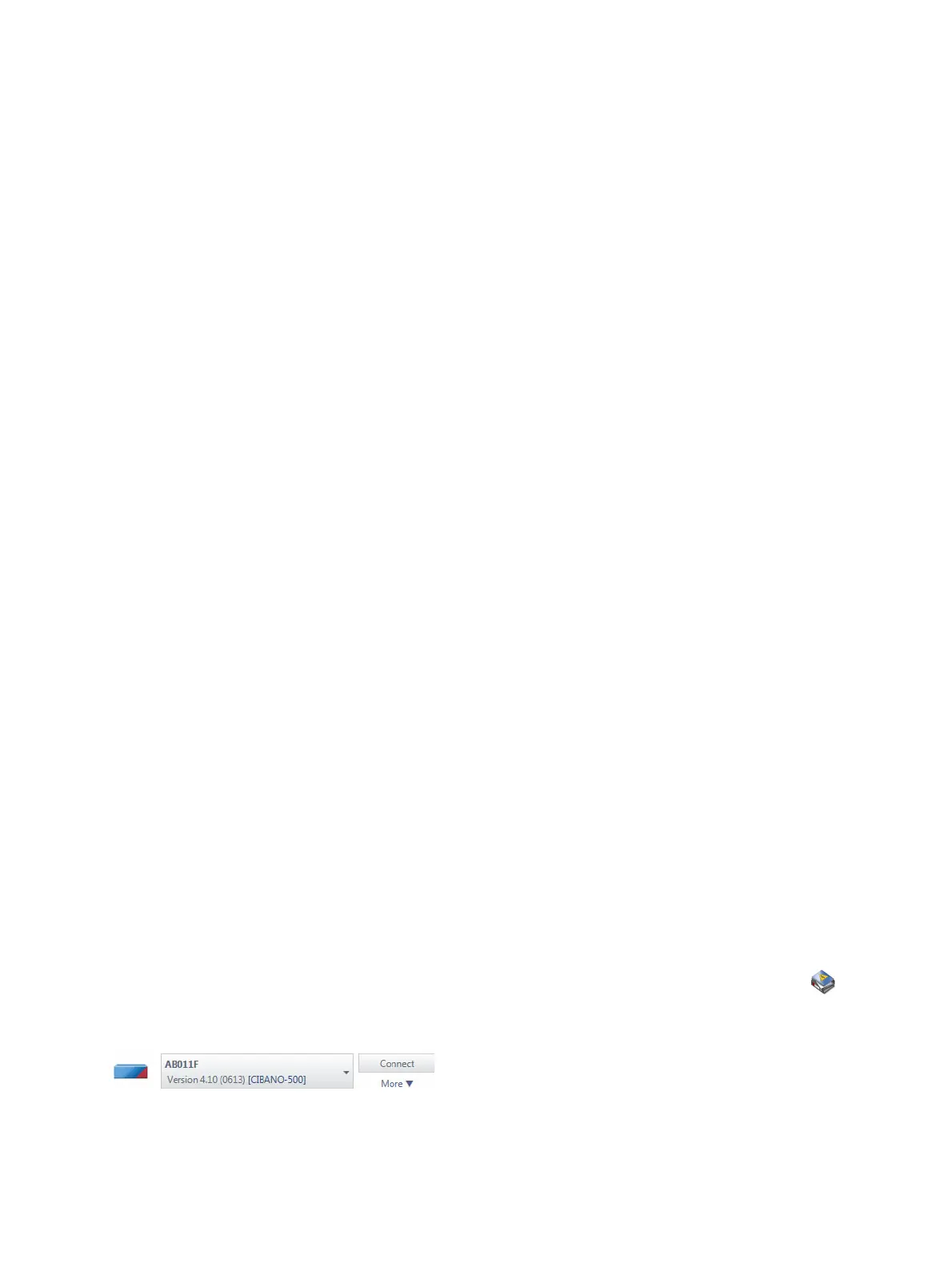

Figure 4-1: Connecting to CIBANO 500
