© OMICRON 2024 Page 22 of 25
Copy the R / X value from the second line into the R / X fields for the higher frequency (e.g. 70 Hz)
in the column for the according current loop (e.g. Z
L1-L3
for L1-L3) in the cable impedance report.

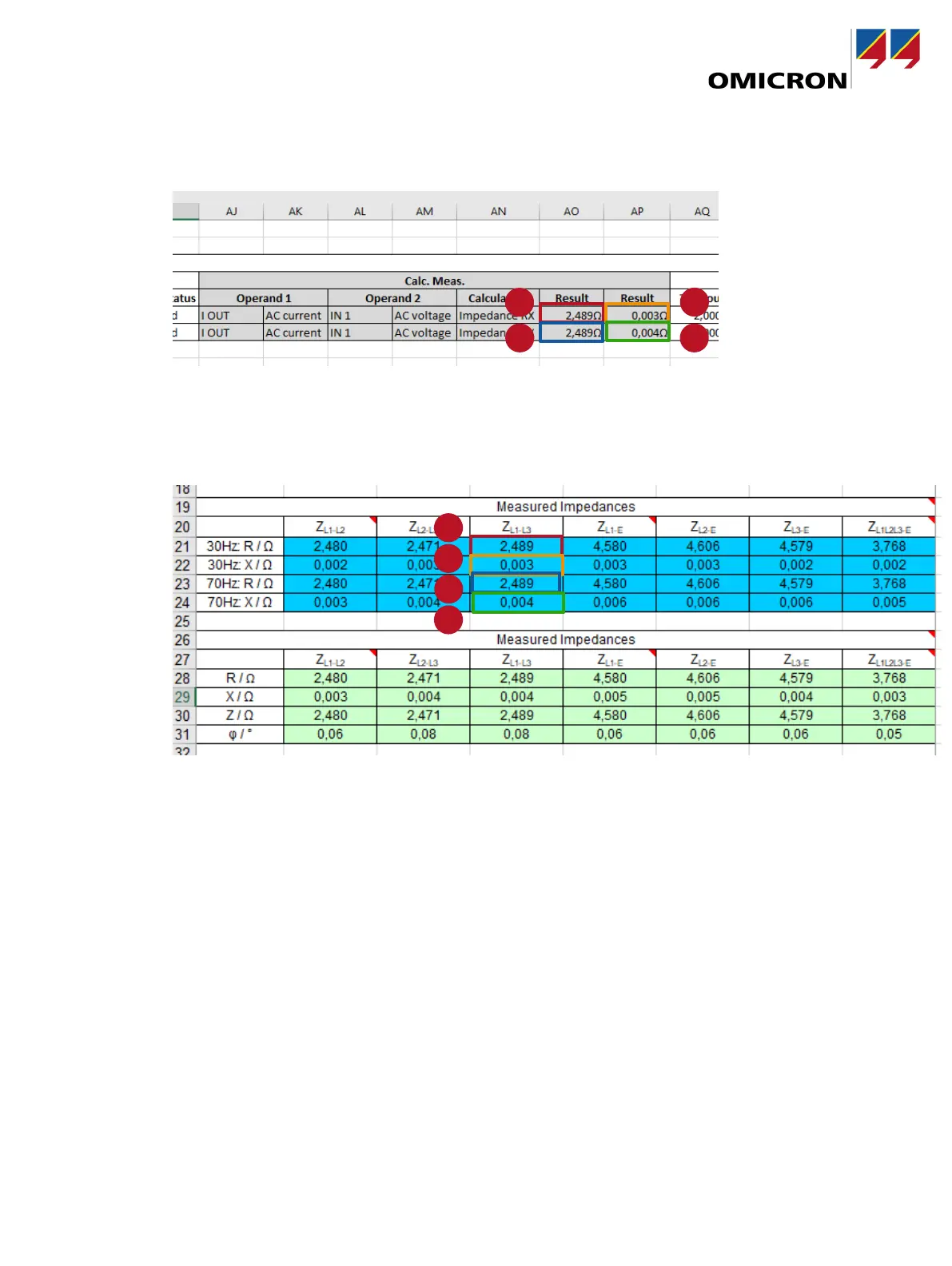

Figure 9: Result file of a single measurement loop
Figure 10: COMPANO Template for calculating the cable impedance
Repeat this for the result files of all seven measurement loops.
1
2
3
4
1
2
3
4
