4.4 Evaluation of Measurements

This application note comes with an Excel report spreadsheet, named COMPANO-Template-Cable-

Impedance-Measurement-2023-ENU.xlsm.

 Open the file COMPANO-Template-Cable-Impedance-Measurement-2023-ENU.xlsm

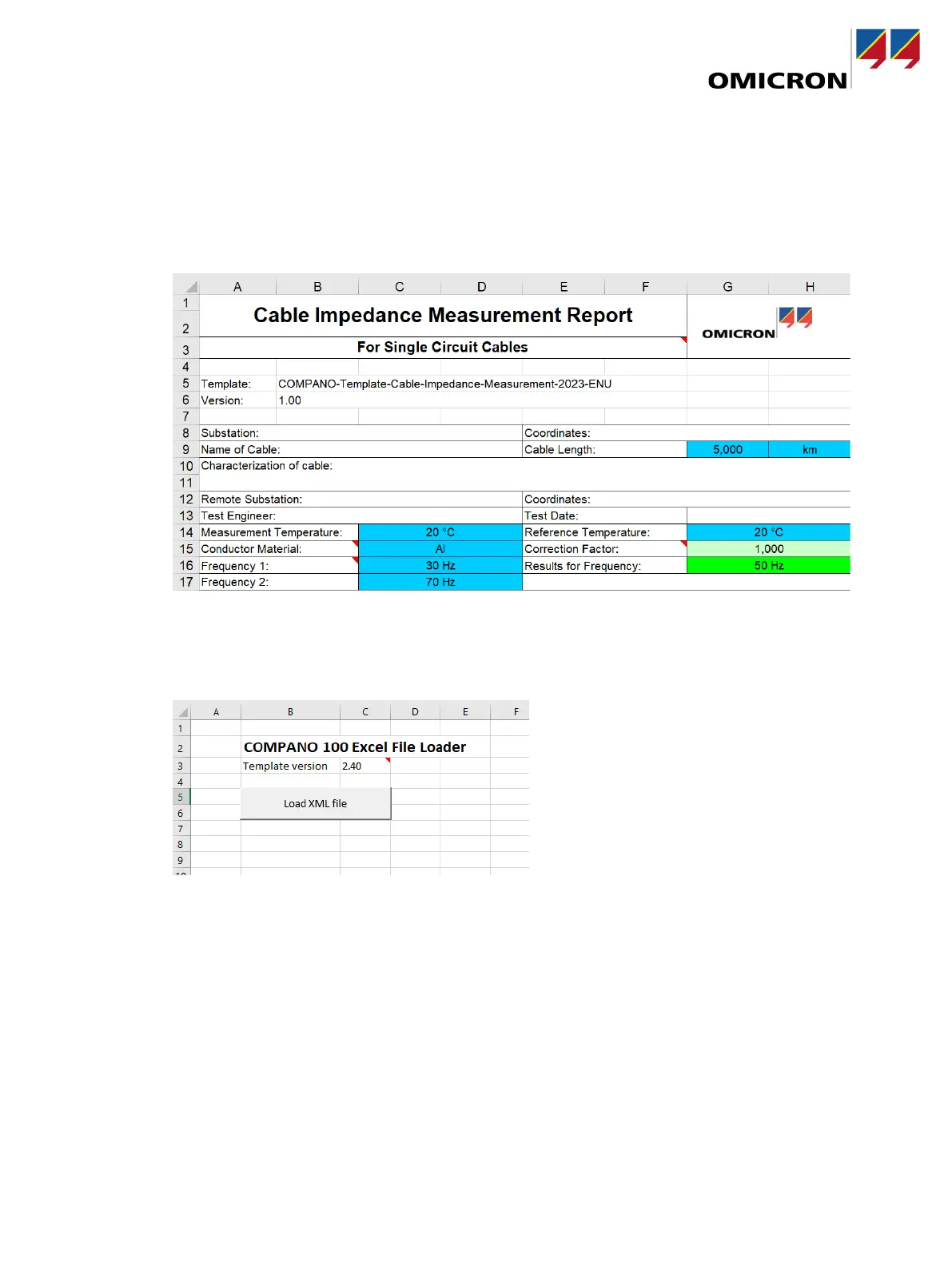

 Fill the blue fields, including cable length and used measurement frequencies (see Table 1).

 Open the COMPANO Excel File loader in Windows Start menu:

Start → OMICRON COMPANO 100 → COMPANO 100 Excel File Loader

Perform the following steps for each of the seven results files (see Table 2).

 Select the “Welcome” sheet

 Press “Load XML file”

 Load the according result file from the USB flash drive. They are stored in the

COMPANO_100_Reports folder.

E.g. L1-L3_COMPANO_100_2023-02-27_11.05.28.499.xml

 Select the “FLEX” sheet

 Copy the R / X value from the first line into the R / X fields with the lower frequency (e.g. 30 Hz) in

the column for the according current loop (e.g. Z

L1-L3

for L1-L3) in the cable impedance report.
