4.5 Results
The final results can be found on the lower half of the Cable Impedance Measurement Template.

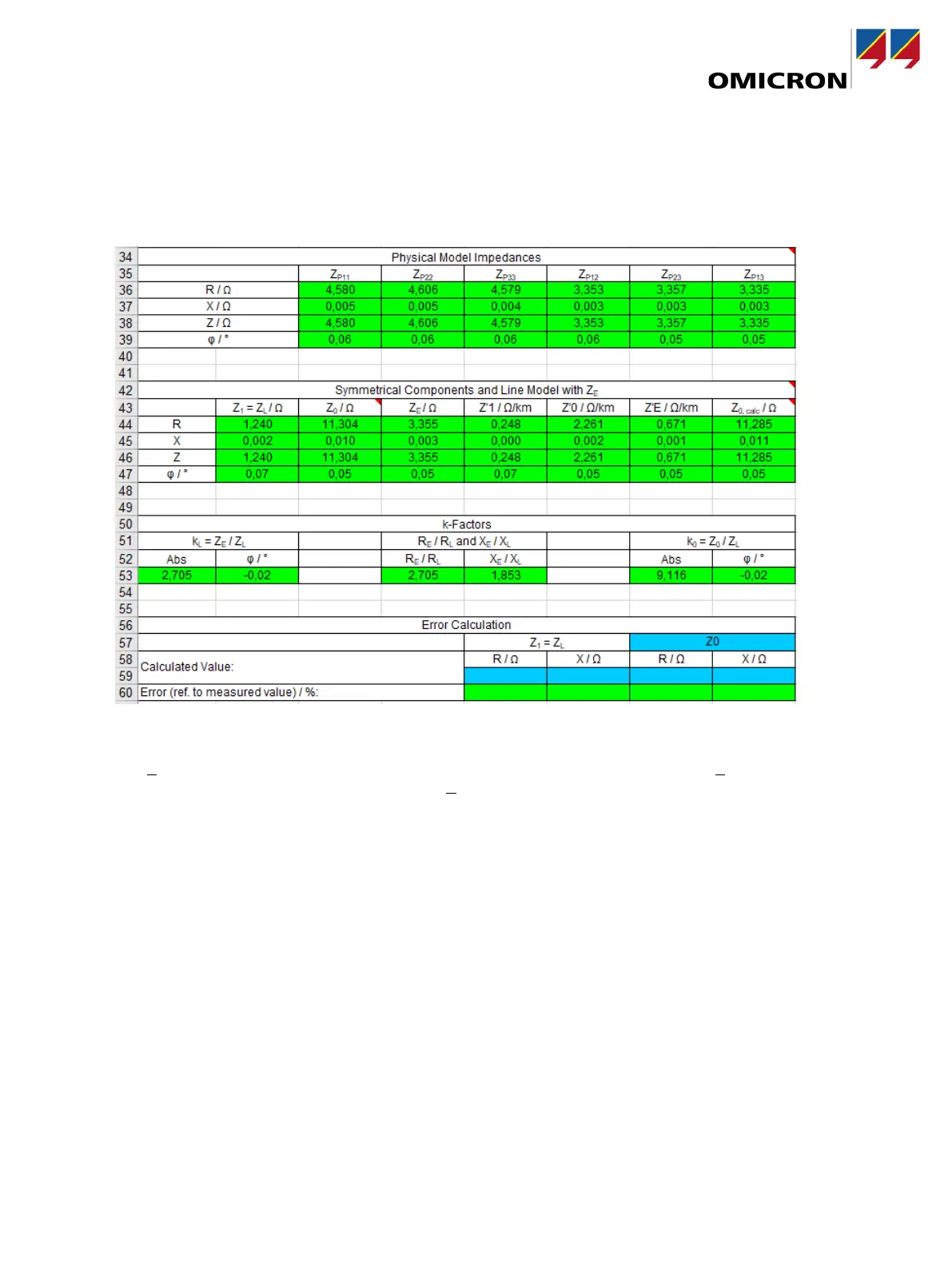

Figure 11:Results of the measurements in the COMPANO 100 Cable Impedance Template
The Z
0
impedance will be calculated from different measurements. The results in the Z
0
cells must be
approximately the same than the results in the Z
0,calc
cells, otherwise the measurement is considered invalid.
