In buildings, like substations, this depends on the geometry. Ensure that you are in sufficient distance and
not directly in front of the cabinet used for the test.
If the cable is accidentally energized during the test, the resulting high fault currents may lead to a high
force, which can cause a considerable mechanical movement of the CB GB1. Always ensure that you are
not near or direct in front of CB GB1 during the test, as shown in the two figures below.
Always use measurement leads with a least 10 m / 30 ft and a minimum distance of 5 m / 15 ft between CB
GB1 and COMPANO 100.
MV Switchgear C ab inets
COMPANO
100
I OUT
IN1
CB GB1
Dist ance ≥ 5 m / 15 ft

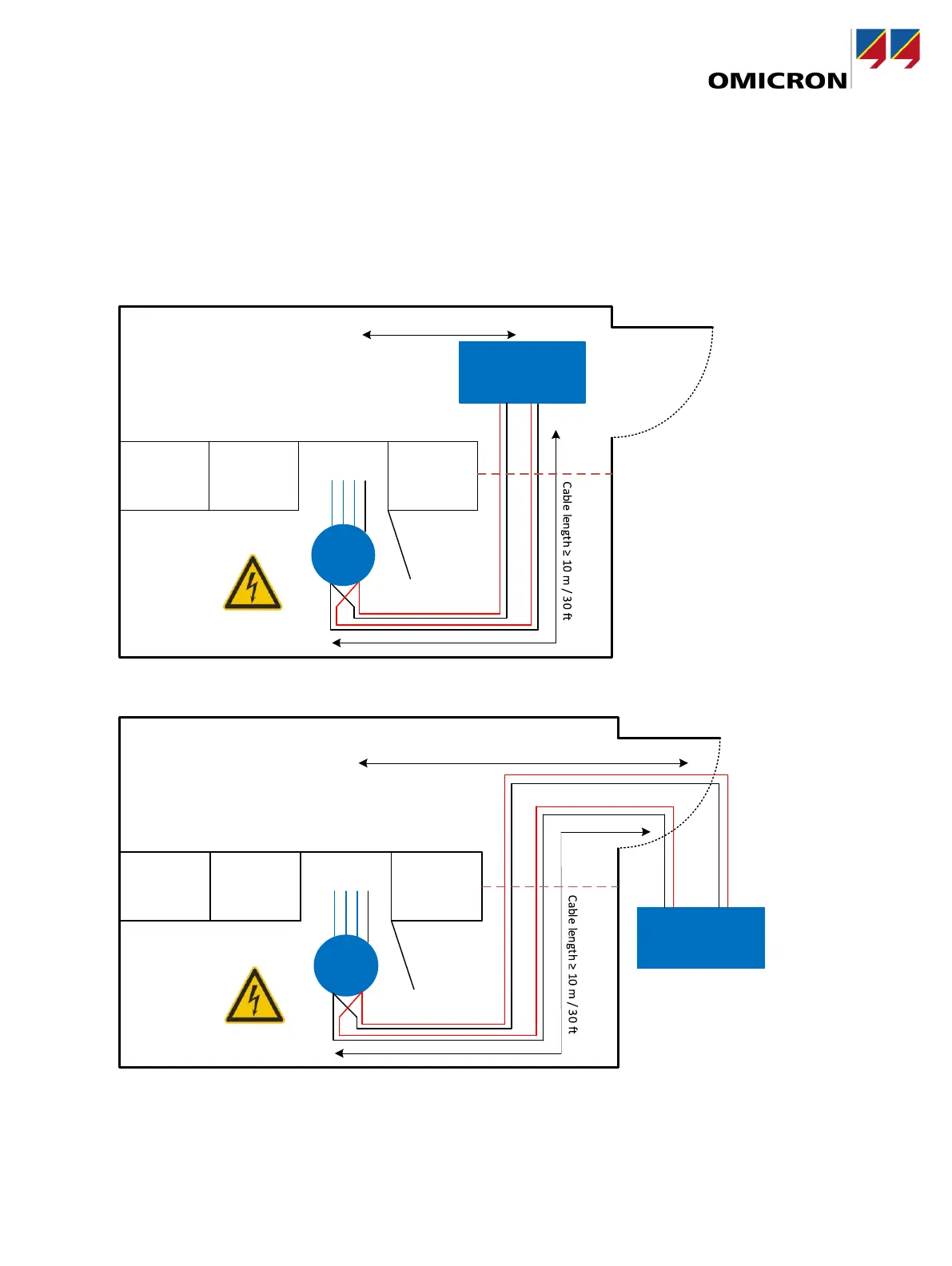

Figure 2: Possibility how to position COMPANO 100 outside the dangerous area.
CB GB1
MV Switchgear C ab inets
COMPANO
100
I OUT
IN1
Dist ance ≥ 5 m / 15 ft
Figure 3: Best way to position COMPANO 100 outside the dangerous area.
