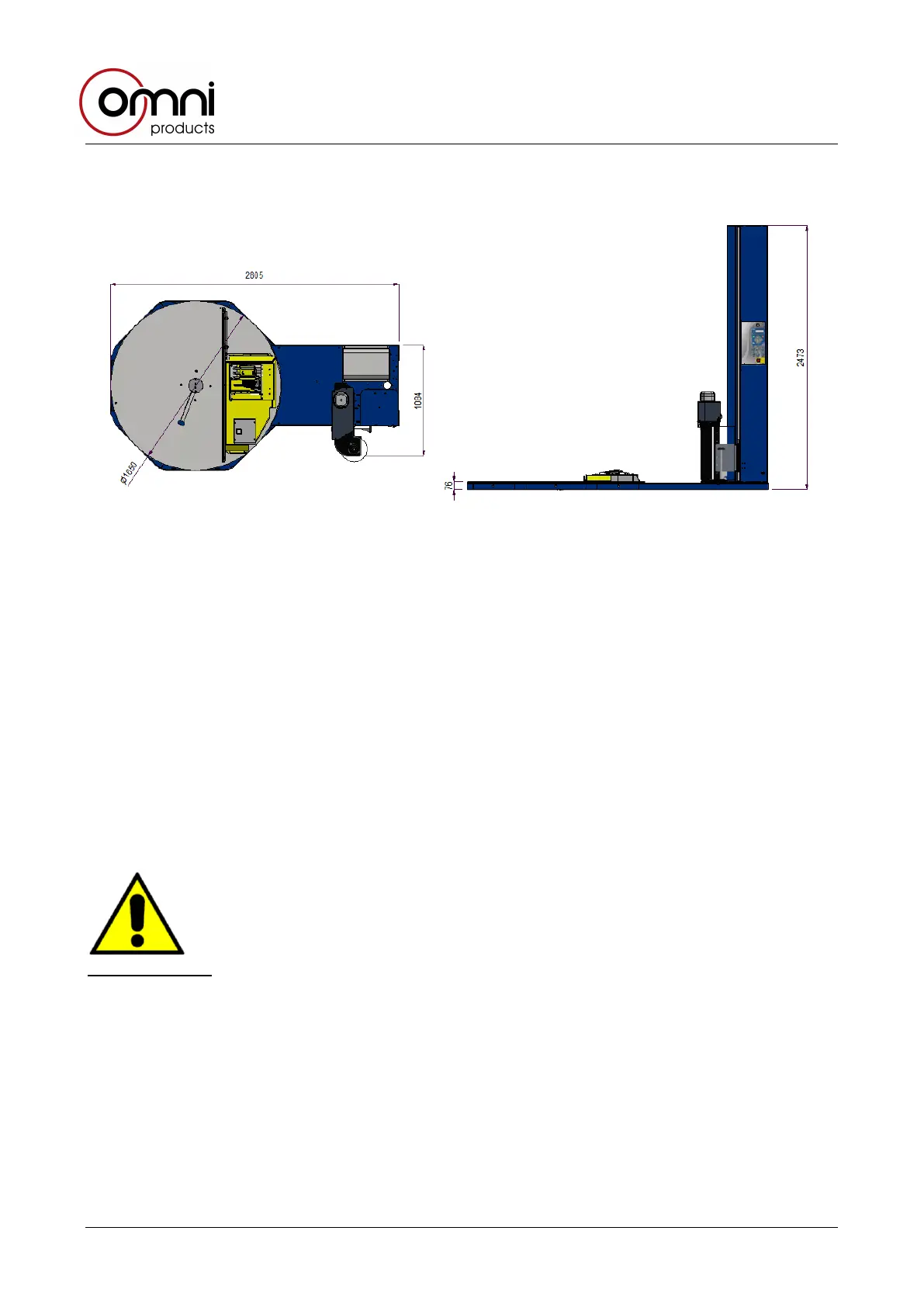

2.5 OVERALL DIMENSIONS OF THE MACHINE
The tabl
e diameter can be 1650 mm, 1800 mm or 2000 mm.
The s
tandard height of the machine is 2463 mm, according to the Client’s needs, the machine can
be 1963 mm, 3188 mm or 3463 mm high.
H=2463 (STANDARD) – H=1963 (OPTIONAL) – H=3188 (OPTIONAL) – H=3463 (OPTIONAL)
2.6 NECESSARY SPACE
The necessary space for using and maintaining the machine can be deduced from the dimensions
of the machine itself and from the need to load pallets onto the rotating platform. Under normal
usage and maintenance conditions it should therefore be possible to operate comfortably, without
any obstacles to accessing the machine, in any of its parts.
2.7 ELECTRICAL TOLERANCES OF THE MACHINE
Work
ing voltage: the electrical equipment is designed to operate a nominal voltage of 230 V.
Any
variations will compromise the life of the electrical equipment. If variations larger than the standard
values are foreseen, please contact the machine Builder
.
2.8 POWER EQUIPMENT
The label with the power equipment data is located in a readable position. On it there are written
the builder’s name, the symbol CE, the serial number, the supply voltage and the absorbed power
data, in accordance with regulations currently in force.
