4.7 PNEUMATIC CONNECTION
The pneumat
ic plant must be calibrated at a working pressure of 6 bar.
The phas
es of pneumatic connection should be as follows:

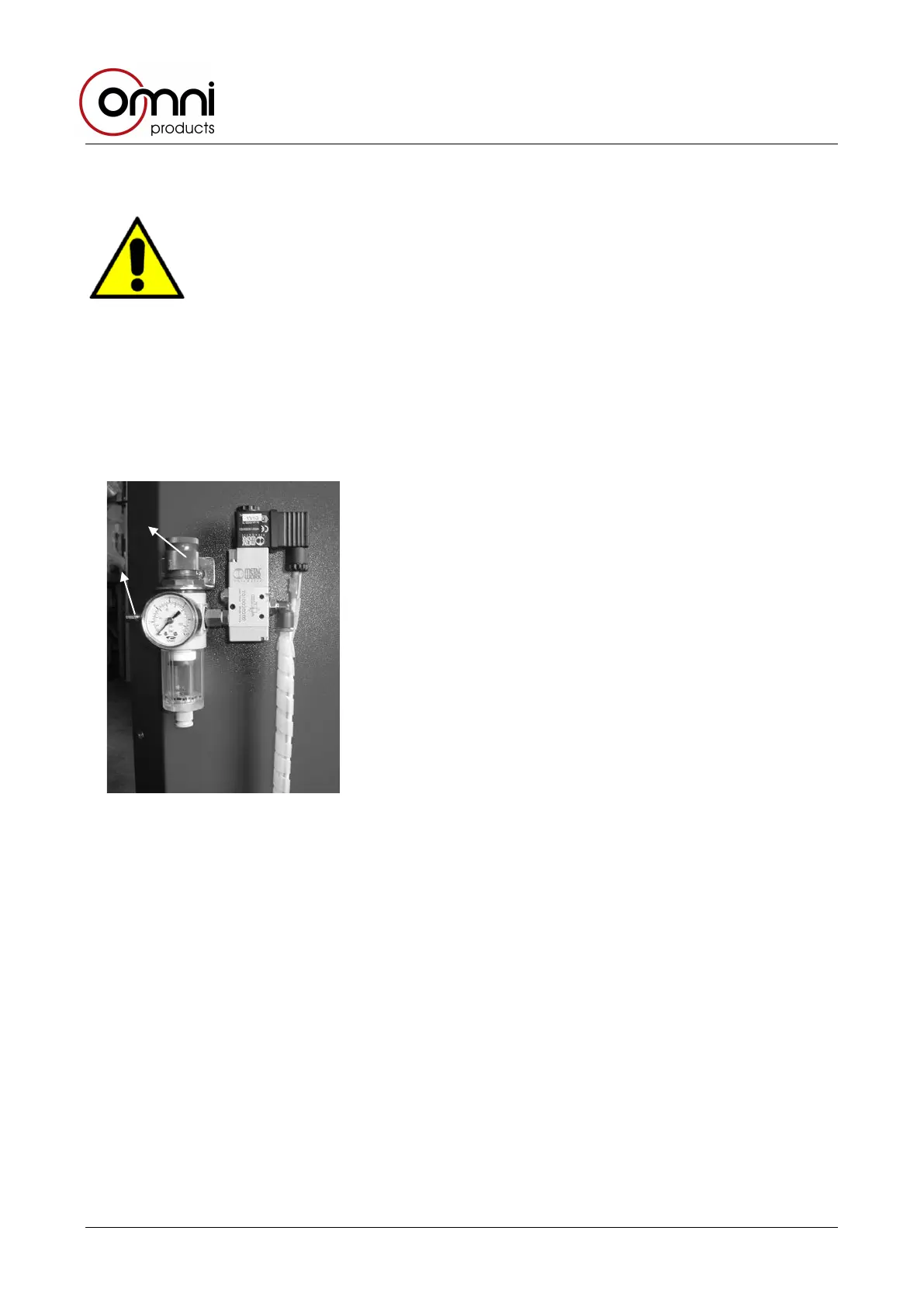

- connect the group to the plant’s main grid where indicated (1);
- check that the connection point is perfectly tightened;
- adjust machine pressure with the knob (2);
- set to 6 bar.
Connection to the pneumatic circuit is carried out through a
quick coupling joint located on the column.
Air pressure
must be
6 bar
.
2
1
