Never remove fixed guards while the machine is operating.
Never start the machine if any fixed guard is missing. Before starting the machine, make
sure that fixed repairs are properly installed.
Never
modify or replace fixed repairs with repairs in other materials, or with a different form
or function.

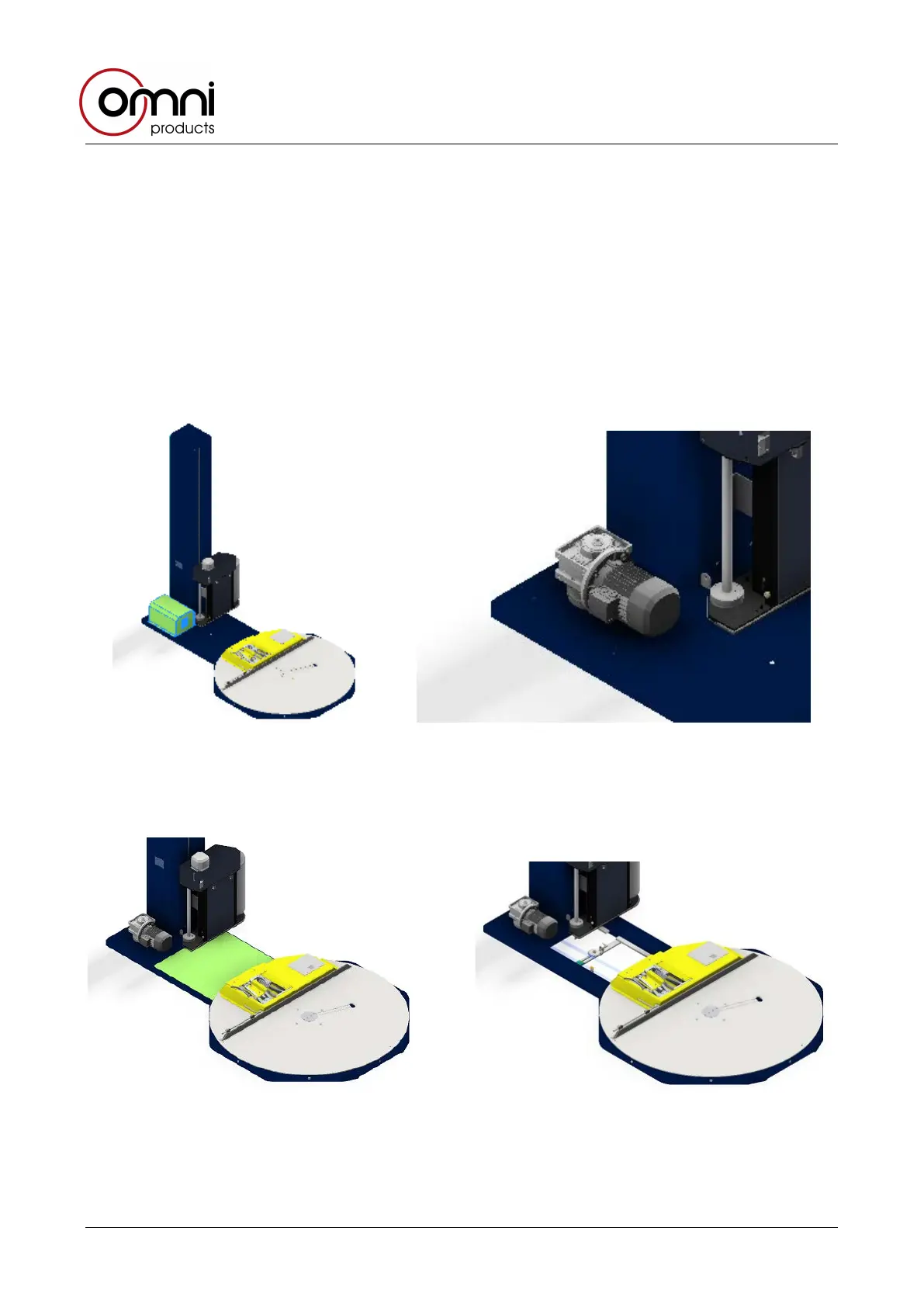

The t
able rotation electric motor is covered with a casing fixed to the machine frame. In the
following pictures power motor is shown with and without fixed guard.
The tabl
e rotation chain is protected by a plate fixed with screws to the frame. The following
pictures show where the chain is located showing it with and without fixed guard.
Omni SUPERPLUS EN IGM_REV6 27
