Omni Base User Manual
4
of 1
of 1 rating
42 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
2.5

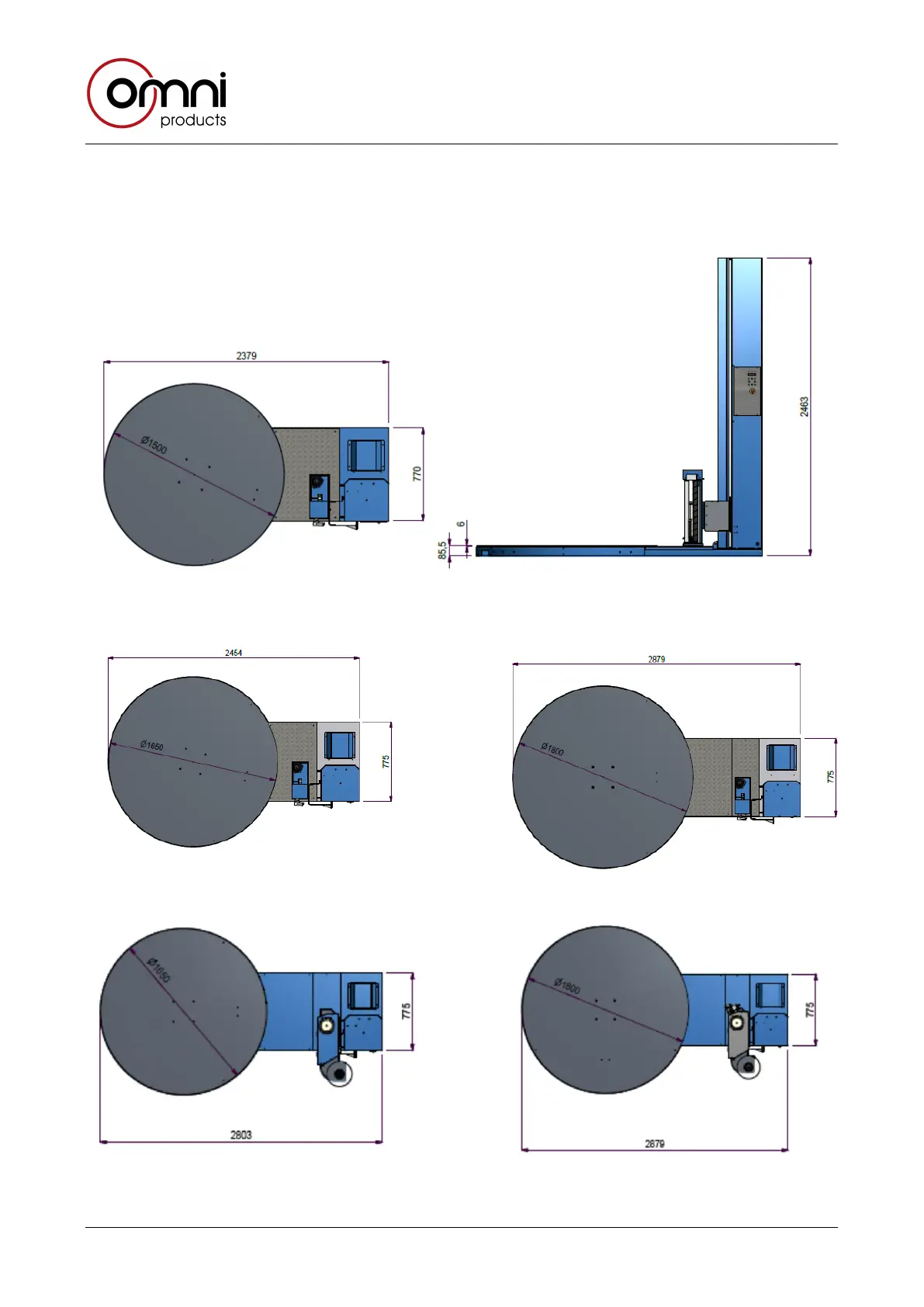

OVERALL DIMENS
IONS OF THE MACHINE
D
1500 table
with standard carriage
D 16
50 table
with standard carriage
D 18
00 table
with standard carriage
D 1650 table wi
th pre
-
stre
tc
h car
ri
age
D 1
80
0 table with pre
-
str
etc
h c
arr
iage
CE
C BASE
IGM
REV
13
22
18
20
Table of Contents
Default Chapter
3
Table of Contents
3
General Information
5
Aim of the Manual
5
Conserving the Manual
5
Builder
5
Certification
6
Warranty
6
Technical Assistance
6
Tasks to be Carried out by the Customer
6
Symbols and Terms
6
Machine Identification
7
General Safety Information
8
Description of the Machine
12
Operating Principle
12
Components of the Machine
12
Main Optional Groups
13
Accessories
15
Technical Data
15
Plates and Pictograms
16
Overall Dimensions of the Machine
19
Necessary Space
20
Electrical Tolerances of the Machine
20
Power Equipment
20
Electromagnetic Environment
20
Environmental Conditions
20
Sound Emissions
21
Vibrations
21
Gas, Dust and Fume Emissions
21
Safety Devices
22
Emergency Stop
22
Safety Devices
23
Protections and Fixed Repairs
24
Safe Use of the Machine
26
Correct Use
26
Inappropriate and Incorrect Use
27
Other Risks
27
Transport and Installation
29
Handling and Transport
29
Packaging
30
Stocking
30
Installation
31
Preliminary Inspections
33
Electrical Connection
33
Maintenance
35
General Information on Maintanance
35
Mechanical Parts Maintenance
36
Greasing
36
Chain Tensioning
37
Electrical Parts Maintenance
37
Extraordinary Maintenance
39
Cleaning
39
Demolition and Disposal
41
Disposal of Production Waste
41
Machine Demolition
41
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Omni Base and is the answer not in the manual?
Ask a question
Omni Base Specifications
General
Wrap Height Max
80"
Film Width
20"
Load Weight Max
4000 lbs
Load Capacity
4000 lb
Turntable Speed
12 RPM
Wrapping Speed
12 RPM
Related product manuals
Omni Cresco
40 pages
