Main Menu
Input/Output
Processing
Administrative
Lock Front Panel
About
In/Out Menu
Input
Output
LiveWire | Disable
Bypass | Process
Save IO Config
Load IO Config
Delete IO Config
Rename IO Config
Exit
Output Menu
Anlg Lvl A [-12 - +12 dBu]
Anlg Lvl B [-12 - +12 dBu]
AES Lvl A [-24 - 0 dBFS]
AES Lvl B [-24 - 0 dBFS]
Samp Rate [in | 48k | Ext]
LW Lvl A [-24 - 0 dBFS]
LW Lvl B [-24 - 0 dBFS]
Out Options
Tone Gen [On | Off]
Exit
Processing Menu
Preset:
QuickTweak
Save Preset
Delete Preset
Rename Preset
Exit
QuickTweak Menu
Compr Depth [-10 - +10%]
Density [-10 - +10%]
Clip Drive [-10 - +10%]
Lows [-10 - +10%]
Highs [-10 - +10%]
Exit
Administrative Menu
Contrast [0 - 100%]
Brightness [0 - 7]
Network Configuration
Reboot [confirm]
Security
Exit
Output Options Menu
ANA A polarity
ANA B polarity
AES A polarity
AES B polarity
LW A polarity
LW B polarity
Asym Mod
N LPF Freq
W LPF Freq
Tilt Eq
Tilt Freq
Exit
Net Config Menu
IP Addr [nnn.nnn.nnn.nnn]
Subnet [nnn.nnn.nnn.nnn]
Gateway [nnn.nnn.nnn.nnn]
Exit
For more info about QuickTweak,
see Processing Chapter

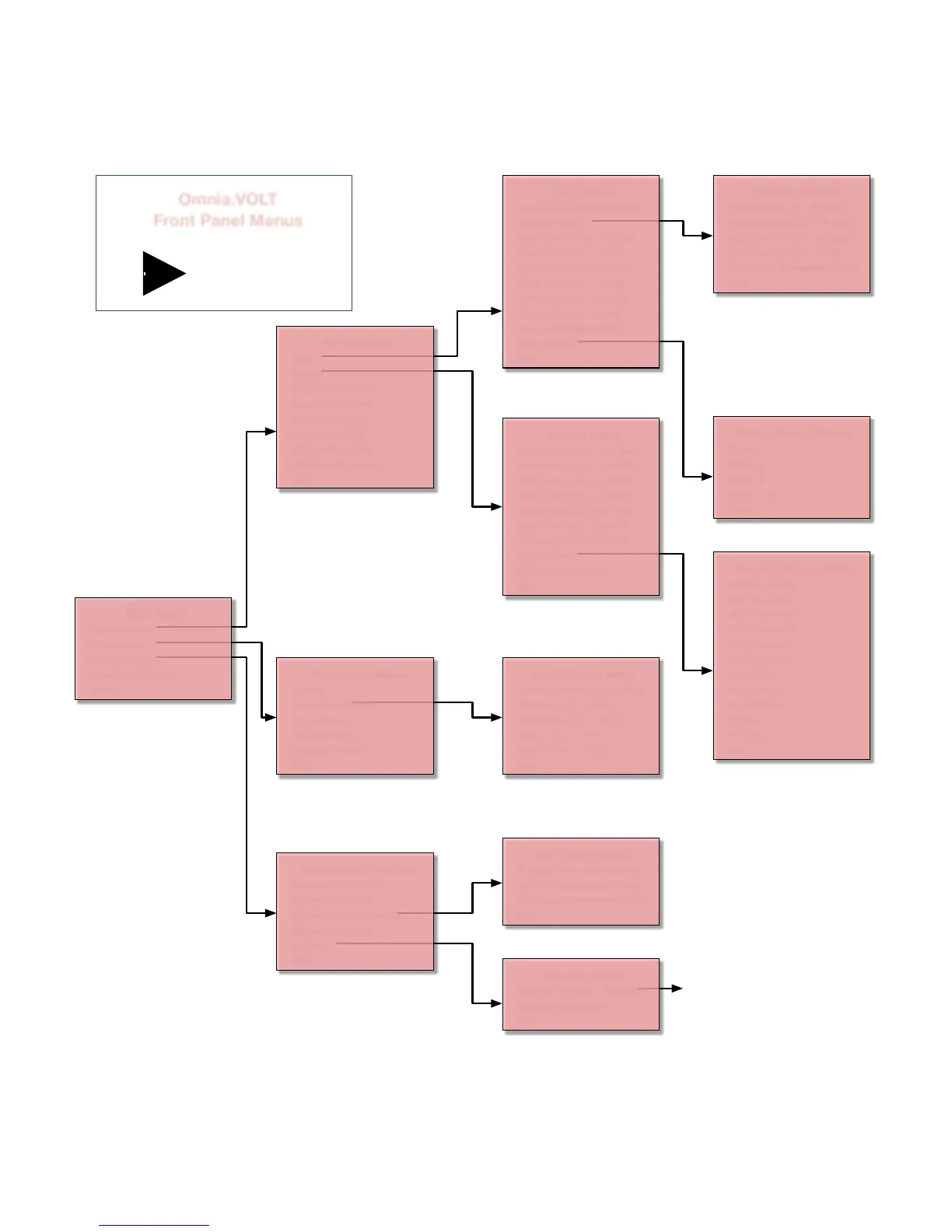

Omnia.VOLT
Front Panel Menus
CORE
DSP
AM version 1.1
Mono Mode Choices
Stereo
Mono L
Mono R
Mono L+R
Swap
Failover Choices
Failover time [0 - 60 sec]
Fail back time [.5 - 30 sec]
Abs Thresh [-60 - -24 dB]
Rel Thresh [-36 - -3 dB]
Fover Src [Ana|AES|Livew]
Exit
Failover Choices include time to
recognize “no audio” and
“restored audio”, an absolute
failure trigger level, and a relative
difference trigger between main
and alternate sources.
Input Menu
Input Src [Ana|AES|Livew]
Failover Opts
Anlg Level [-12 - +12 dB]
Right Trim [-3 - +3 dB]
AES Level [-12 - +12 dB]
Right Trim [-3 - +3 dB]
LW Level [-12 - +12 dB]
Right Trim [-3 - +3 dB]
Invert [None|Both|L|R]
Mono Mode
Exit
Enables operational control via Web
Security Menu
Remote [enable | disable]
Change Password
Exit
