Enables operational control via Web
Enables composite level control via Web
Main Menu
Stereo Generator
Discrete I/O
Administrative
Lock Front Panel
In/Out Menu
Input
Output
LiveWire | Disable
Bypass | Process
Save IO Config
Load IO Config
Delete IO Config
Rename IO Config
Exit
Output Menu
Anlg Level [-12 - +12 dBu]
Right Trim [-3 - +3 dB]
AES Level [-24 - 0 dBFS]
Right Trim [-3 - +3 dB]
Samp Rate [in | 48k | Ext]
LW Level [-24 - 0 dBFS]
Right Trim [-3 - +3 dB]
Analog De-Emph [on|o]
AES De-Emph [on|o]
LW De-Emph [on|o]
H/P De-Emph [on|o]
Exit
Stereo Gen Menu
SG Config [select by name]
Adjust SG
Save SG Config
Delete SG Config
Rename SG Config
Exit
Administrative Menu
Contrast [0 - 100%]
Brightness [0 - 7]
Network Configuration
Reboot [confirm]
Security
Exit
Net Config Menu
IP Addr [nnn.nnn.nnn.nnn]
Subnet [nnn.nnn.nnn.nnn]
Gateway [nnn.nnn.nnn.nnn]
Exit
Security Menu
Remote [enable | disable]
RemComp*[enable|disable]
Change Password
Exit

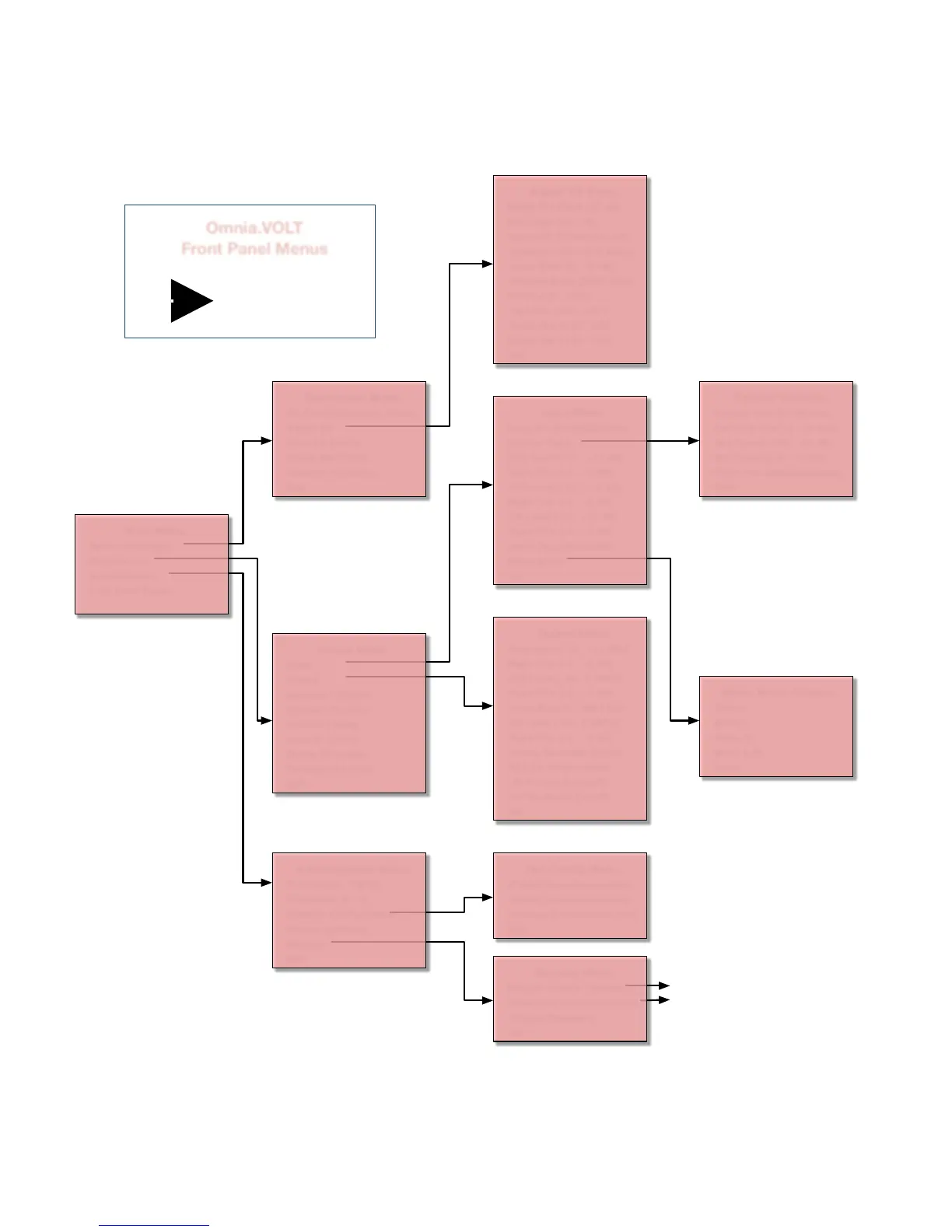

Omnia.VOLT
Front Panel Menus
CORE
DSP
Stereo Generator
version 1.1
Mono Mode Choices
Stereo
Mono L
Mono R
Mono L+R
Swap
Failover Choices
Failover time [0 - 60 sec]
Fail back time [.5 - 30 sec]
Abs Thresh [-60 - -24 dB]
Rel Thresh [-36 - -3 dB]
Fover Src [Ana|AES|Livew]
Exit
Failover Choices include time
to recognize “no audio” and
“restored audio”, an absolute
failure trigger level, and a
relative dierence trigger
between main and alternate
sources.
Input Menu
Input Src [Ana|AES|Livew]
Failover Opts
Anlg Level [-12 - +12 dB]
Right Trim [-3 - +3 dB]
AES Level [-12 - +12 dB]
Right Trim [-3 - +3 dB]
LW Level [-12 - +12 dB]
Right Trim [-3 - +3 dB]
Invert [None|Both|L|R]
Mono Mode
Exit
Adjust SG Menu
Emph Std [75µS | 50 µS]
Pre-emph [on | o]
Input LPF [15 kHz on | o]
Separation [St |-3|-6| Mono]
Comp Drive [0 - +6 dB]
Sidebnd Mode [DSB | SSB]
Pilot Lvl [0 - 12%]
Pilot Phs [-32 - +32°]
Comp Out #1 [0 - 10V]
Comp Our #2 [0 - 10V]
Exit
Comp Drive is fully distortion-cancelled
Composite Clipper drive level
LCDMapSG1.1.pdf
