3-8 Drawers
Removal Procedure
OmniTT/AnesthesiaTT Installation and Service Guide/67-2024 Rev D © 2010 Omnicell, Inc.
5. Remove the cable clamp and disconnect the cable.

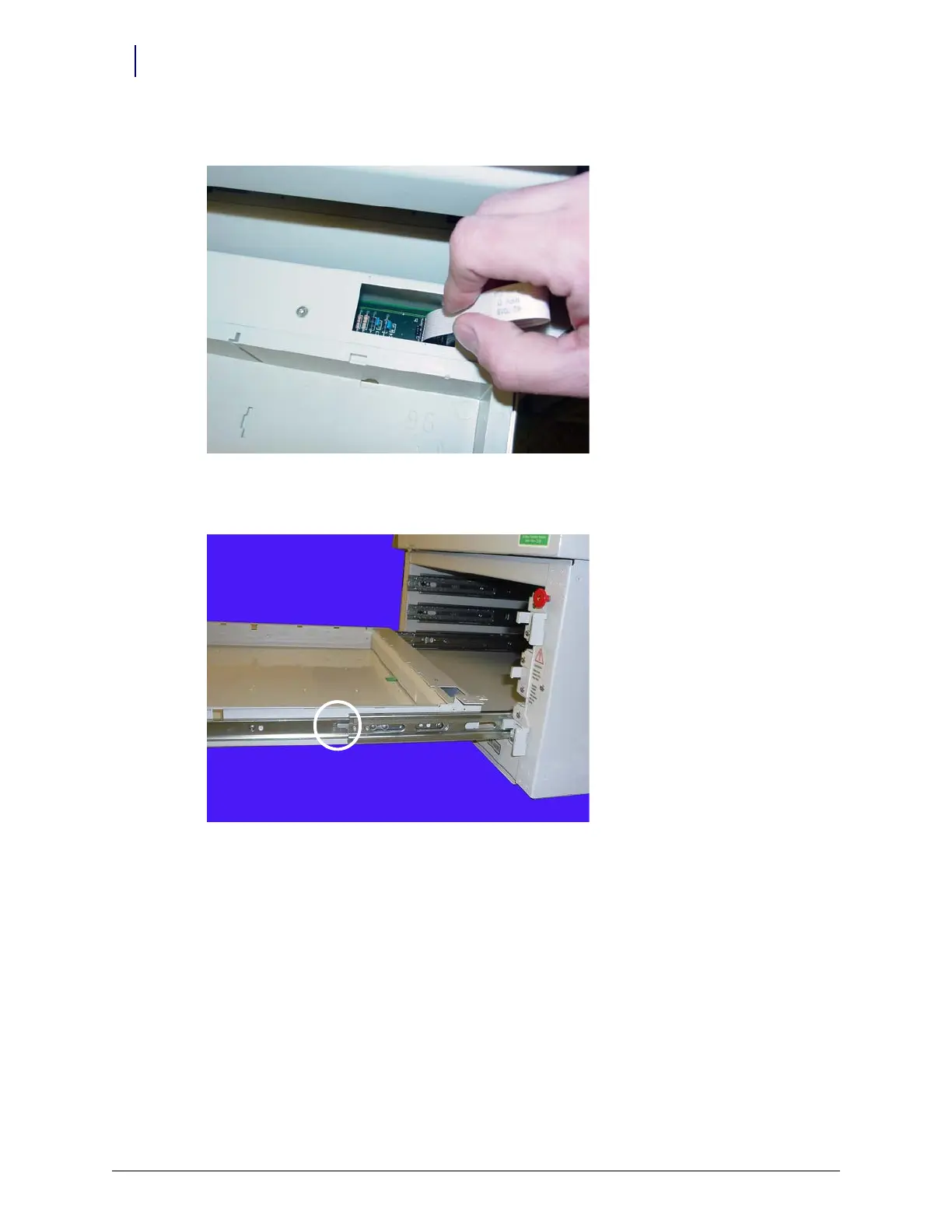

Figure 3-10. Remove the controller cable
6. Push the release levers on either side of the drawer up or down to release the drawer.
Figure 3-11. Push the release levers to release the drawer
Remove the pharmacy drawer from the module.
