00053693.DOC, Version 1.0
20/28

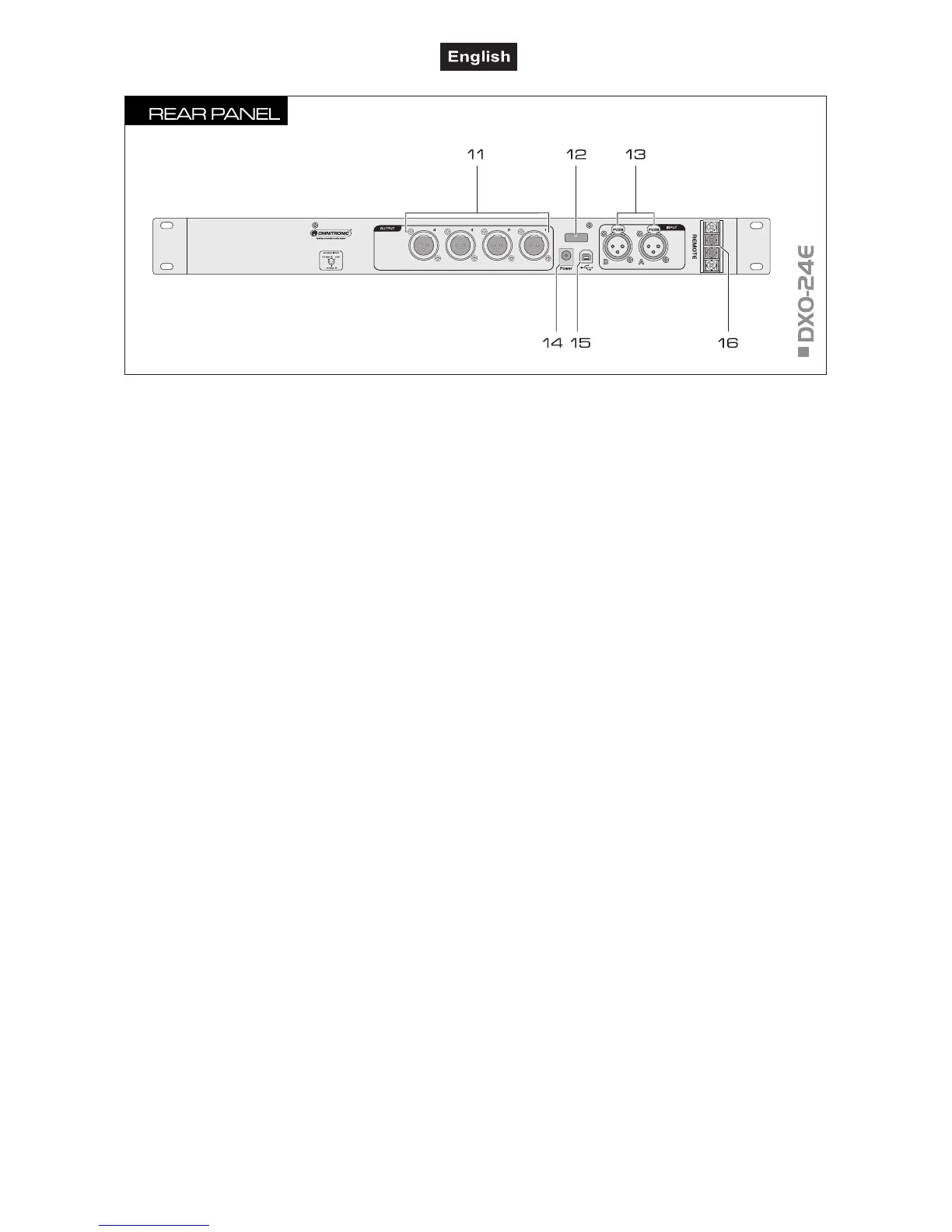

USB port
USB port (type B) for connecting a PC. The supplied
software allows convenient control of the crossover via a
computer, i.e. presets can be stored, transfered and
managed.
16 Screw terminals
Screw terminals for connecting an external control unit.
Analog line outputs 1 to 4
Balanced XLR jacks for connecting PA amplifiers.
12 Strain relief
13 Analog line inputs channel A and B
Balanced XLR jacks for connecting the signal source
(e.g. preamplifier, mixer).
14 Power input
Connect the supplied power unit here.
